LCALD6 : 6" Lumen Cannon Pendant/Ceiling Mount 1100lm - 6000lm (10W-58W)

6" Lumen Cannon Pendant/Ceiling Mount 1100lm - 6000lm (10W-58W) 6" Lumen Cannon Pendant/Ceiling Mount 1100lm - 6000lm (10W-58W)
6" Lumen Cannon Pendant/Ceiling Mount 1100lm - 6000lm (10W-58W)
6" Lumen Cannon Pendant/Ceiling Mount 1100lm - 6000lm (10W-58W) 6" Lumen Cannon Pendant/Ceiling Mount 1100lm - 6000lm (10W-58W) 6" Lumen Cannon Pendant/Ceiling Mount 1100lm - 6000lm (10W-58W) 6" Lumen Cannon Pendant/Ceiling Mount 1100lm - 6000lm (10W-58W) 6" Lumen Cannon Pendant/Ceiling Mount 1100lm - 6000lm (10W-58W) 6" Lumen Cannon Pendant/Ceiling Mount 1100lm - 6000lm (10W-58W) 6" Lumen Cannon Pendant/Ceiling Mount 1100lm - 6000lm (10W-58W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

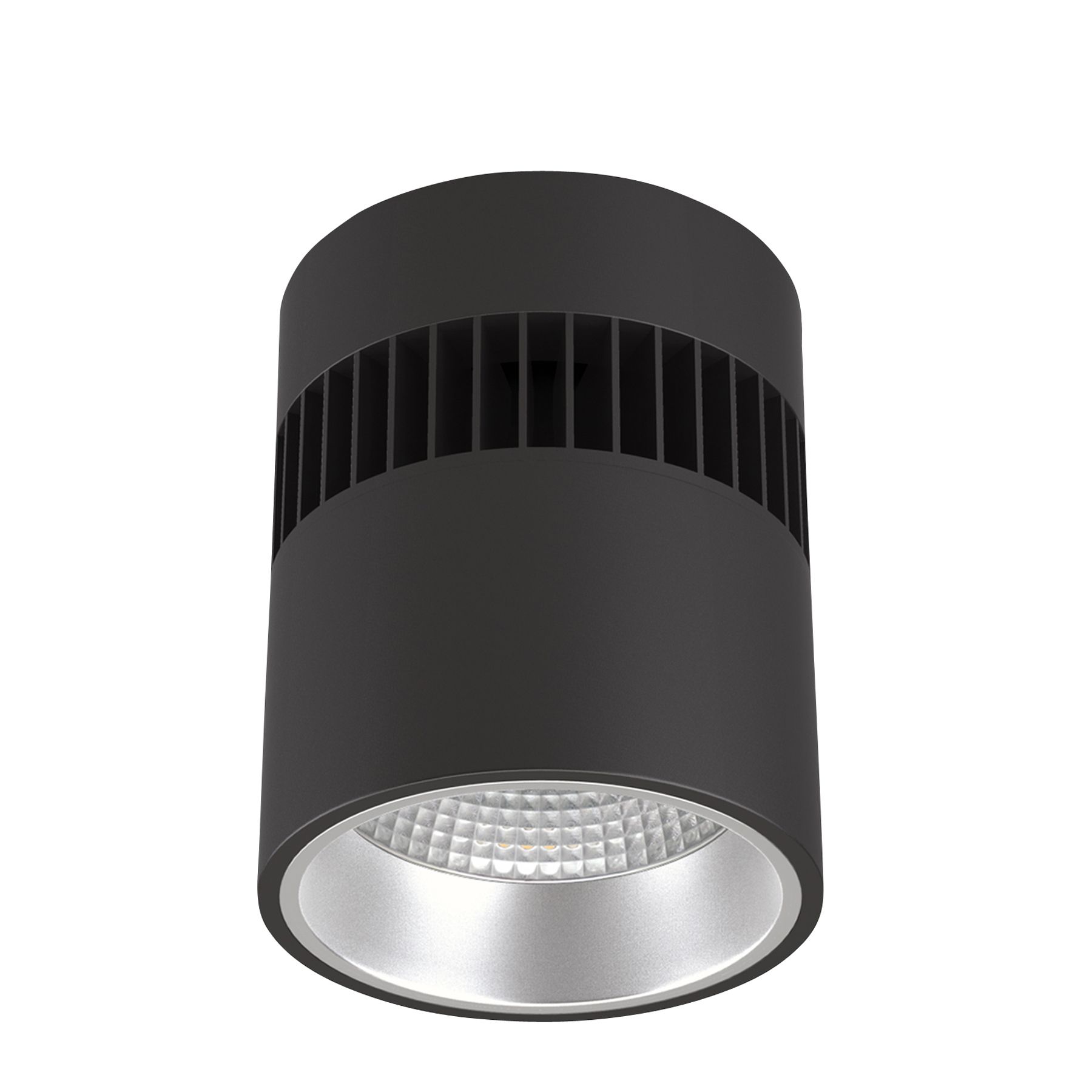

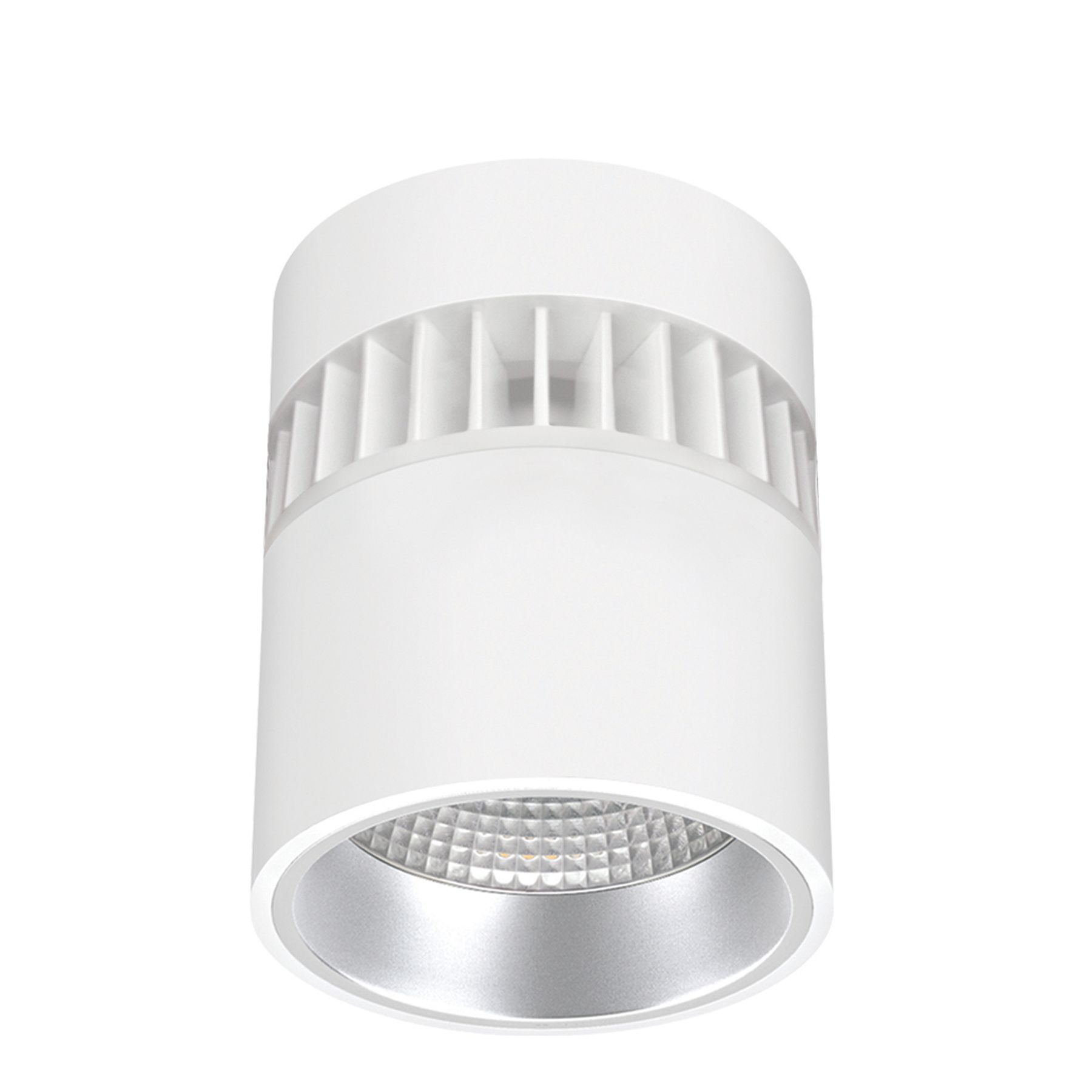

The Lumen Cannon LCALD6 is an architectural-grade cylinder surface mount LED downlight cylinder that combines energy efficiency with powerful lumen output. The luminaire is perfect for atriums, lobbies, and other public spaces with medium to high ceilings.

Benefits

  • 120V/277V Input Standard, 347V Available
  • Exclusive UniDim™ Universal LED Dimming Option Works with 0-10V,
    ELV and Incandescent Controls
  • 1% Dimming available with 120VAC, 0-10V, DALI, DMX AND Lutron Ecosystem
  • Uplight Option with 120° Beam Spread
  • Wide spectrum of Color Temperatures
  • Sturdy Steel Fixture Housing, <8lbs
  • Pendant mounting available for flat and sloped ceilings
  • Suitable for dry locations
  • Multiple Wireless Control Options

Available Features
?

  • Emergency
  • ETL Listed
  • US Assembled
  • Sloped Ceiling
  • Ambient Lighting
  • Downlight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 Lumens are nominal delivered lumens. See Photometry page for exact values.
2 Special Order. Minimum order quantity (MOQ), extended lead time may apply. Consult Factory.
3 (UE-DEC) & (UE-DHL) not available for (550) lumen package.
4 Uplight is for pendant option and is Triac/ELV dimming only. Only available in 3000k,3500k,4000k 90 CRI.
 Uplight to match corresponding downlight color temperature.
5 (1) Blank: 3000K, 80CRI, not available with (350) or (450) lumen package. (2) -T27: 2700K, 80CRI not available with (101), (151), (210) or (320). (3) -T27-C97: 2700K, 97CRI not available with (550).
  (4) -T35: 3500K, 80CRI not available with (350), (450), or (550). (5) -T40: 4000K, 80CRI not available with (550).
6 Integral Emergency (EM) not available with (550).
7 Integral Emergency (EM) is only available with (Blank), (UE-D10), & (UE-D10P1) dimming options.
8 Integral Emergency (EM) not compatible with uplight option (-LU10).

347 Input with 0-10V available. Consult Factory for details and lead time.
Energy Efficient Chip-On-Board (COB) Singular LED Light source provides for smooth uniform light output, eliminating the multiple shadow effect seen by multiple LED source products.
Binned with 3-Step MacAdam Ellipses as recommended by Ansi Standard. Available in 2700k, 3000k, 3500k, 4000k, 5000k.
Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply.Consult Factory.

Dimming Diagrams
