LCALD8 : 8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W)

8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W) 8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W)
8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W)
8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W) 8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W) 8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W) 8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W) 8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W) 8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W) 8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W) 8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W) 8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W) 8" Lumen Cannon Pendant Architectural Downlight 2900lm - 16000lm (28W-160W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

Architectural-grade cylinder pendant LED downlight housing combines energy efficiency with powerful lumen output. Perfect for public spaces that have high ceilings.

Benefits

  • 120V/277V Input Standard, 347V Available, Consult Factory
  • UniDim™ Universal LED Dimming Option Works with 0-10V, ELV and Incandescent Controls
  • Fixture Housing, <12lbs
  • Wide spectrum of Color Temperatures and CRI

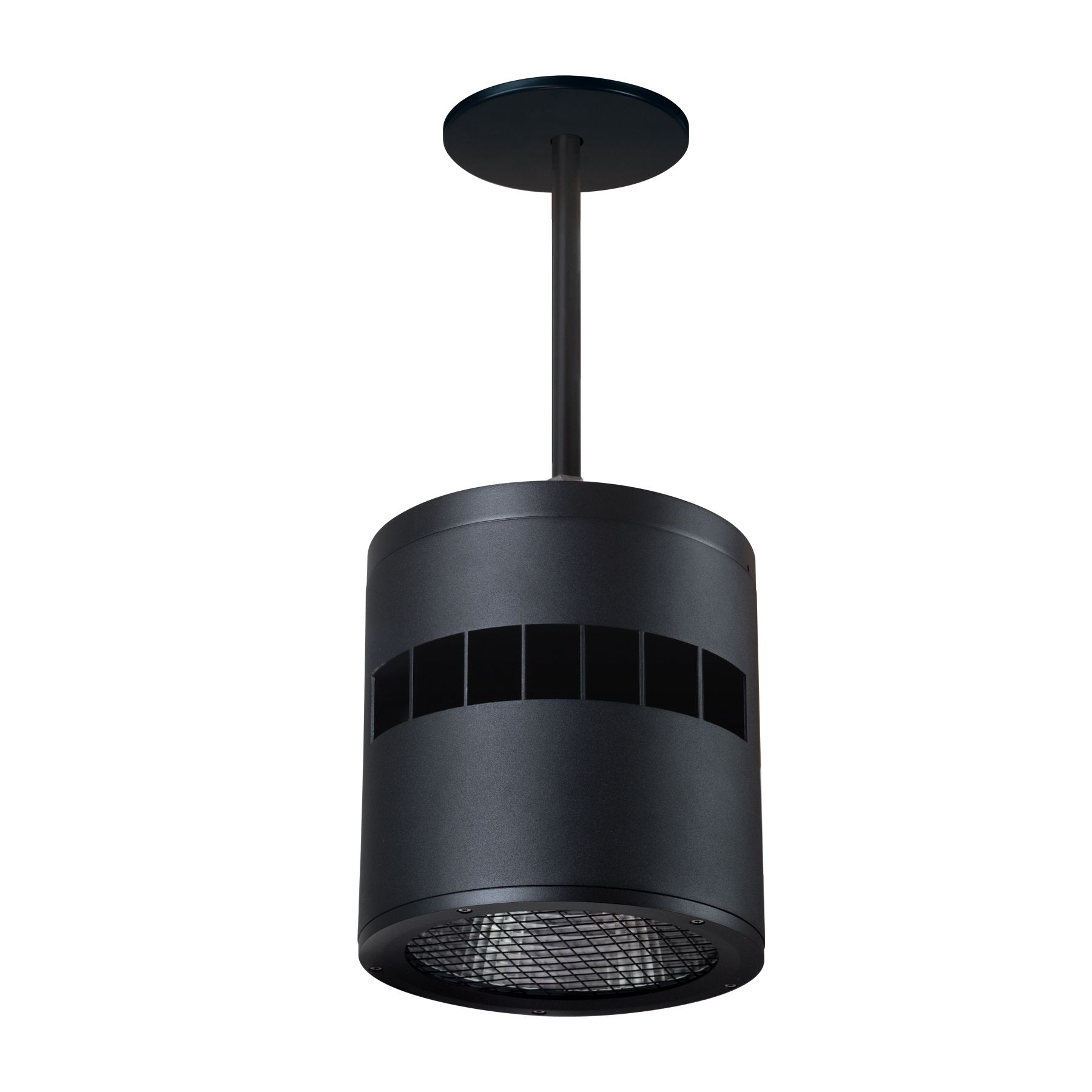

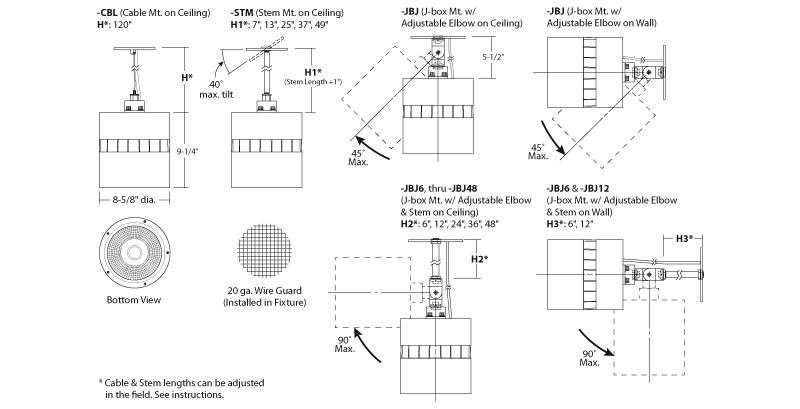

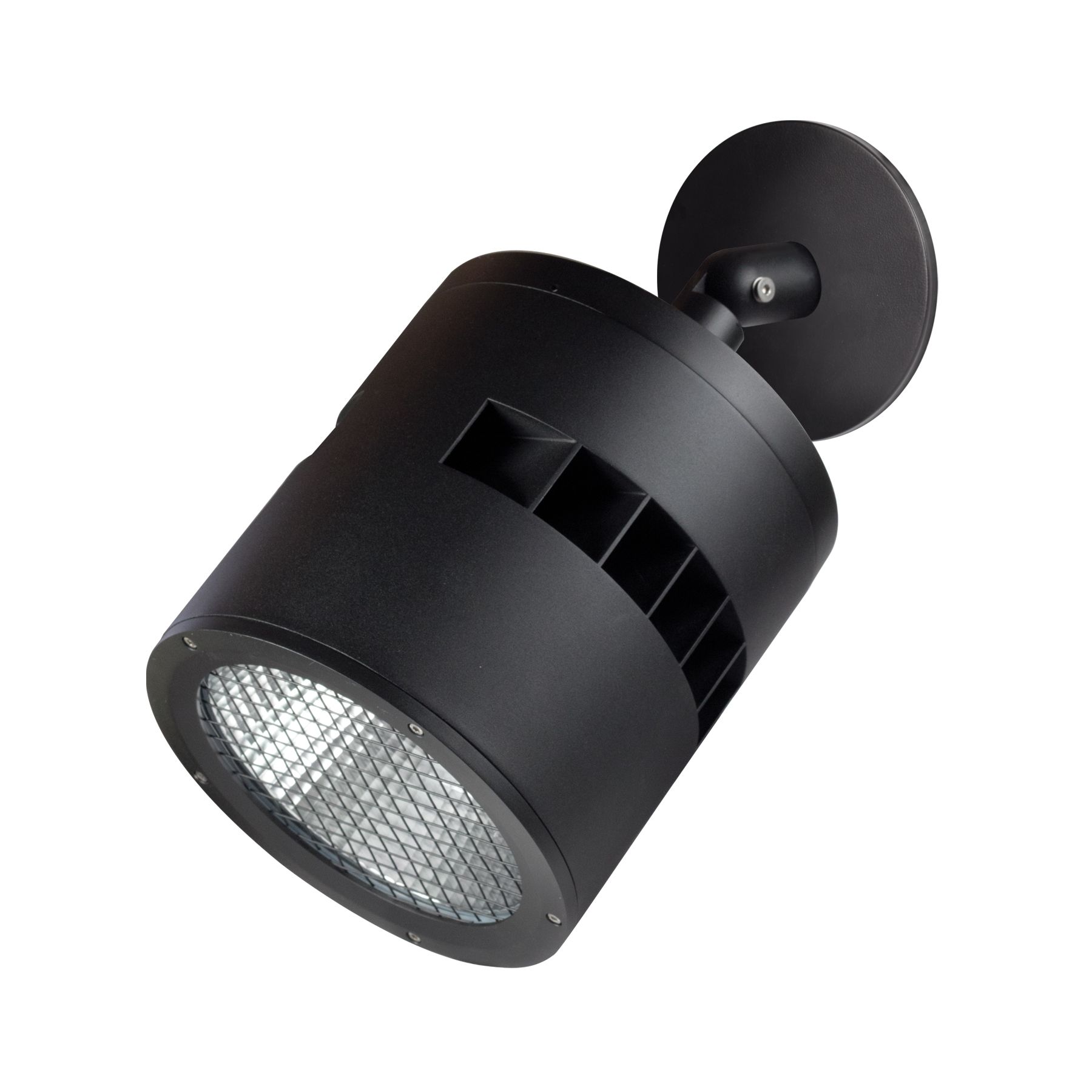

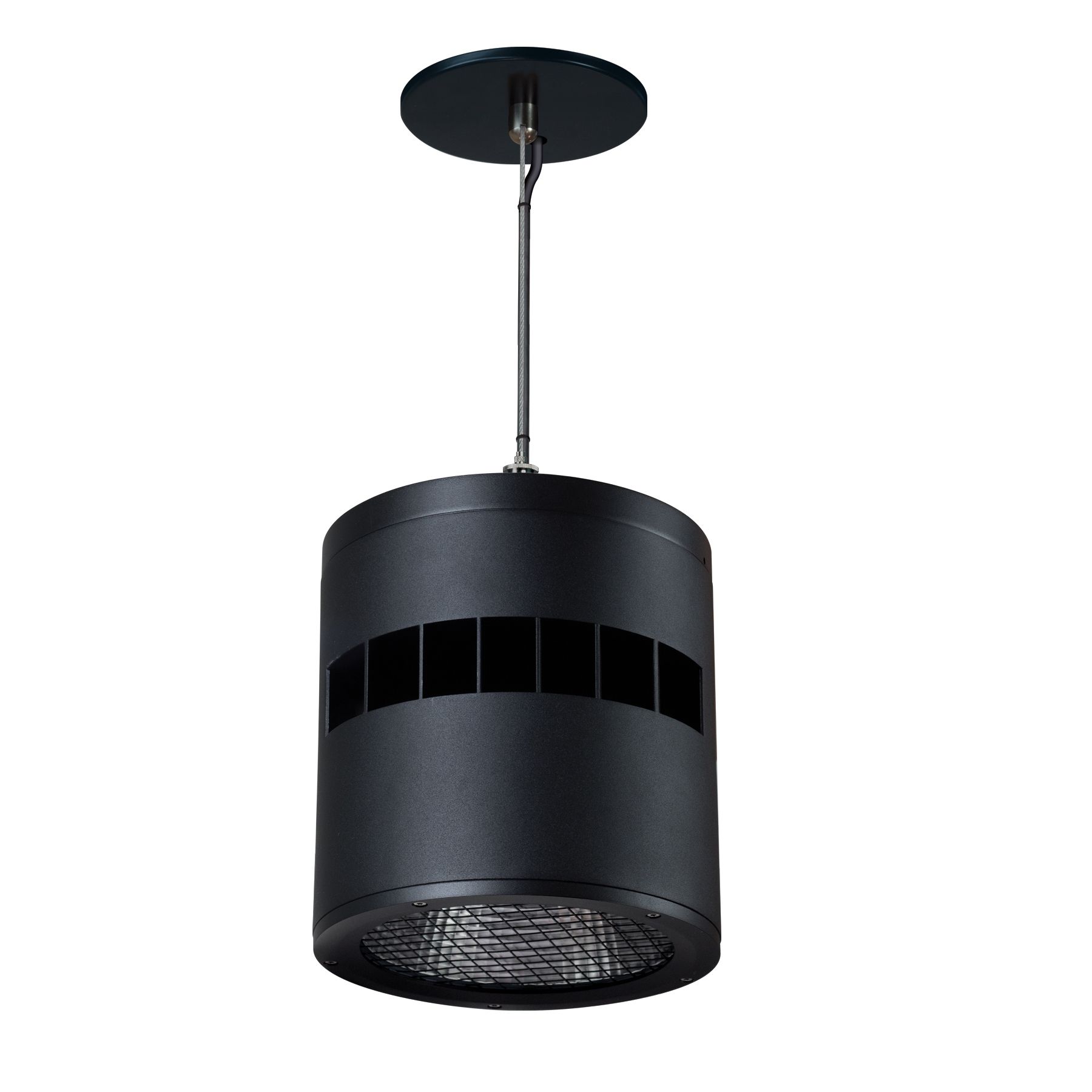

  • Multiple Mounting via Stem, Cable and Elbow Joint
  • Tuneable White and Warm-Dim Options Available
  • IP65
  • NEW EM options available for Pendant Mounts only
  • Multiple Wireless Control Options

Available Features
?

  • ETL Listed
  • US Assembled
  • Wet Location
  • Downlight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 Lumens are nominal delivered lumens. See Photometry page for exact values.
2 Special Order. Minimum order quantity (MOQ), extended lead time may apply. Consult Factory.
3 Stem and cable are field adjustable. See instructions.
4 (-T50) only available in 80 CRI (-C80).
5 (UE-DUN) only available with (030), (040), (070), (075), and (100) Lumen packages.
6 (UE-D10P1) not available with (160) Lumen package.
7 (-B15) & (-B25) only available with (030), (040), (050), (060), and (070) Lumen packages.
8 (-C80) not available with (-T35) and (-T40) for (030), (040), (050), (060), and (070) Lumen packages.

347 Input with 0-10V available. Consult Factory for details and lead time.
Energy Efficient Chip-On-Board (COB) Singular LED Light source provides for smooth, uniform light output, eliminating the multiple shadow effect seen by multiple LED source products.
Binned with 3-Step MacAdam Ellipses as recommended by Ansi Standard. Available in 2700k, 3000k, 3500k, 4000k, 5000k.
Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Dimming Diagrams
