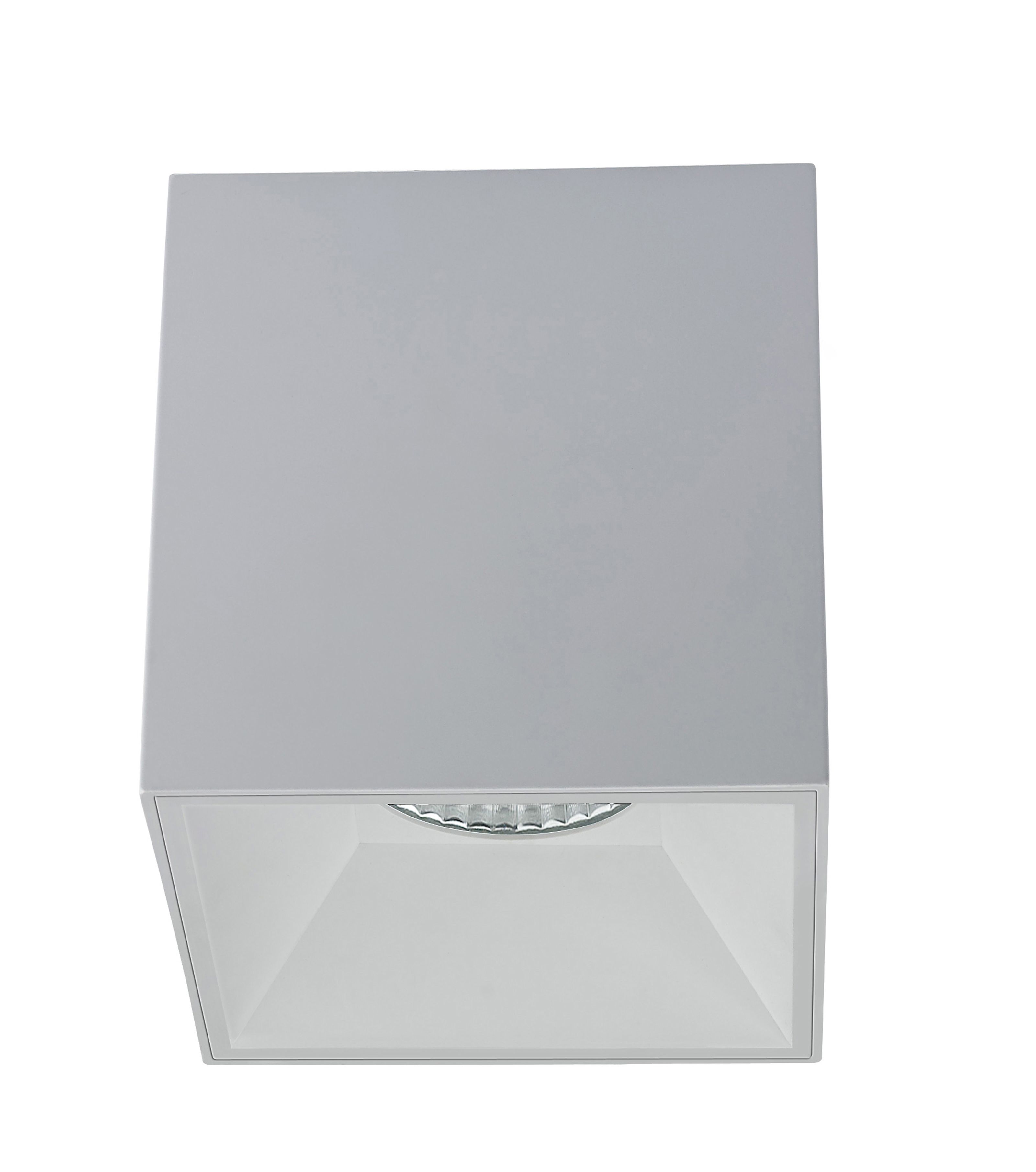

LCALDQ6 : 6" Pendant/Ceiling Mount LumenCube

6" Pendant/Ceiling Mount LumenCube
6" Pendant/Ceiling Mount LumenCube 6" Pendant/Ceiling Mount LumenCube 6" Pendant/Ceiling Mount LumenCube 6" Pendant/Ceiling Mount LumenCube 6" Pendant/Ceiling Mount LumenCube
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

Architectural-grade surface mount LED downlight housing for medium to high ceilings combines energy efficiency with powerful lumen output.

Benefits

  • 3 High lumen LED packages: 30W/1800Lm, 30W/3000Lm, and 40W/4000Lm.
  • 120V/277V Input Standard (347V Available)
  • Exclusive UniDimTM Universal LED Dimming Option works with 0-10V, ELV and Incandescent Control Systems
  • Smart DALI, DMX and 0-10V 1% Dimming
  • Field Replaceable Optics

Accessories: Pendant kits available in 12", 18", 24", 36", & 48". See website for details.

Available Features
?

  • Damp Location
  • ETL Listed
  • US Assembled
  • Sloped Ceiling
  • UL Listed
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • 120V
  • 277V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

* Nominal Delivered Lumens. See Photometry page for exact values.

**90 CRI for 1,800Lm, 80 CRI standard for 3,000Lm, 4,000Lm versions. For 90 CRI use -C90.

*** Extended Lead Time may apply. Consult Factory.

^ Not available for Pendant and Cable Extension mounting options

-D10P1 option 10-12 Week Lead Time

347V Input with 0-10V Dimming available. Consult factory for lead times.




Description

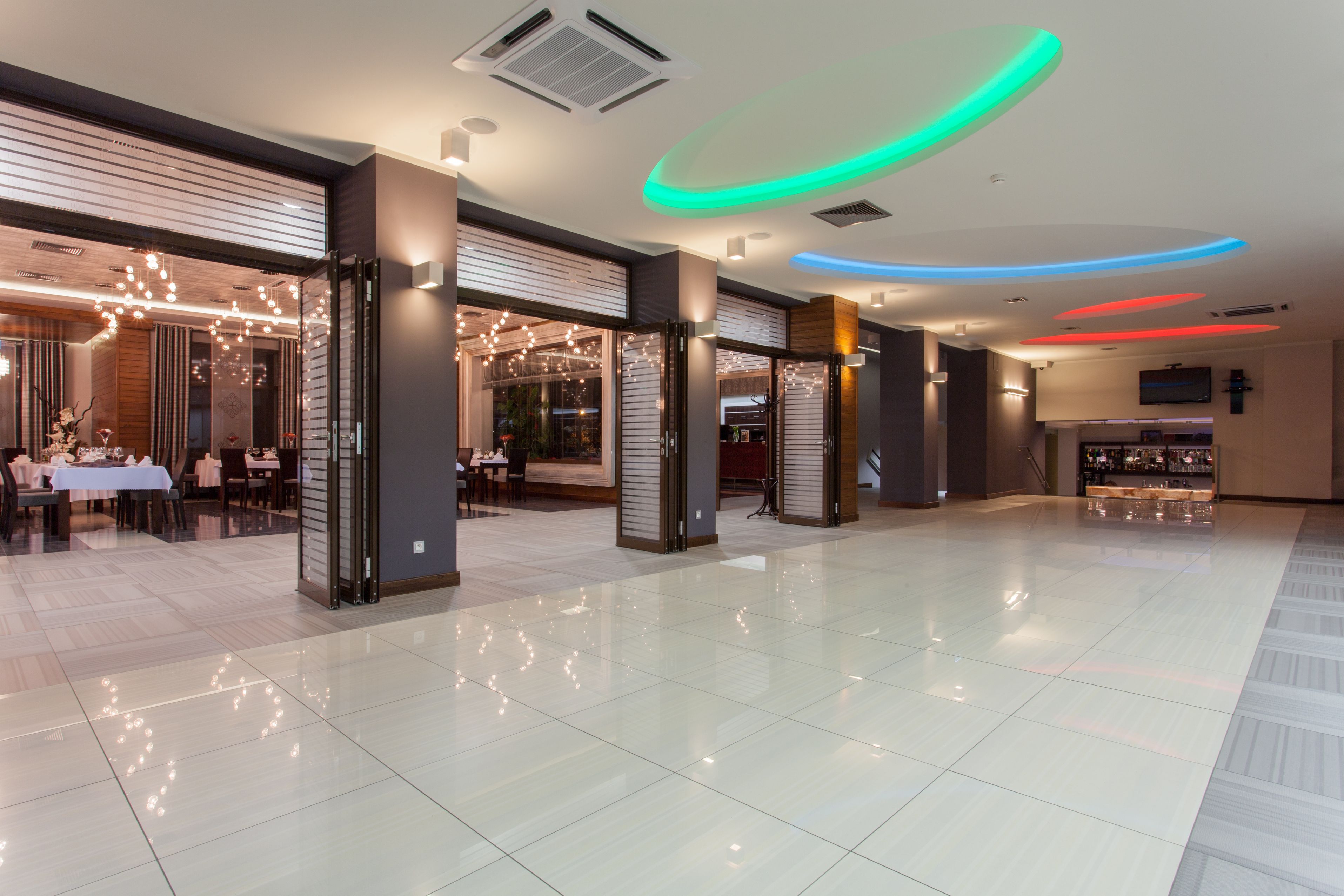

Perfect for atriums, churches, lobbies, and airports that have high ceilings.

Dimming Diagrams
