Description

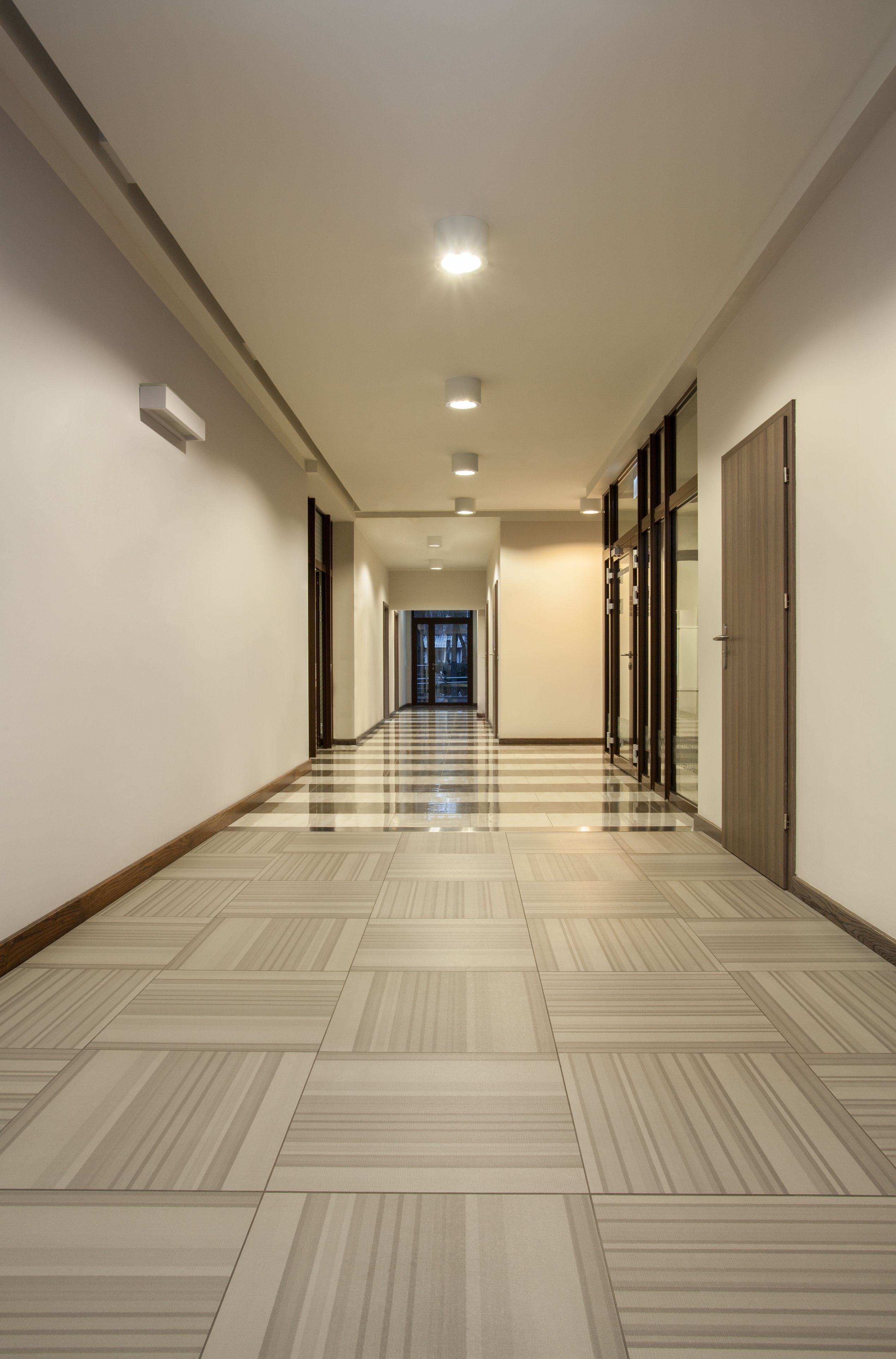

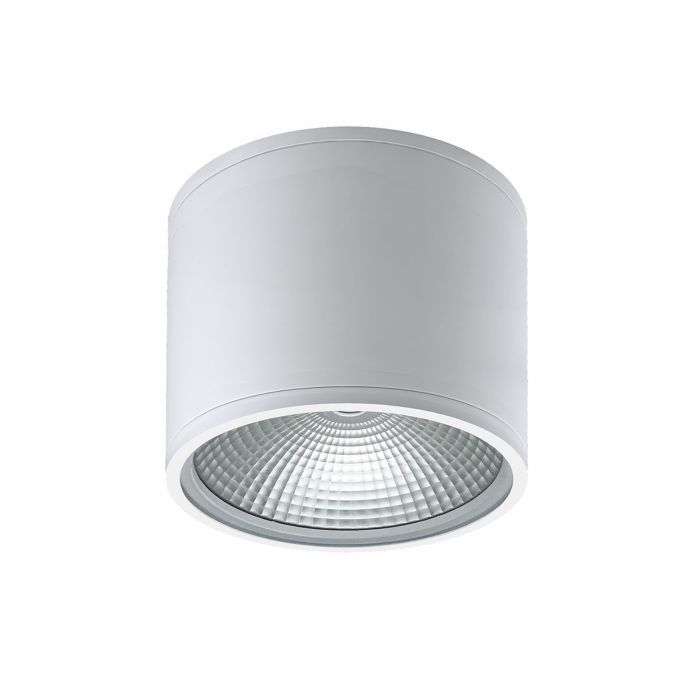

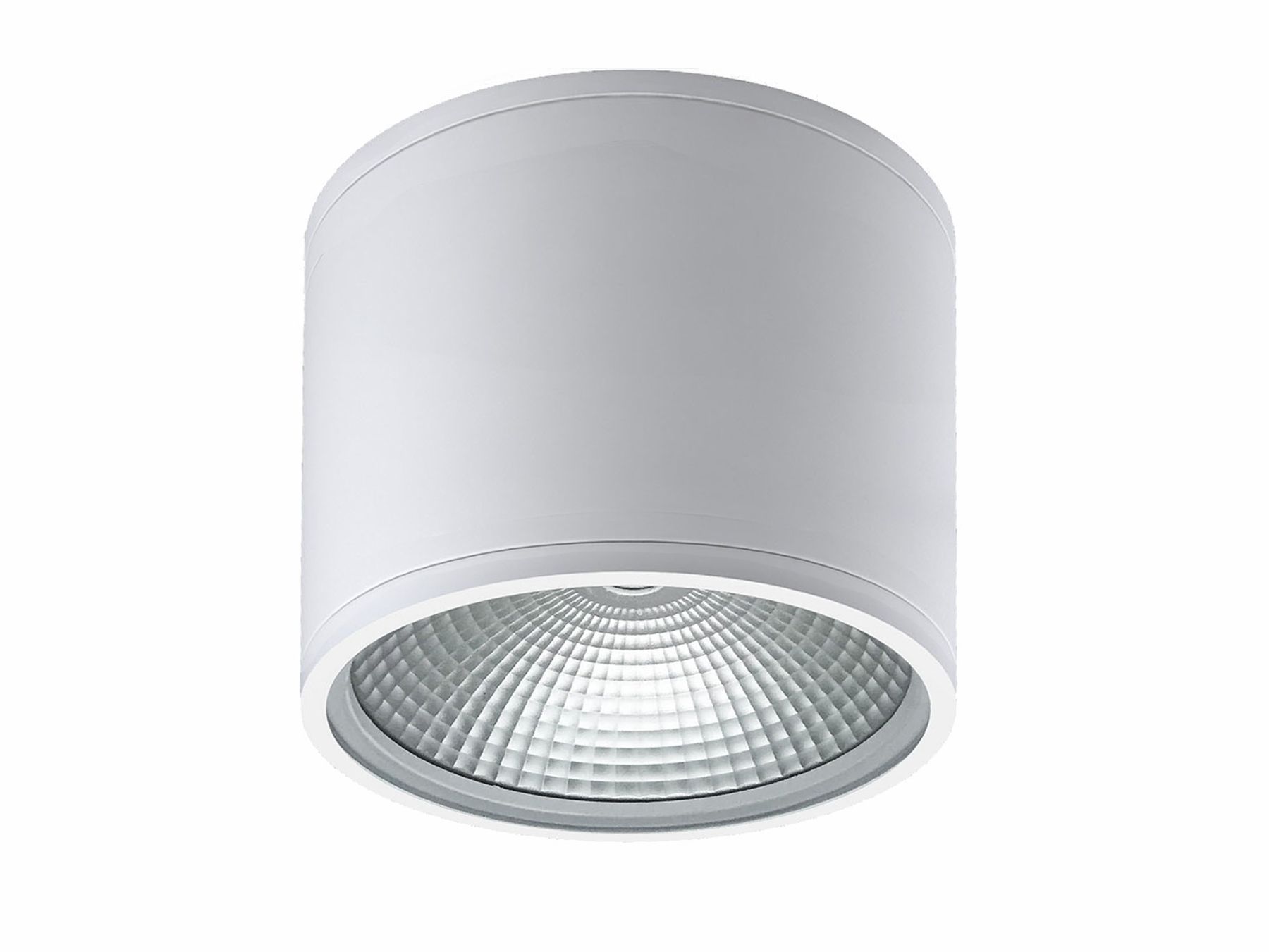

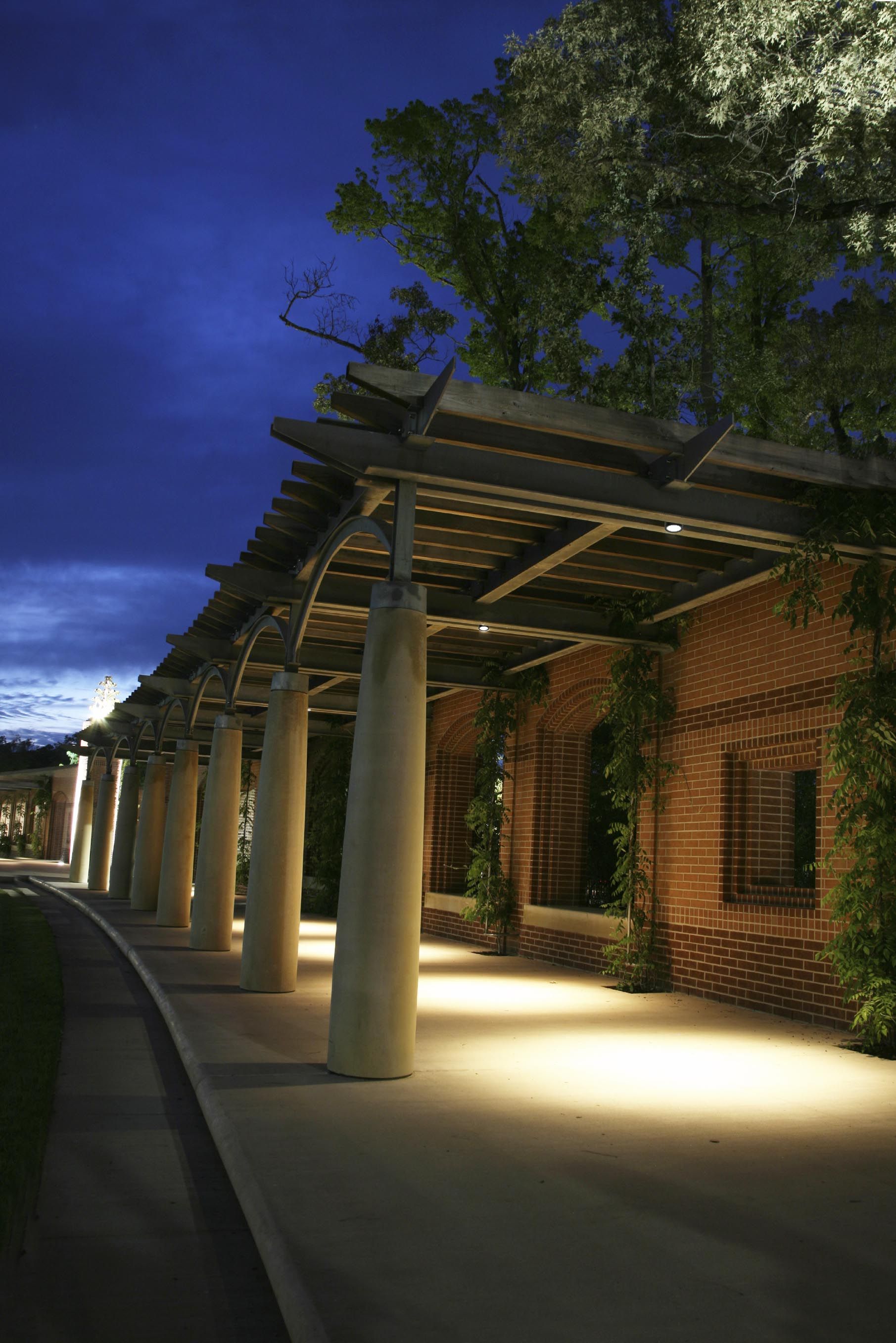

This DL Series covered ceiling mount down light/wall wash can be used for surface ceiling or pendant mount in both interior and outdoor settings. Typical locations are in commercial and retail spaces that require lighting from above. Dark Sky compliant.

Benefits

  • Energy efficient, low glare LED Chip-On-Board light engine
  • Beam spreads include NS, SP, FL, WFL, and Pencil Beam
  • Wall Wash Optics available
  • Emergency back-up available

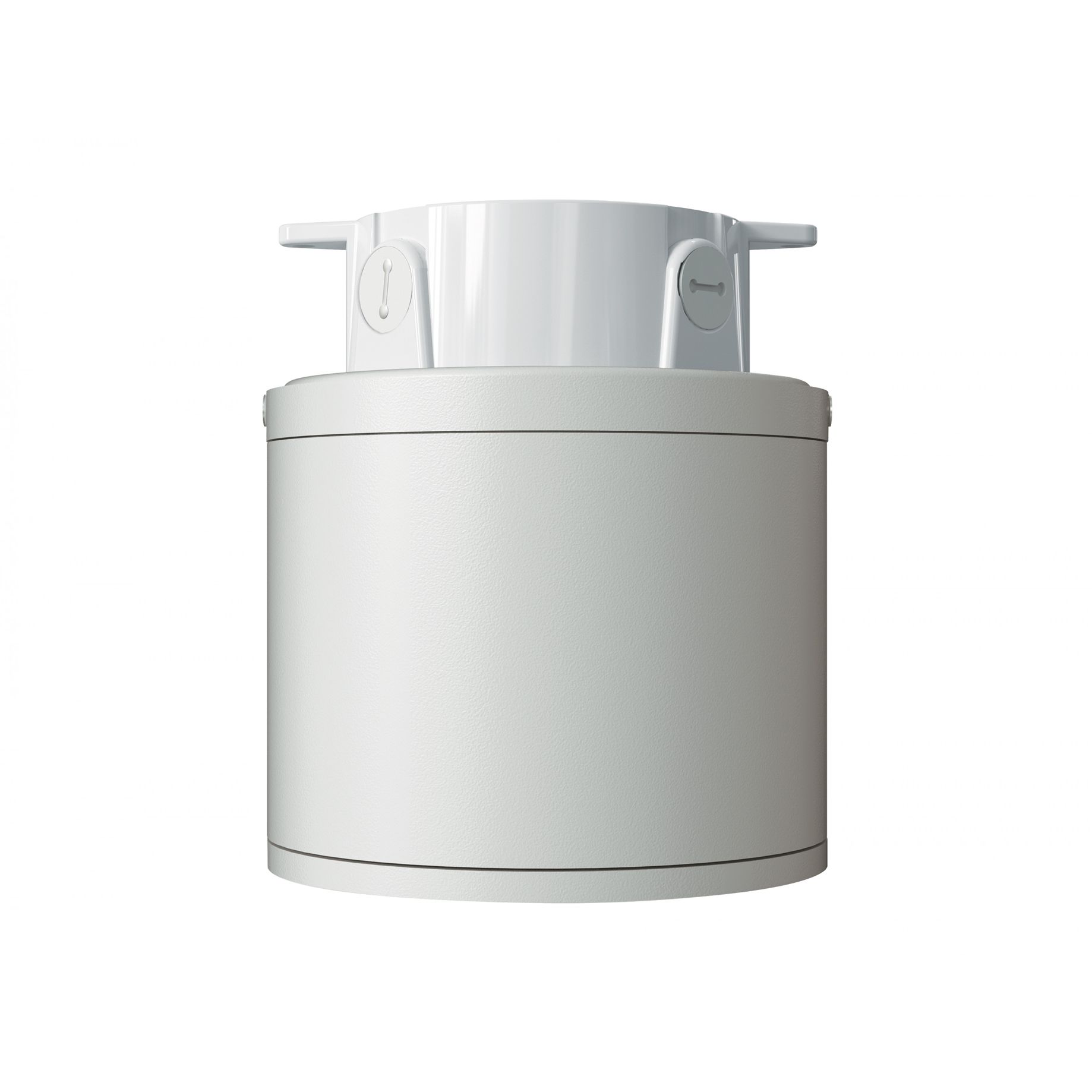

  • Integral Surface J-Box Option
  • 5-Year Limited Warranty
  • Multiple Wireless Control Options

"Now with Integral Emergency Option!"



Available Features
?

  • Cold Weather
  • Dark Sky Compliant
  • Emergency
  • ETL Listed
  • Marine Grade
  • Outdoor
  • US Assembled
  • Tamper Resistant
  • Wet Location
  • Dedicated LED
  • Downlight
  • Wall Wash
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

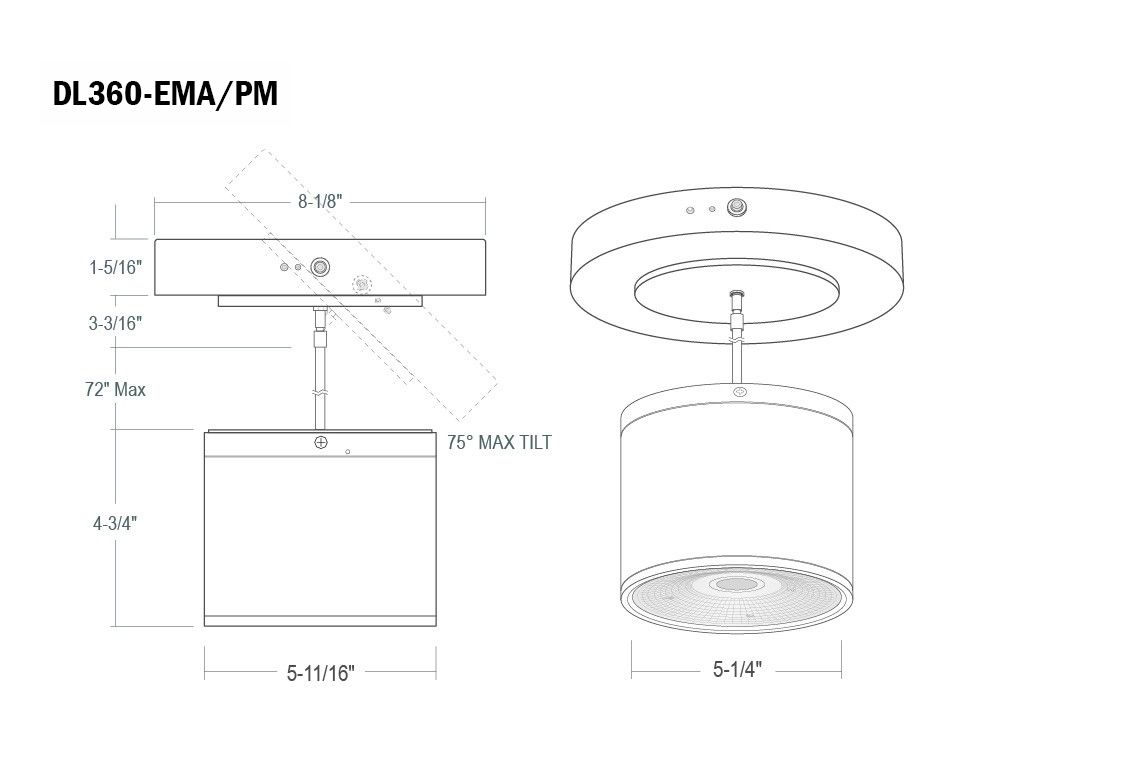

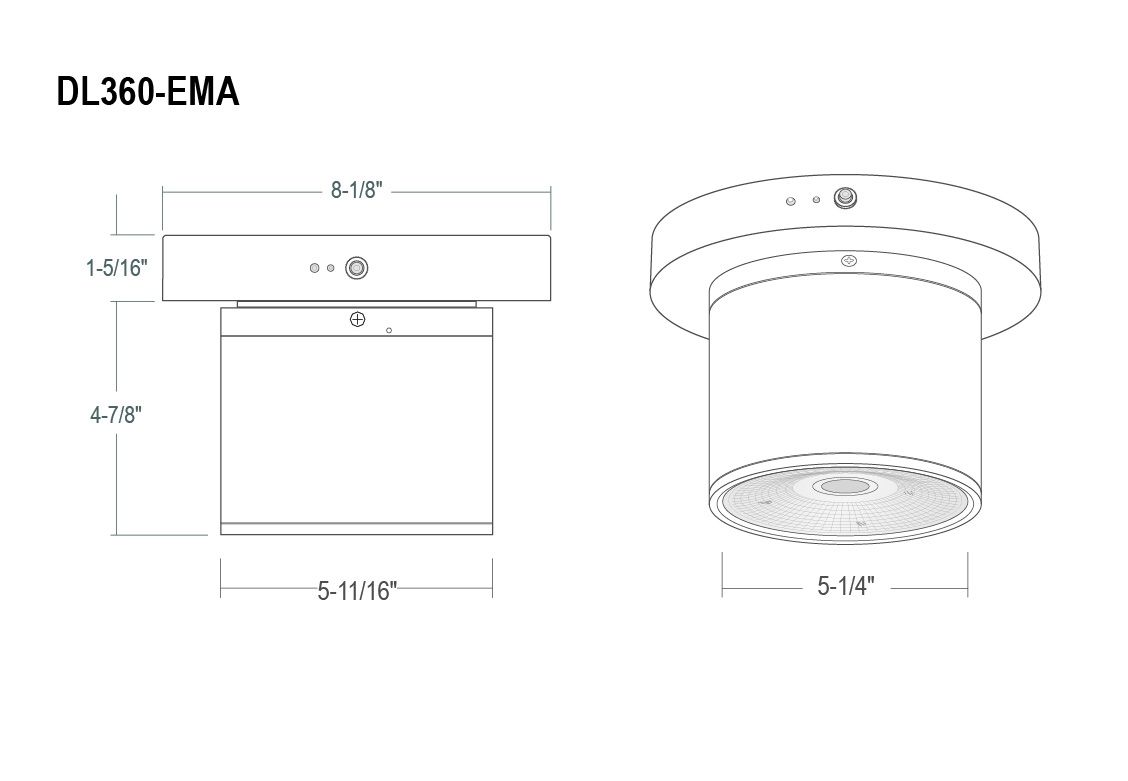

1 -EMA and -EMA/PM for 1500lm max. Specify White (W) or Black (B).
2 Special Order. Minimum order, extended lead time may apply. Consult factory.
3 Starting temperature -30°C/-22°F; see pg. 6.
4 Remote Power Supplies and Control Gear Required, Available with Wireless Bluetooth or DMX Control. Consult Factory for Details.
5 Not compatible with 1000lm selection; use with 1500lm and above.
6 Standard option only available for Black (B), and White (W) finish. For alternate finishes; contact factory for pricing. Extended lead time may apply.
7 (-EMA) is not compatible with (-CW) option.
8 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult Factory.
9 (-LVR) Hex-Cell Louver is not available with Clean Beam Options (-CB10), (-CB15), (-CB35).
10 (-SUN-INT) sensor integrated into the reflector. Consult Factory for layout assistance or alternate sensor mounting.
11 Special Order. Sent with surface mount JBOX to allow for direct-conduit entry.

 347V Input with 0-10V Dimming available. Consult factory for lead times.

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Description

Energy efficient Chip-On-Board (COB) Singular LED Light Source provides for smooth uniform light output, eliminating the multiple shadow effect seen by multiple LED Source products. Binned with 4-step MacAdam ellipses as recommended by ANSI Standard. Available in 2700K, 3000K, 3500K, 4000K, 5000K and 5600K.
