Description

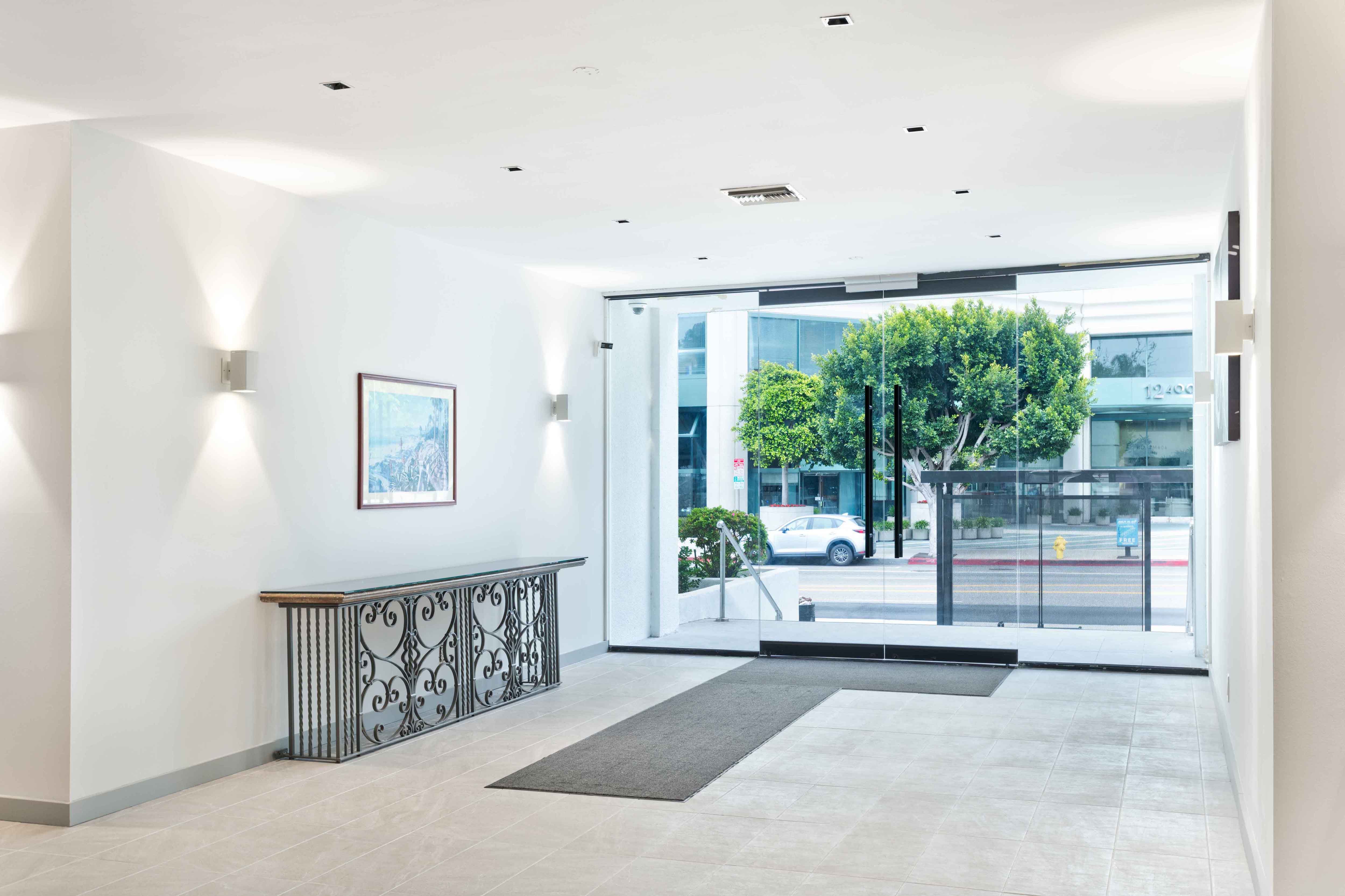

This WD2 Series Double-directional wall luminaire can be used in both interior and outdoor settings. Typical locations are in commercial and retail spaces that contain walls and/or columns that require directional lighting. Dual reflector design allows for direct and indirect lighting for a single fixture.
Emergency LED Battery Back-up available, remotely mounted adjacent to housing by installer. When AC power fails, the device immediately switches to the emergency mode, operating the LEDs for a minimum of 90 minutes. Remote test switch, plate cover and junction box included. Optional Generator Transfer Device switches the driver to auxiliary generator power during the loss of normal AC power, (recommended for applications requiring individual circuit switching).

Benefits

  • Lockable Adjustability
  • Uniform, Low-Glare Illumination
  • 120V/277V Input Standard, 347V Available
  • Wireless and Wired RGBW Options Available (12W LED)
  • Improved Beam Spreads and Color Temperature Options
  • Weep Holes for water drainage
  • NEW Emergency Back-Pack Option Available
  • NEW Glare Shields for eye comfort
  • Available with Type IV Forward Throw and Type II Asymmetric Distributions
  • Multiple Wireless Control Options

Available Features
?

  • Emergency
  • ETL Listed
  • Marine Grade
  • Outdoor
  • US Assembled
  • Tamper Resistant
  • Wet Location
  • Dedicated LED
  • Downlight
  • Uplight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered.
 Extended lead times may apply. Consult Factory.
2 Special Order. Minimum order quantity (MOQ), extended lead time may apply. Consult Factory.
3 Standard Driver Starting Temp -10°C/14°F.
4 Blank EM enclosure available for non-EM units to provide a seamless design aesthetic when EM enabled products are installed.
5 Remote Power Supplies and Control Gear required. Available with Wireless Bluetooth Casambi or DMX 512 control. Consult Factory for Details.
6 (-LVR) Hex-Cell Louver is not compatible with CleanBeam Options (-CBU10), (-CBU15), (-CBU35), (-CBD10), (-CBD15), (-CBD35).
7 Special Order. Must be ordered with -EMB-FC.
8 Special Order. Must be ordered with -EMB-BLANK.

Energy Efficient Chip-On-Board (COB) Singular LED Light source provides for smooth, uniform light output, eliminating the multiple shadow effect seen by multiple LED source products.

Binned with 3-Step MacAdam Ellipses as recommended by Ansi Standard. Available in 2700k, 3000k, 3500k, 4000k, 5000k, RGBW, and 590nm Amber.

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Dimming Diagrams
