Description

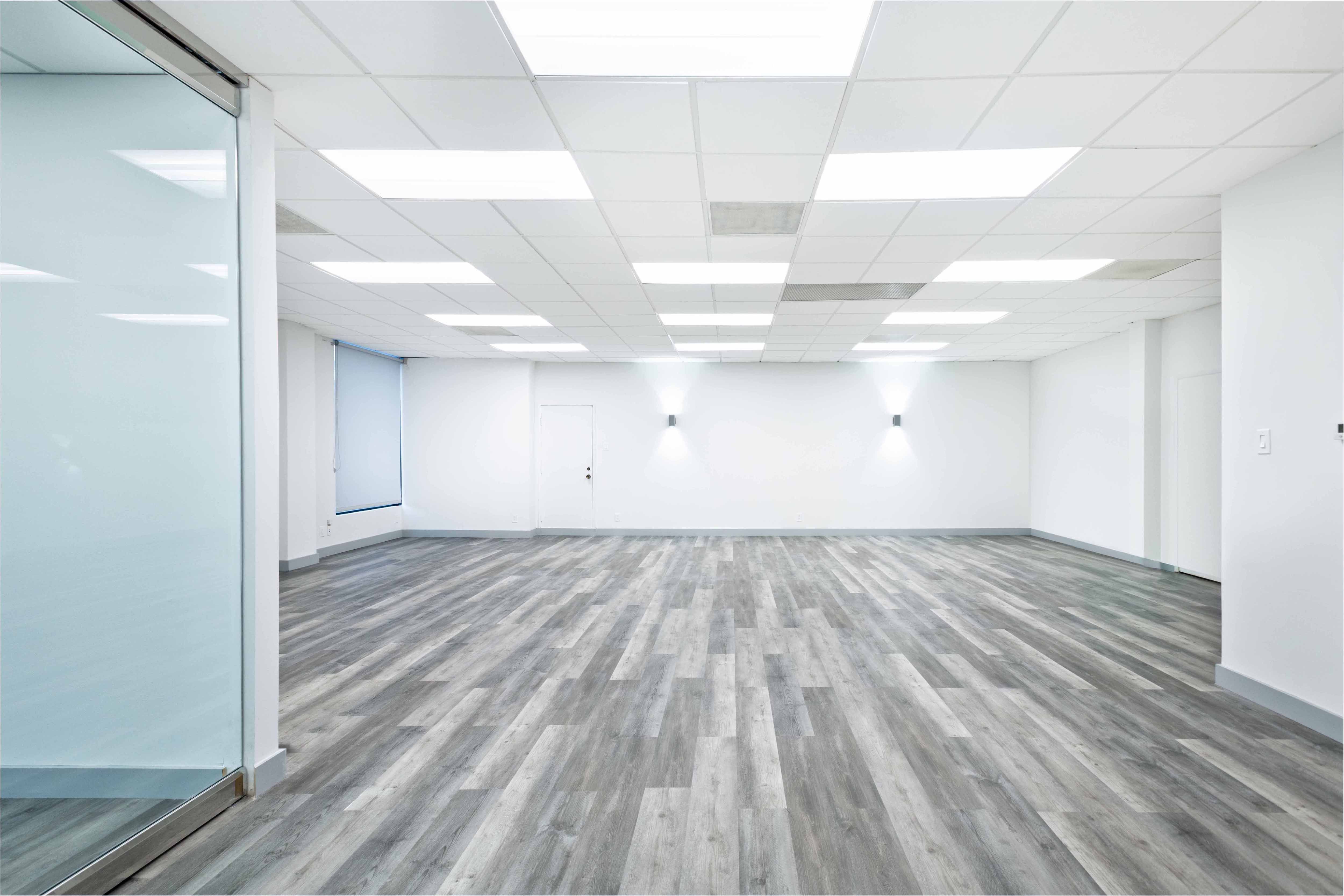

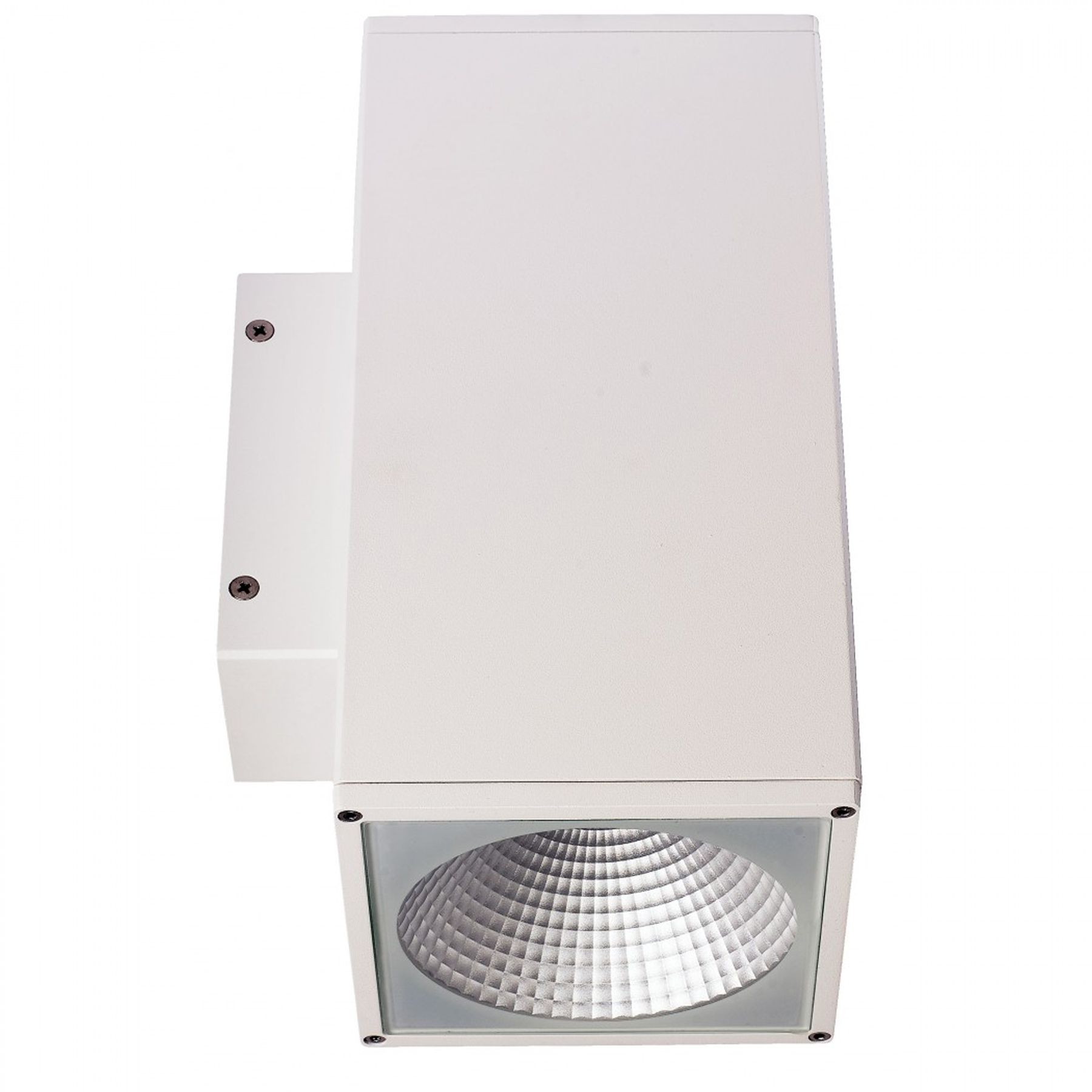

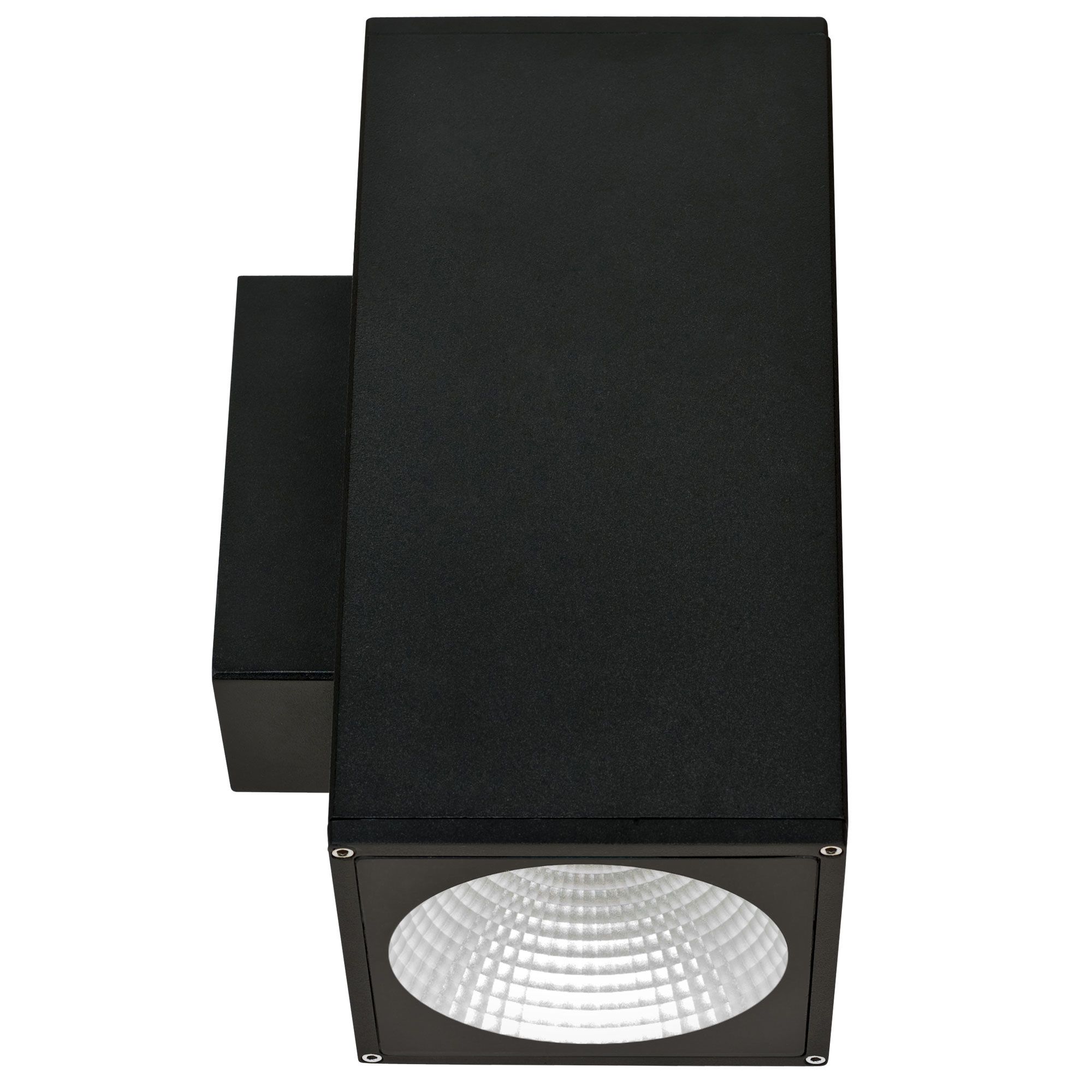

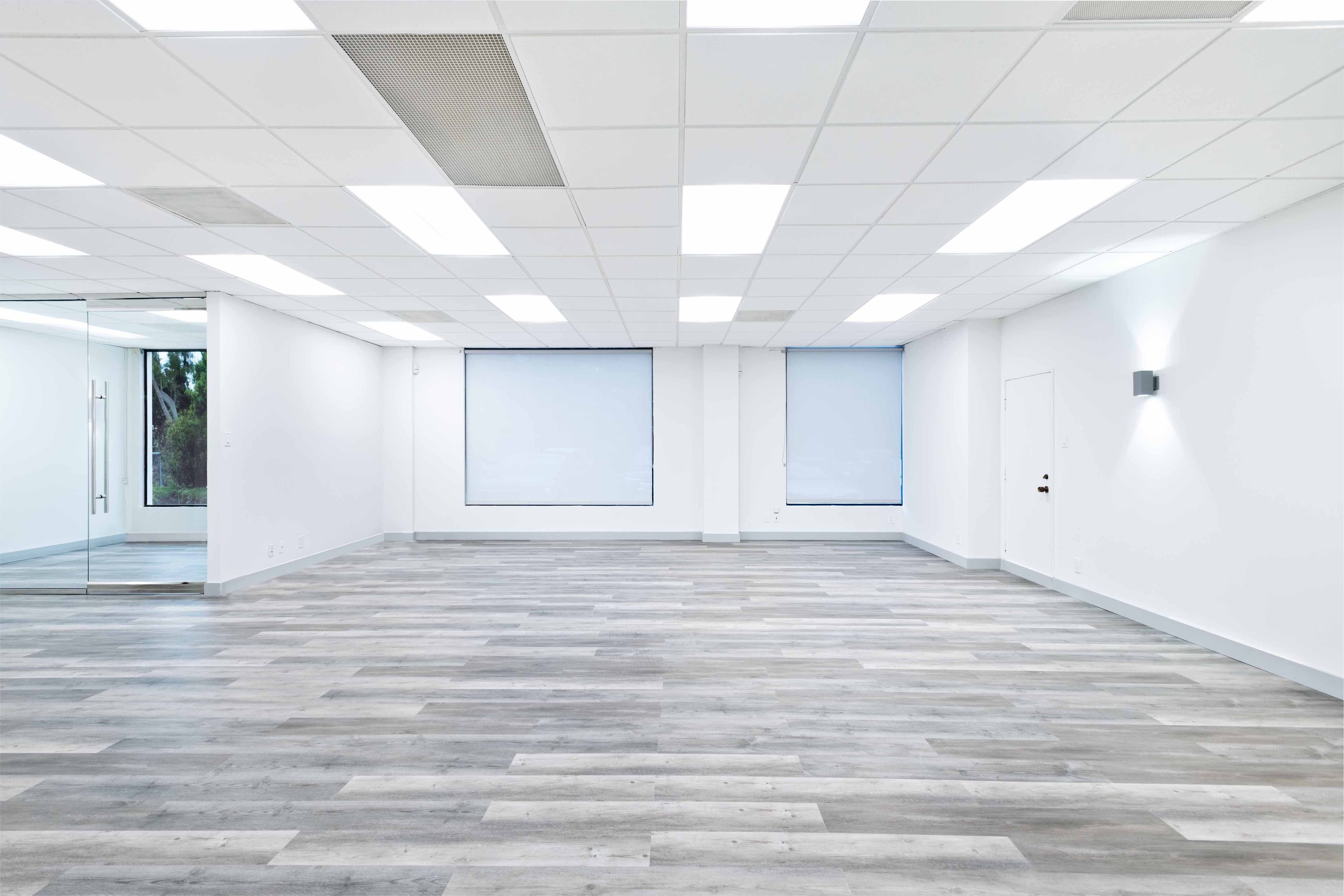

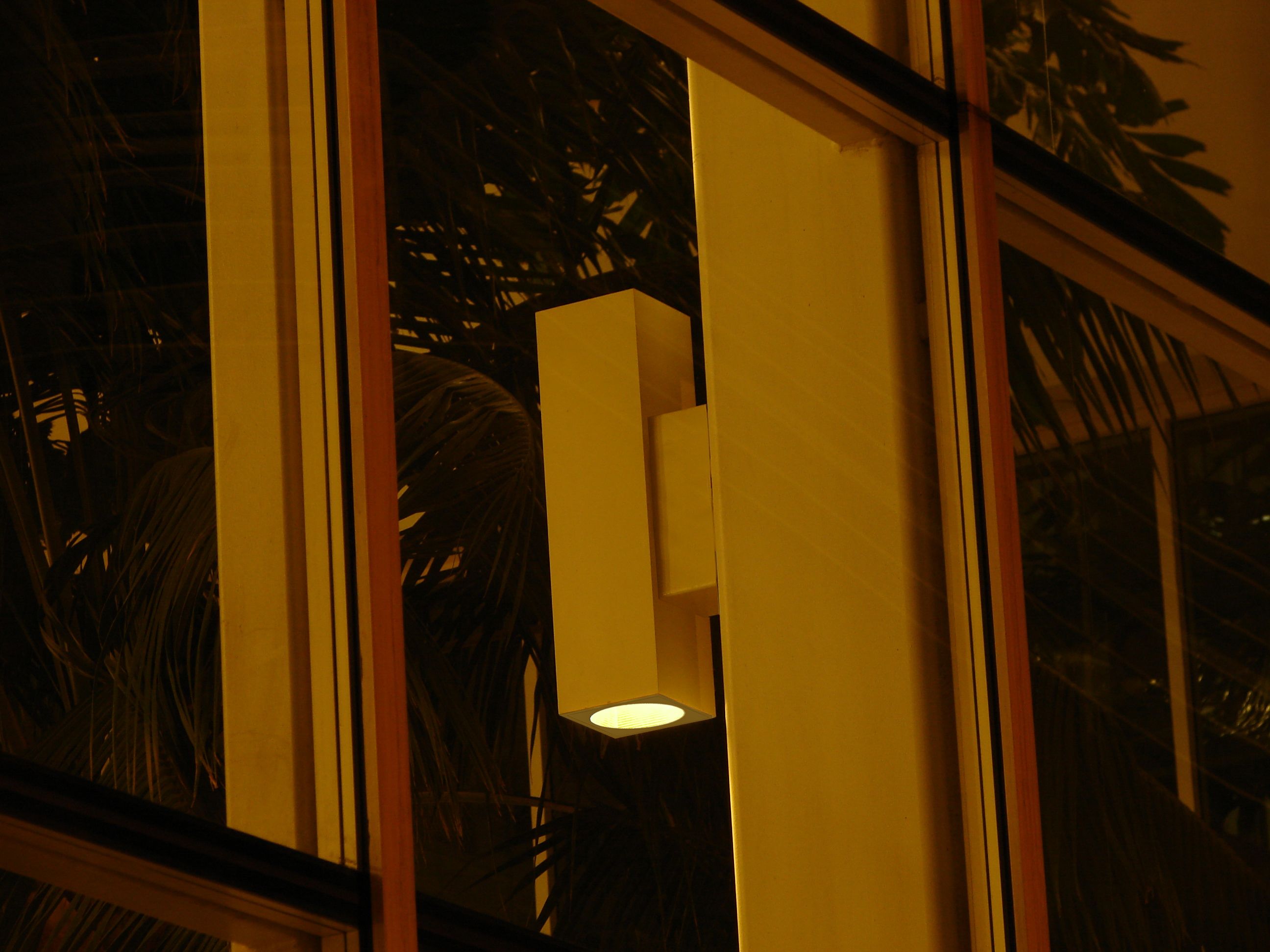

This WD2 Series Double-directional wall luminaire can be used in both interior and outdoor settings. Typical locations are in commercial and retail spaces that contain walls and/or columns that require directional lighting. Dual reflector design allows for direct and indirect lighting for a single fixture.

Benefits

  • Uniform, Low Glare Illumination
  • Singular COB light source
  • New Integral Emergency Option
  • Unidim dimming option with 2-wire Incandescent, 3-Wire ELV or 0-10V controls
  • 13' Mtg. Ht., 22' O.C. Spacing (1000 lumen package)
  • 25' Mtg. Ht., 22' O.C. Spacing (1500 lumen package)
  • 5-Year Limited Warranty
  • Photocell Available
  • Available with Type IV/Forward Throw Optics
  • Available with 347Vac, 0-10V dimming
  • Multiple Wireless Control Options



Available Features
?

  • Cold Weather
  • Emergency
  • ETL Listed
  • Marine Grade
  • Outdoor
  • US Assembled
  • Tamper Resistant
  • Wet Location
  • Dedicated LED
  • Downlight
  • Uplight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult Factory.
2 Special Order. Minimum order quantity (MOQ), extended lead time may apply. Consult Factory.
3 Standard driver minimum starting temperature is -10°C / 14°F.
4 Cold Weather Start (-CW) Starting Temperature -30°C / -22°F.
5 Blank EM enclosure available for non-EM units to provide a seamless design aesthetic when EM enabled products are installed.
6 (-EMB-SD) and (-EMB-FC) are not compatible with (-CW) option.
7 Remote Power Supplies and Control Gear required. Available with Wireless Bluetooth Casambi or DMX 512 control. Consult Factory for Details.
8 (-347-D10) not available with 1000lm (10W) Lumen option.
9 Must Specify Left or Right.
10 (-LVR) Hex-Cell Louver is not compatible with CleanBeam Options (-CBU10), (-CBU15), (-CBU35), (-CBD10), (-CBD15), (-CBD35).
11 (-SUN-INT) sensor integrated into the reflector. Consult Factory for layout assistance or alternate sensor mounting.
12 Special Order. Must be ordered with -EMB-FC, or -EMB-BLANK.
13 Special Order. Must be ordered with -EMB-BLANK.

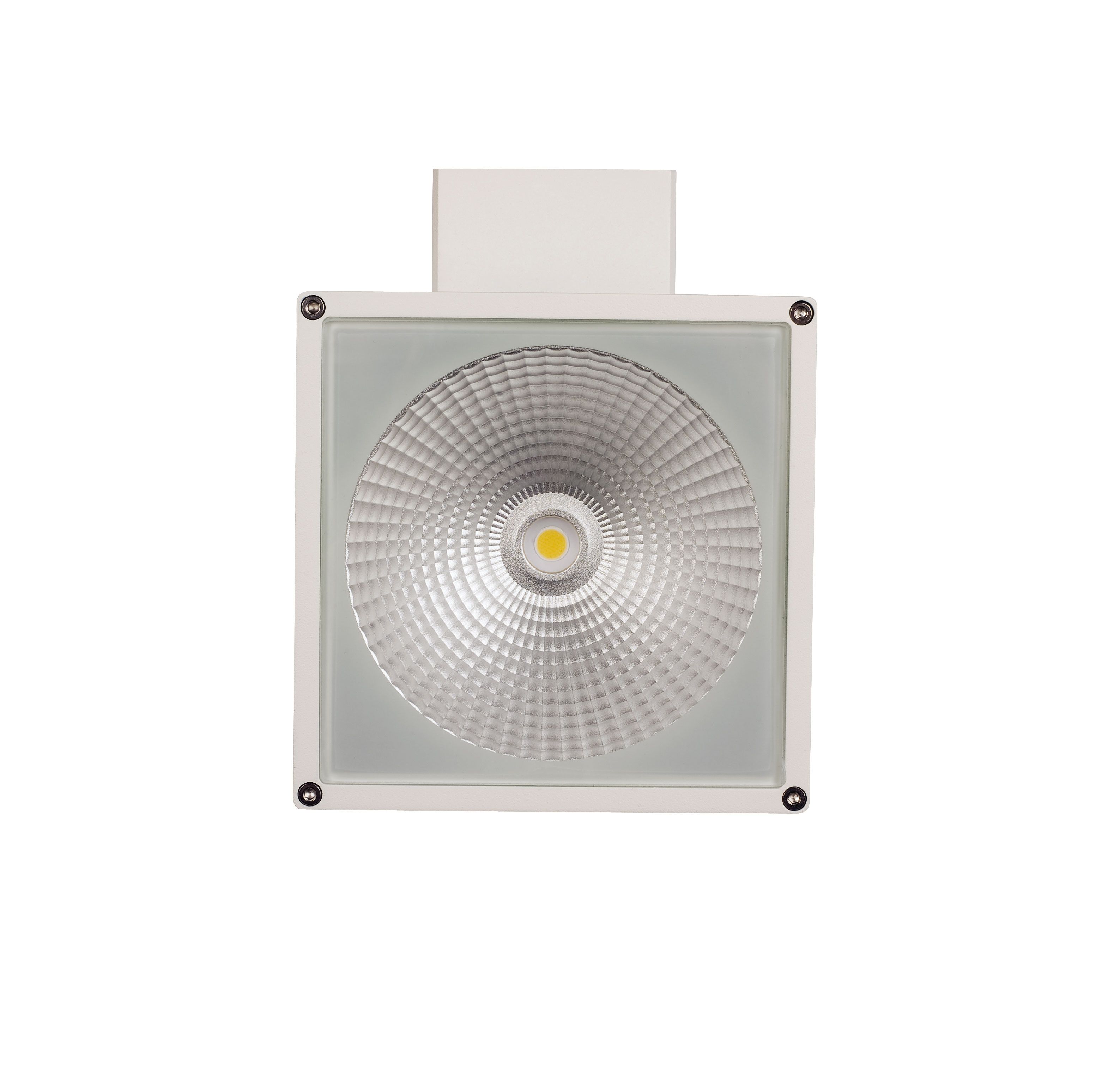

⋅ Energy Efficient Chip-On-Board (COB) Singular LED Light source provides for smooth, uniform light output, eliminating the multiple shadow effect seen by multiple LED source products.
⋅ Binned with 3-Step MacAdam Ellipses as recommended by Ansi Standard. Available in 2700k, 3000k, 3500k, 4000k, 5000k, RGBW, and 590nm Amber.
⋅ Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Description

Emergency LED Battery Back-up available, remotely mounted adjacent to housing by installer. When AC power fails,the device immediately switches to the emergency mode, operating the LEDs for a minimum of 90 minutes. Remote test switch, plate cover and junction box included. Optional Generator Transfer Device switches the driver to auxiliary generator power during the loss of normal AC power, (recommended for applications requiring individual circuit switching).
