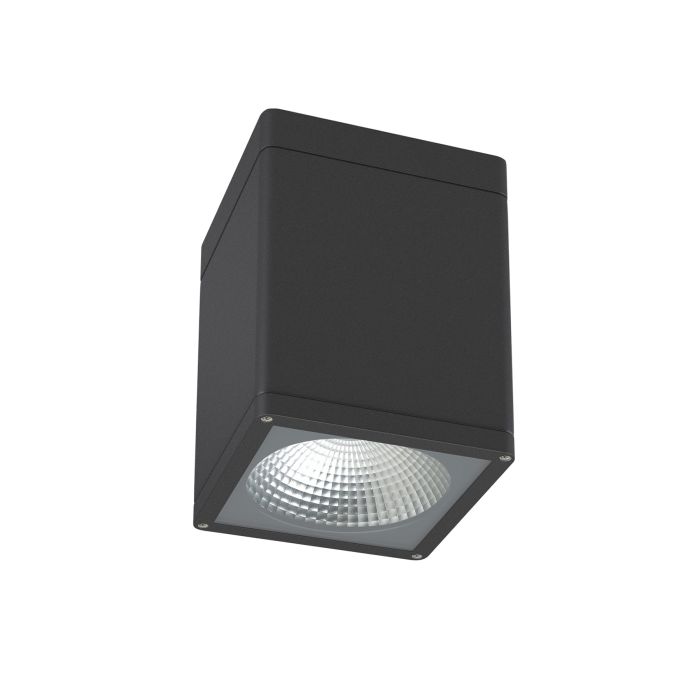

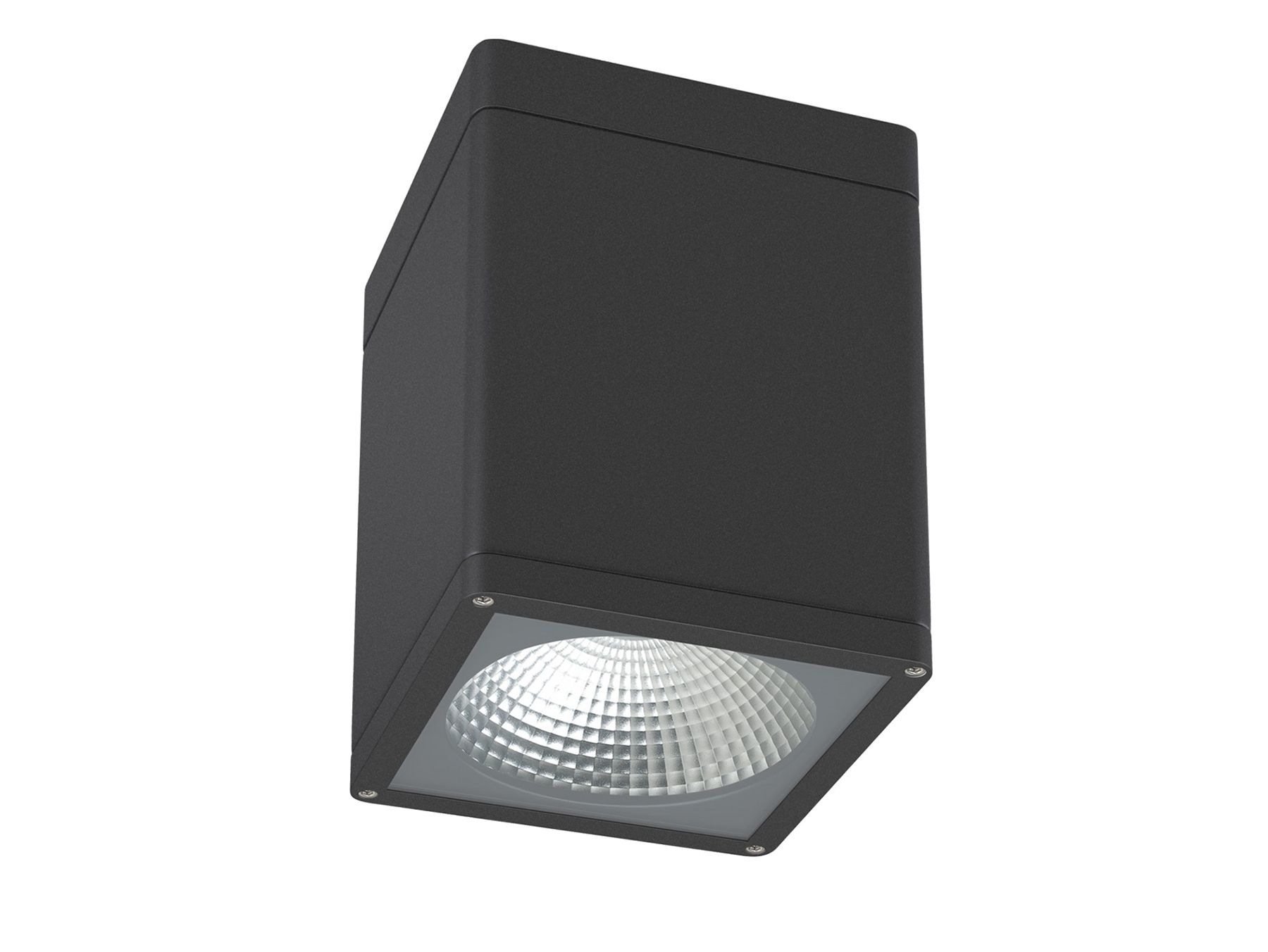

DLQ340 : 4" Square Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W)

4" Square Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W)
4" Square Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W) 4" Square Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W) 4" Square Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W) 4" Square Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

This DL Series covered ceiling mount downlight can be used for surface ceiling or pendant mount in both interior and outdoor settings. Typical locations are in commercial and retail spaces that require lighting from above. Dark Sky compliant.

Benefits

• Energy efficient, low glare LED Chip-On-Board light engine
• Beam spreads include NS, SP, FL, WFL and Pencil Beam
• Wall Wash Optics available
• Emergency back up available
• Integral Surface J-Box Option
• 5-Year limited warranty
• Multiple Wireless Control Options

Available Features
?

  • Cold Weather
  • Dark Sky Compliant
  • Emergency
  • ETL Listed
  • Marine Grade
  • Outdoor
  • US Assembled
  • Tamper Resistant
  • Wet Location
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 -EMA and -EMA/PM for 15W max.
2 Special Order. Minimum order, extended lead time may apply. Consult factory.
3 Starting temperature -30°C/-22°F; see p. 6.
4 Remote Power Supplies and Control Gear Required. Available with Wireless Bluetooth or DMX Control. Consult Factory for Details.
5 See p. 5 for breakdown of -JB options.
6 Standard option only available for Black (B), and White (W) finish. For alternate finishes; contact factory for pricing. Extended lead time may apply.
7 (-EMA) and (-EMA/PM) are not compatible with (-CW) option.
8 Must be ordered with Pendant Mount Accessory (LPCMDL4) shown on p. 5.
9 347V Input with 0-10V Dimming available. Consult factory for lead times.
10 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult Factory.
11 (-LVR) Hex-Cell Louver is not available with CleanBeam Option (-CB10).
12 Must be ordered with (-JB).
13 Special Order. (-EMA), (-EMA/PM), and (-JB) are not compatible with (-DBNT) option.
14 Special Order. Sent with surface mount JBOX to allow for direct-conduit entry.

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Description

Energy efficient Chip-On-Board (COB) Singular LED Light Source provides for smooth uniform light output, eliminating the multiple shadow effect seen by multiple LED Source products. Binned with 4-step MacAdam ellipses as recommended by ANSI Standard. Available in 4000K, 2700K, 3000K, 3500K, and 5000K (90CRI), 2700K, 3000K (97CRI), RGB+W, and 590nm True Amber.

Combined Spec Sheets

Dimming Diagrams
