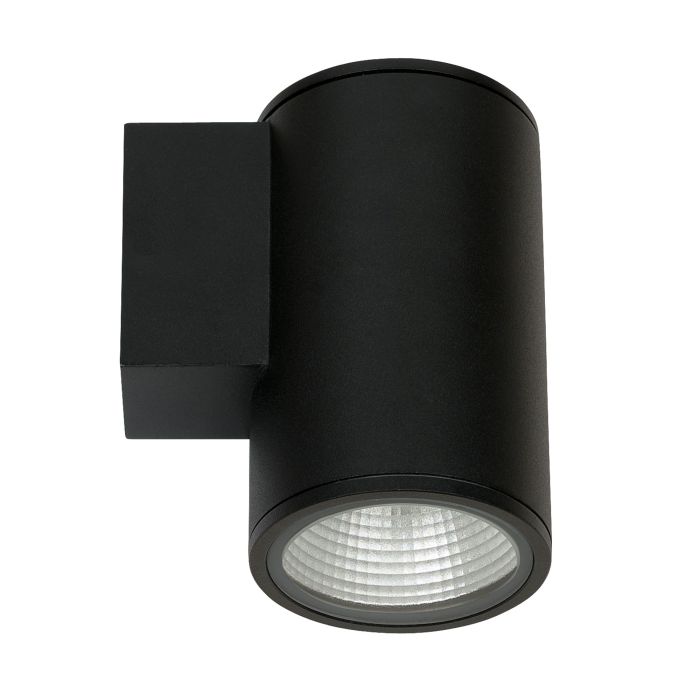

WD1340 : 4" Round 1-Direction Wall Mount (IP65) - 1000lm-1500lm (10W-15W)

4" Round 1-Direction Wall Mount (IP65) - 1000lm-1500lm (10W-15W)
4" Round 1-Direction Wall Mount (IP65) - 1000lm-1500lm (10W-15W) 4" Round 1-Direction Wall Mount (IP65) - 1000lm-1500lm (10W-15W) 4" Round 1-Direction Wall Mount (IP65) - 1000lm-1500lm (10W-15W) 4" Round 1-Direction Wall Mount (IP65) - 1000lm-1500lm (10W-15W) 4" Round 1-Direction Wall Mount (IP65) - 1000lm-1500lm (10W-15W) 4" Round 1-Direction Wall Mount (IP65) - 1000lm-1500lm (10W-15W) 4" Round 1-Direction Wall Mount (IP65) - 1000lm-1500lm (10W-15W) 4" Round 1-Direction Wall Mount (IP65) - 1000lm-1500lm (10W-15W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

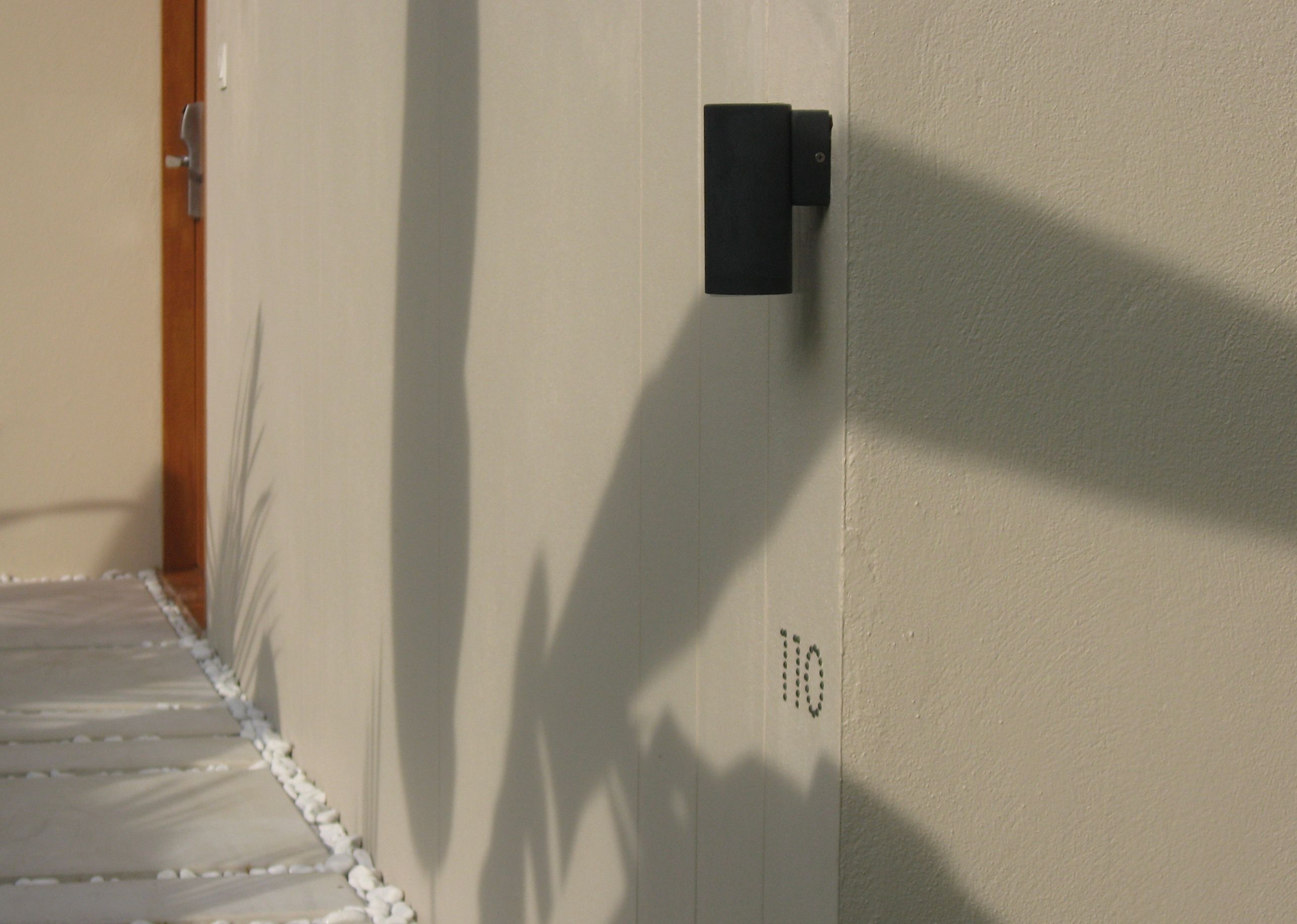

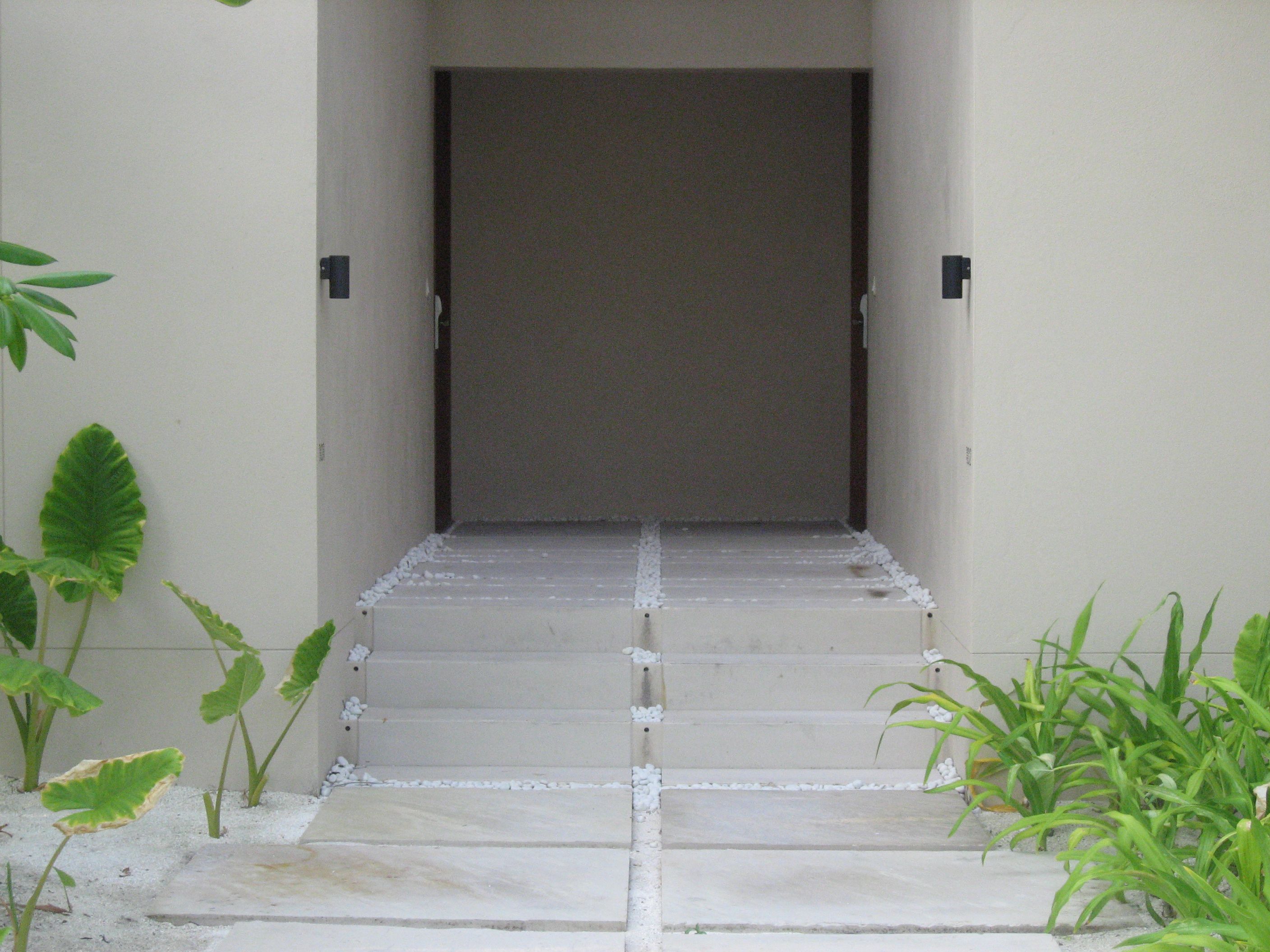

This WD1 Series directional Wall luminaire can be used in both interior and outdoor settings and can be pointed up or down. Typical locations are in commercial and retail spaces that contain walls and/or columns that require directional lighting. Can be used as downlight for direct illumination or an uplights for indirect illumination of architecture facades.

Benefits

  • Uniform, Low Glare Illumination
  • Singular COB light source
  • New Integral Emergency Option
  • Unidim dimming option with 2-wire Incandescent, 3-Wire ELV or 0-10V controls
  • 13' Mtg. Ht., 22' O.C. Spacing (1000 lumen package)
  • 25' Mtg. Ht., 22' O.C. Spacing (1500 lumen package)
  • 5-Year Limited Warranty
  • UniSense Available
  • Available with Type IV/Forward Throw Optics
  • Multiple Wireless Control Options

Available Features
?

  • Cold Weather
  • Dark Sky Compliant
  • Emergency
  • ETL Listed
  • Marine Grade
  • Outdoor
  • US Assembled
  • Tamper Resistant
  • Turtle Safe
  • Wet Location
  • Dedicated LED
  • Downlight
  • Uplight
  • Wall Wash
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered.
 Extended lead times may apply. Consult Factory.
2 Special Order. Minimum order quantity (MOQ), extended lead time may apply. Consult Factory.
3 Standard driver minimum starting temperature is -10°C / 14°F.
4 Cold Weather Start (-CW) Starting Temperature -30°C / -22°F.
5 Blank EM enclosure available for non-EM units to provide a seamless design aesthetic when EM enabled products are installed.
6 (-EMB-SD) and (-EMB-FC) are not compatible with (-CW) option.
7 Remote Power Supplies and Control Gear required. Available with Wireless Bluetooth Casambi or DMX 512 control. Consult Factory for Details.
8 (-TAM) 590nm AMBER must be ordered with Blank Lumen, (Blank) Wide Flood Optic and (-LVR) Hex-cell louver.
9 (-LVR) Hex-Cell Louver is not compatible with CleanBeam Options (-CB10), (-CB20), (-CB35).
10 Special Order. Must be ordered with -EMB-FC.
11 Special Order. Must be ordered with -EMB-BLANK.

⋅ 347 Input with 0-10V available. Consult Factory for details and lead time.
⋅ Energy Efficient Chip-On-Board (COB) Singular LED Light source provides for smooth, uniform light output, eliminating the multiple shadow effect seen by multiple LED source products.
⋅ Binned with 3-Step MacAdam Ellipses as recommended by Ansi Standard. Available in 2700k, 3000k, 3500k, 4000k, 5000k, RGBW, and 590nm Amber.
⋅ Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Dimming Diagrams
