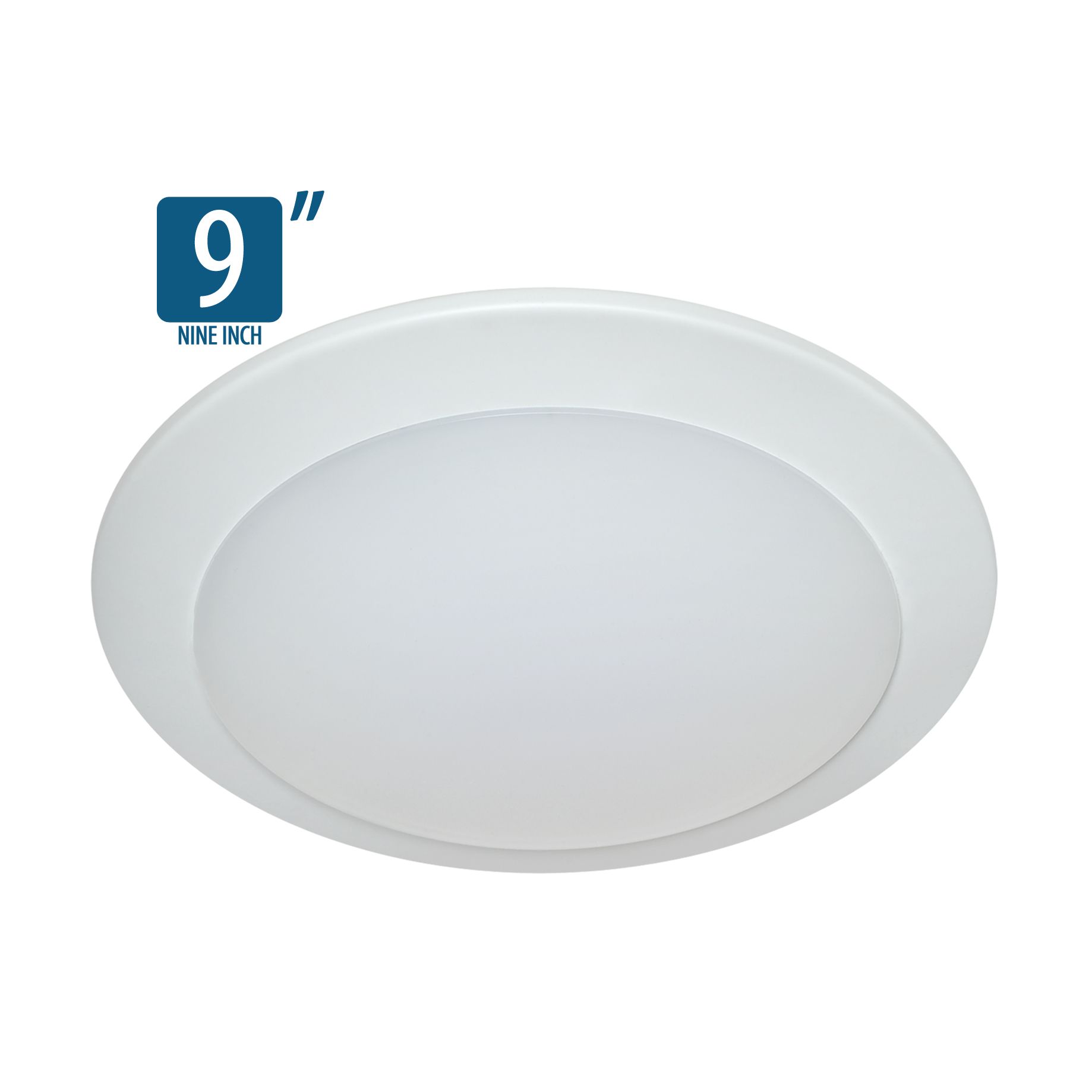

LCMLD9 : 9" Surface Mount Lumen Disc (1,300Lm)

9" Surface Mount Lumen Disc (1,300Lm)
9" Surface Mount Lumen Disc (1,300Lm) 9" Surface Mount Lumen Disc (1,300Lm) 9" Surface Mount Lumen Disc (1,300Lm)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

9" General Purpose Surface Mount Downlight is perfect for Retrofit, New Construction and Remodel Applications in low to medium height ceilings. Adapter available for 120V medium base Housings. Universal mounting hardware allows mounting to all standard octagonal electrical junction boxes. Optional Recessed Housing Adapter available.

Benefits

  • Easily mounts to standard octagonal junction box.
  • Removable translucent lens for easy cleaning.
  • 120V-277V Option
  • Dims down to 5% with Triac Dimmers
  • 1,300 Delivered Lumens (3,000K) (80 lm/w)
  • 90+ CRI!

Available Features
?

Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

* 0-10V Dimming Only

**LCMLD9-T30 - DISCONTINUED

Dimming Diagrams

Ready2Ship Items

  • LCMLD9-T40
  • LCMLD9UE-T30
  • LCMLD9UE-TS2750
