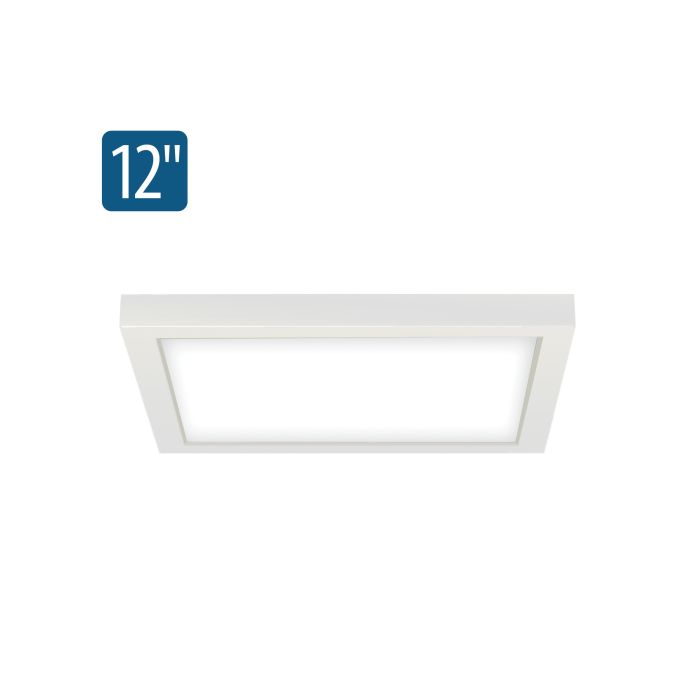

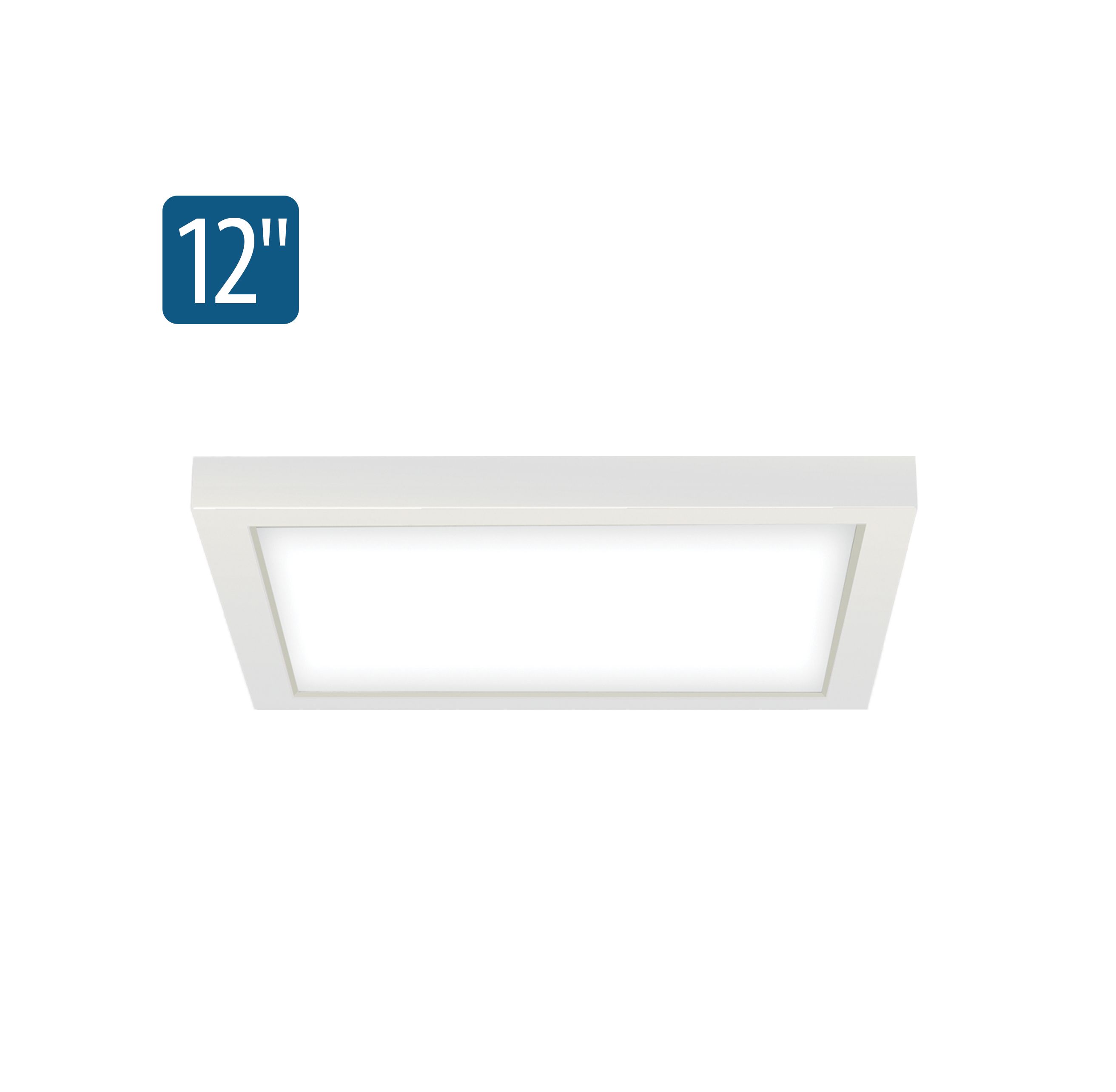

LCMPD12Q : 12" LumenPad Square LED Downlight Surface Mount 2000lm (22W)

Description

LITON is proud to introduce our new super-sleek, super-slim, surface-mount 12” Square and 12" Round Lumen Pads! Offering a unique combination of innovative, elegantly minimalist design & high-quality LED performance, these ultra-low-profile luminaires are the ideal, easy-install alternatives to recessed lighting for plenum-challenged spaces with low-to-medium (average) ceiling heights.

12" Architectural Surface Mount Downlight is perfect for Retrofit, New Construction and Remodel Applications in low to medium height ceilings. Super thin profile is unobtrusive in design and has low glare. The lens is a Poly Carbonate Frosted White Lens.

Benefits

  • Easily mounts to standard octagonal junction box.

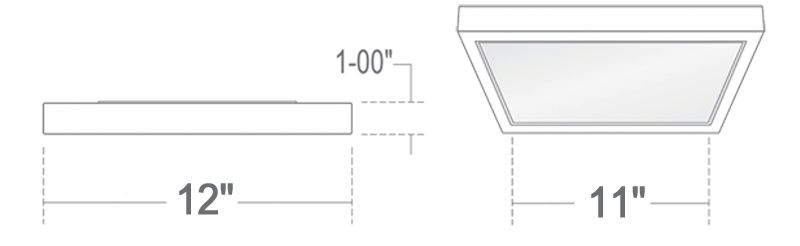

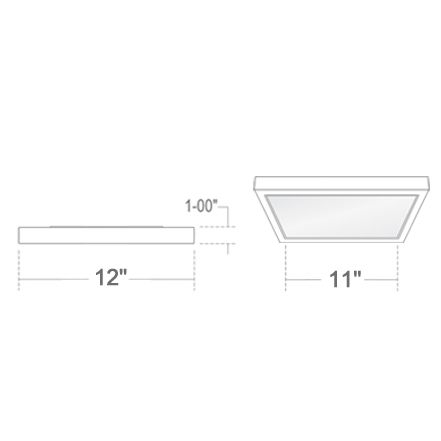

  • Super Slim 1" thick design.
  • No-glare side-lit illumination.
  • Die-cast aluminum frame.
  • Suitable for temperature down to -4°F/-20°C
  • WET LOCATION – For covered ceiling mount only.

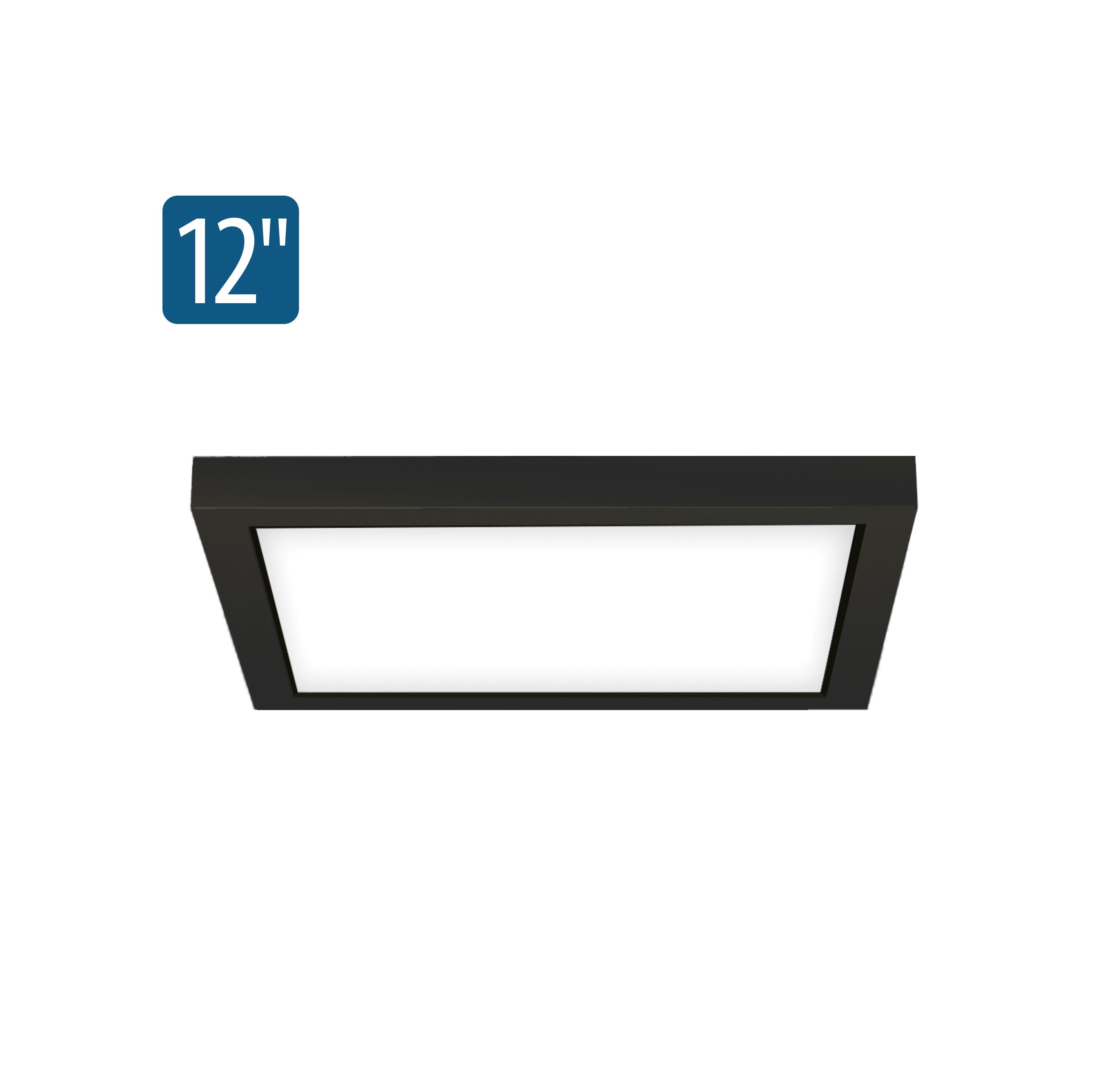

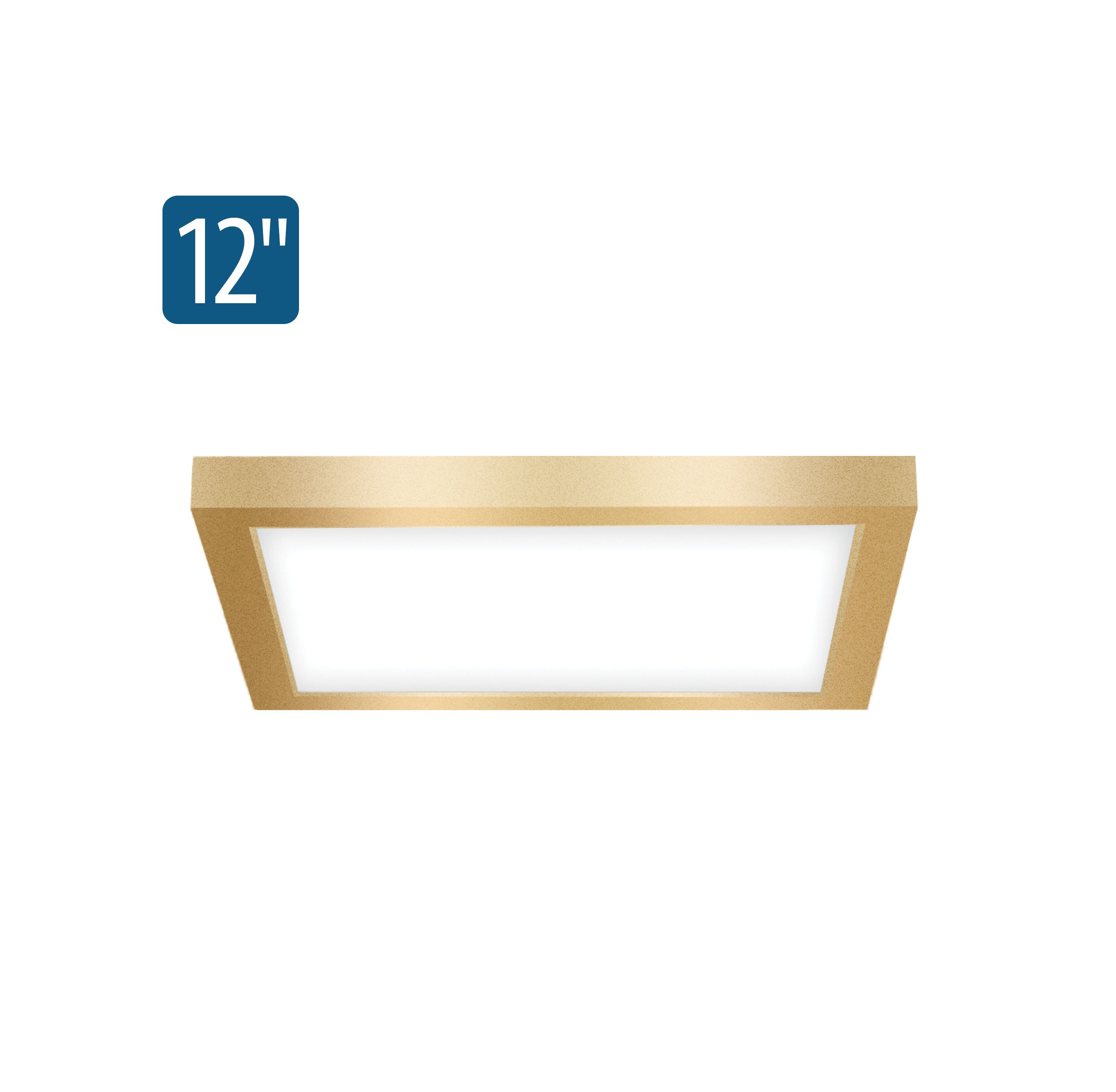

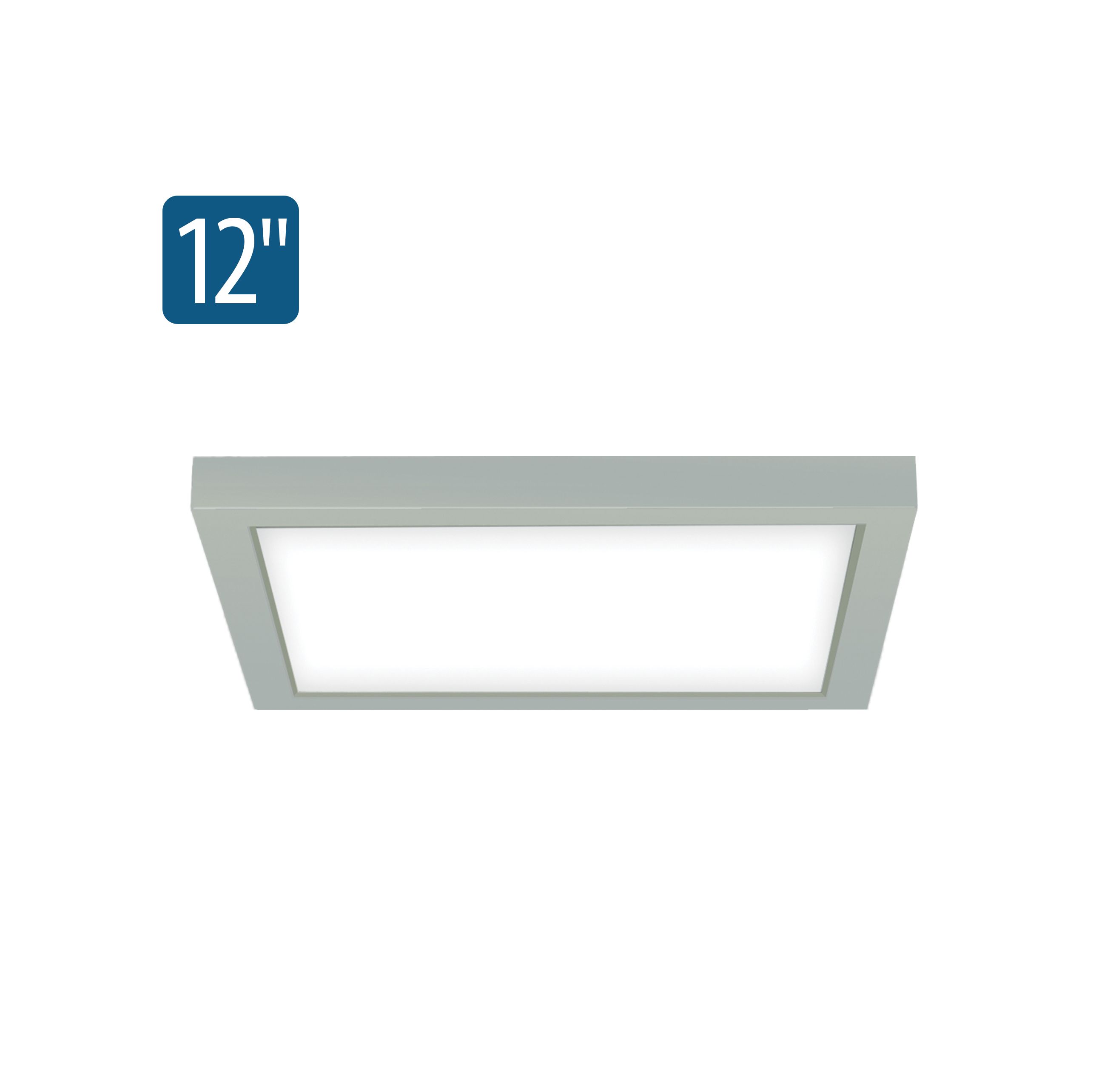

  • Black, Bronze, Silver and Matt Gold finishes available
  • California Title 24/JA8 Compliant
  • Multiple Wireless Control Options

Available Features
?

  • ADA Compliant
  • Emergency
  • ETL Listed
  • Title 24
  • Wet Location
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • 120V
  • 277V

Order Configurator

1 Field paintable ring options available. Consult factory.
2 California Title 24/JA8 compliant with (Blank) ELV dimming (120V) only.
3 Requires 4" Octagon Electrical Box, 2-1/8" deep min. to install this luminaire.
4 Remote Emergency Battery Back Up Option only available for (UE-D10).
5 Special Order. Extended lead time.
6 Special Order. Must be ordered with LCMP7Q-EMA-BLANK.

Energy Star Qualified Items

None


Title 24/JA8 Compliant Items

  • LCMPD12Q-T27
  • LCMPD12Q-T30
  • LCMPD12Q-T35
  • LCMPD12Q-T40
  • LCMPD12Q-TS354
