Description

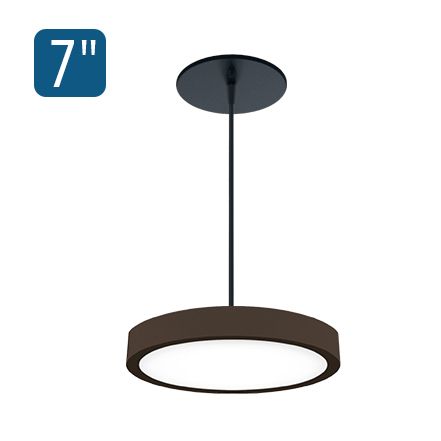

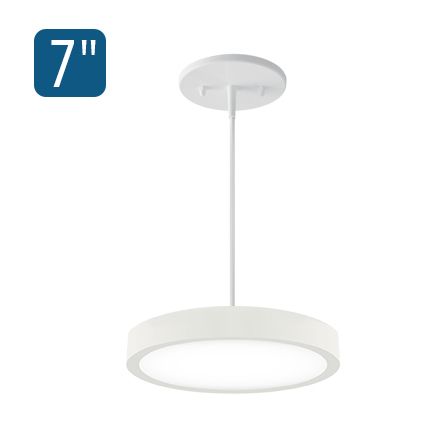

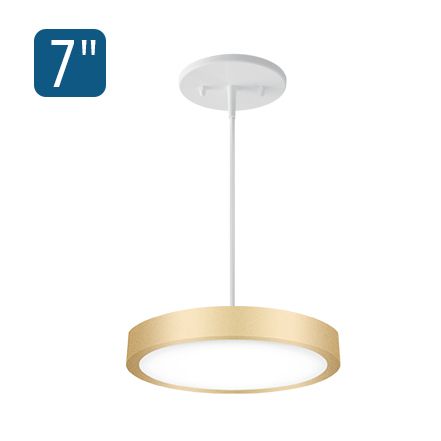

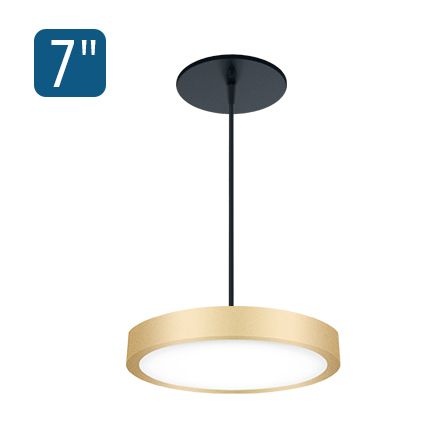

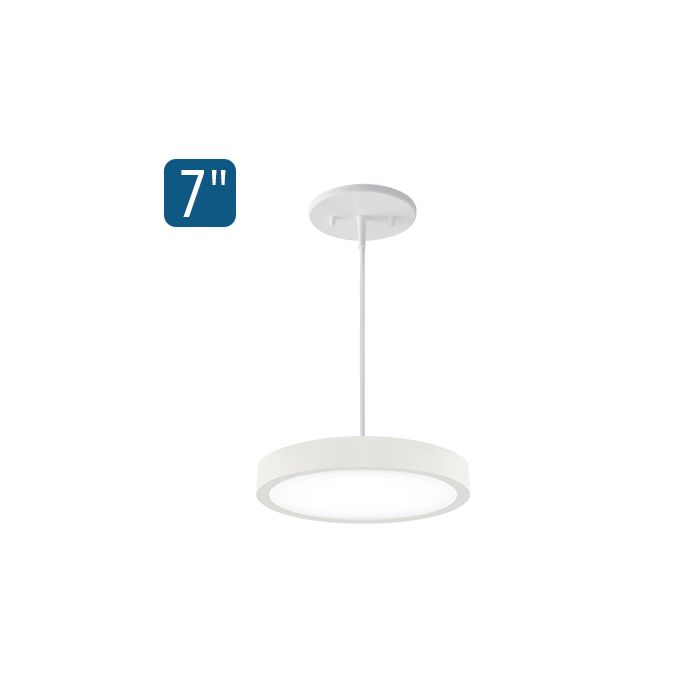

The 7" LumenPad Round LED Downlight Pendant Mount floats with elegance in contemporary architectural applications, a unique combination of innovative, elegantly minimalist design and high-quality LED performance. The luminaire is perfect for Retrofit, New Construction and Remodel Applications in low to medium height ceilings. Super thin profile is unobtrusive in design and has low glare. Lens is a Polycarbonate Frosted White Lens.

Benefits

  • 14W, 1300 Lumen Package
  • Color Rendering Index: 90 CRI
  • Lamp Equivalent: 65W BR30

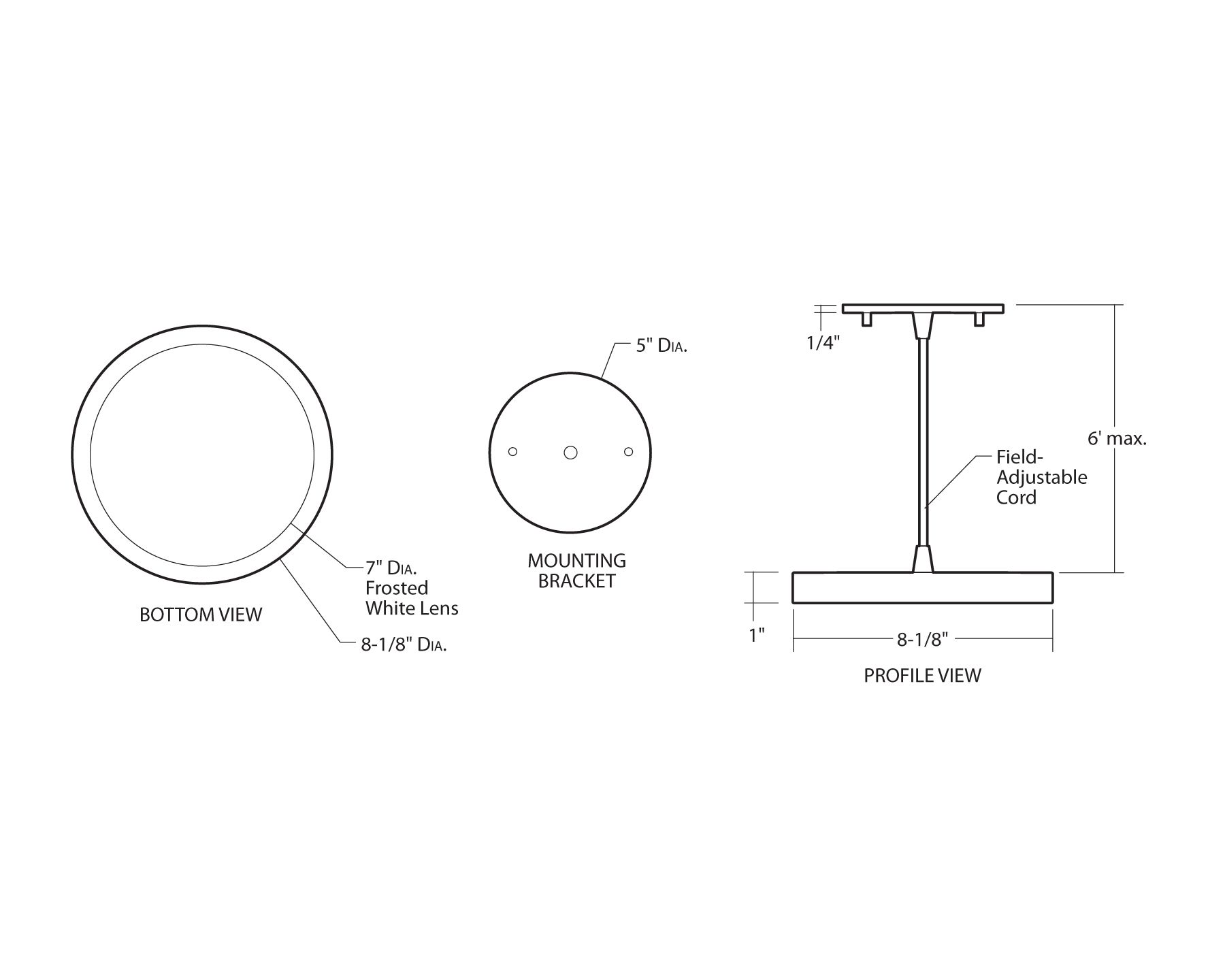

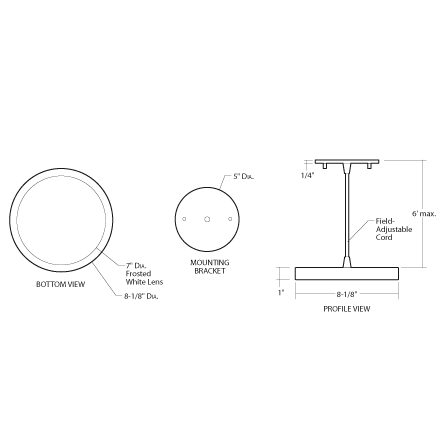

  • Super Slim 1" thick with die-cast aluminum frame
  • Field-adjustable, 6' max. length Pendant
  • Optional 1000lm Uplight available

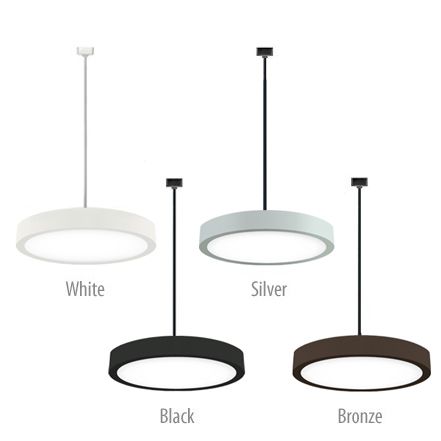

  • Black, Bronze, Silver, and Matt Gold finishes available
  • California Title 24/JA8 Compliant
  • Multiple Wireless Control Options

Available Features
?

  • ETL Listed
  • US Assembled
  • Title 24
  • Dedicated LED
  • Downlight
  • Uplight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 Special Order for Non-Conductive Polycarbonate.
2 Field paintable ring options available. Consult factory.
3 California Title 24/JA8 compliant with (Blank) ELV dimming (120V) only.
4 Requires 4" Octagon Electrical Box, 2-1/8" deep min. to install this luminaire.
5 Remote Emergency Battery Back Up Option only available for (UE-D10).
6 ELV Dimming (120V) not available for -TS2750 and -TS50.
7 Not available for Uplight.
8 Special Order. Extended lead time.
9 Uplight option -LU10 is (120V) input only.
10 Special Order. Must be ordered with LCMPD7-EMA-BLANK.

Dimming Diagrams

Energy Star Qualified Items

None



Title 24/JA8 Compliant Items

  • LCMPD7RP-T27
  • LCMPD7RP-T30
  • LCMPD7RP-T35
  • LCMPD7RP-T40
  • LCMPD7RP-TS354
