LRCELD802 : 8" Commercial Shallow LED Retrofit (1300 Lumen LED)

Phase Out
8" Commercial Shallow LED Retrofit (1300 Lumen LED)
8" Commercial Shallow LED Retrofit (1300 Lumen LED) 8" Commercial Shallow LED Retrofit (1300 Lumen LED) 8" Commercial Shallow LED Retrofit (1300 Lumen LED) 8" Commercial Shallow LED Retrofit (1300 Lumen LED)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

Commercial Retrofit for Open Frame Incandescent, HID and CFL Downlights.

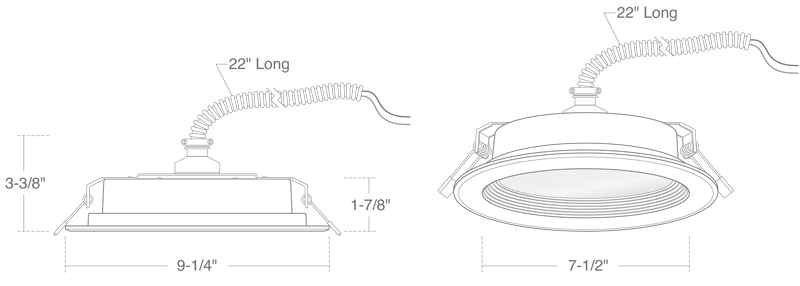

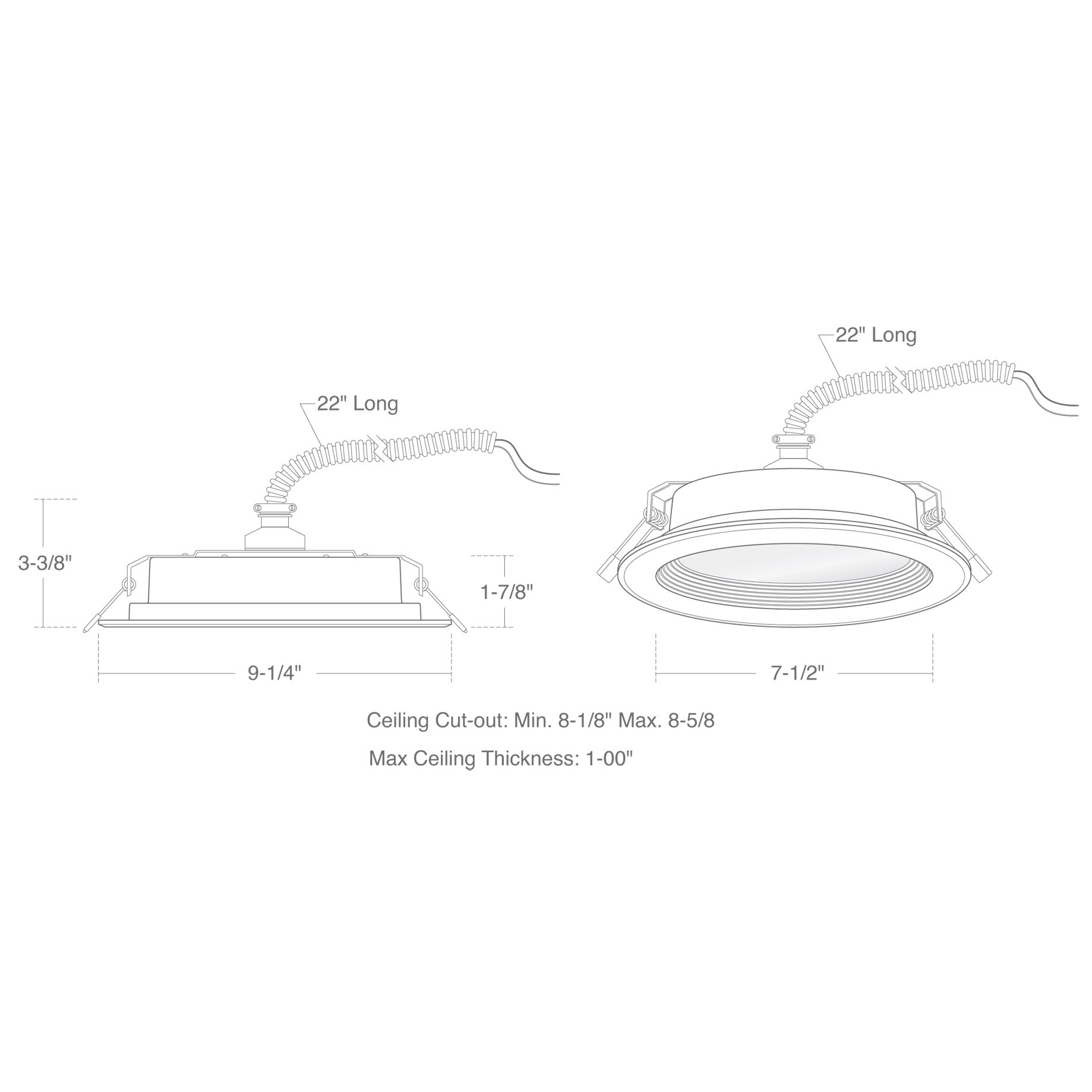

 Application Dimensions

Ceiling Cut-out Min: 8.125" (206mm)

Ceiling Cut-out Max: 8.625" (220mm)

Flange Diameter: 9.25" (235mm)

Benefits

  • Easy to install
  • Pre-mounted steel spring clips secure trim to virtually all 8" frame-in housings
  • Fits up to 2 1/4" Ceiling Thickness
  • (-DIN) option works with most 2-Wire Incandescent Dimmers
  • Compatible with Lithonia LP6U, Lightolier 1002PI and Portfolio CD6 Series*

    *Requires LITON OVP6 Ring Adapter.

Available Features
?

  • Damp Location
  • Dead Front - Non-Conductive
  • ETL Listed
  • US Assembled
  • Wet Location
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • 120V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?
347V Input with 0-10V Dimming available. Consult factory for lead times.

Description

Ideal for low to high ceiling heights in commercial applications that require smooth ambient lighting without sacrificing footcandles.
*Available in August 2017

Dimming Diagrams
