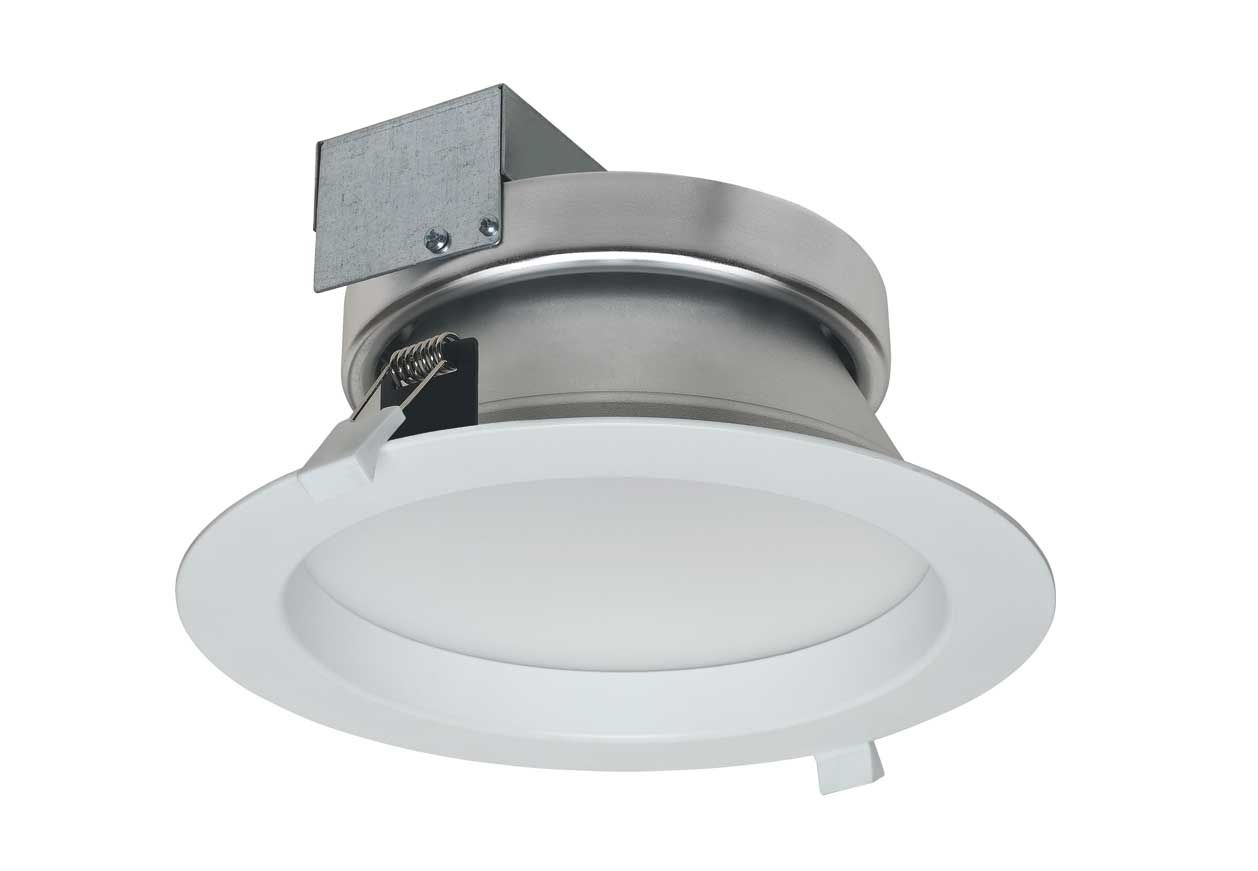

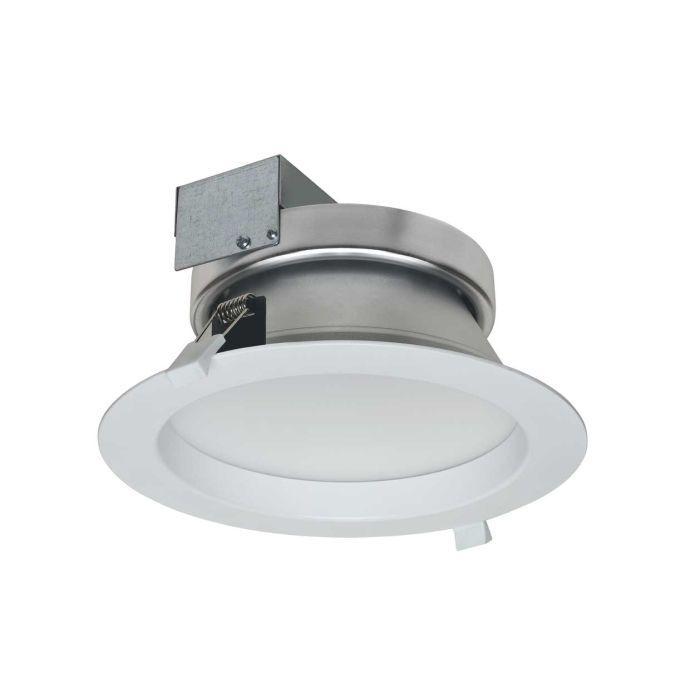

LRCLD802 : 8" C • Series Architectural Shallow LED Retrofit (1200/1900 Lumen LED)

8" C • Series Architectural Shallow LED Retrofit (1200/1900 Lumen LED)
8" C • Series Architectural Shallow LED Retrofit (1200/1900 Lumen LED) 8" C • Series Architectural Shallow LED Retrofit (1200/1900 Lumen LED)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

Commercial Retrofit for Open Frame Incandescent, HID and CFL Downlights.

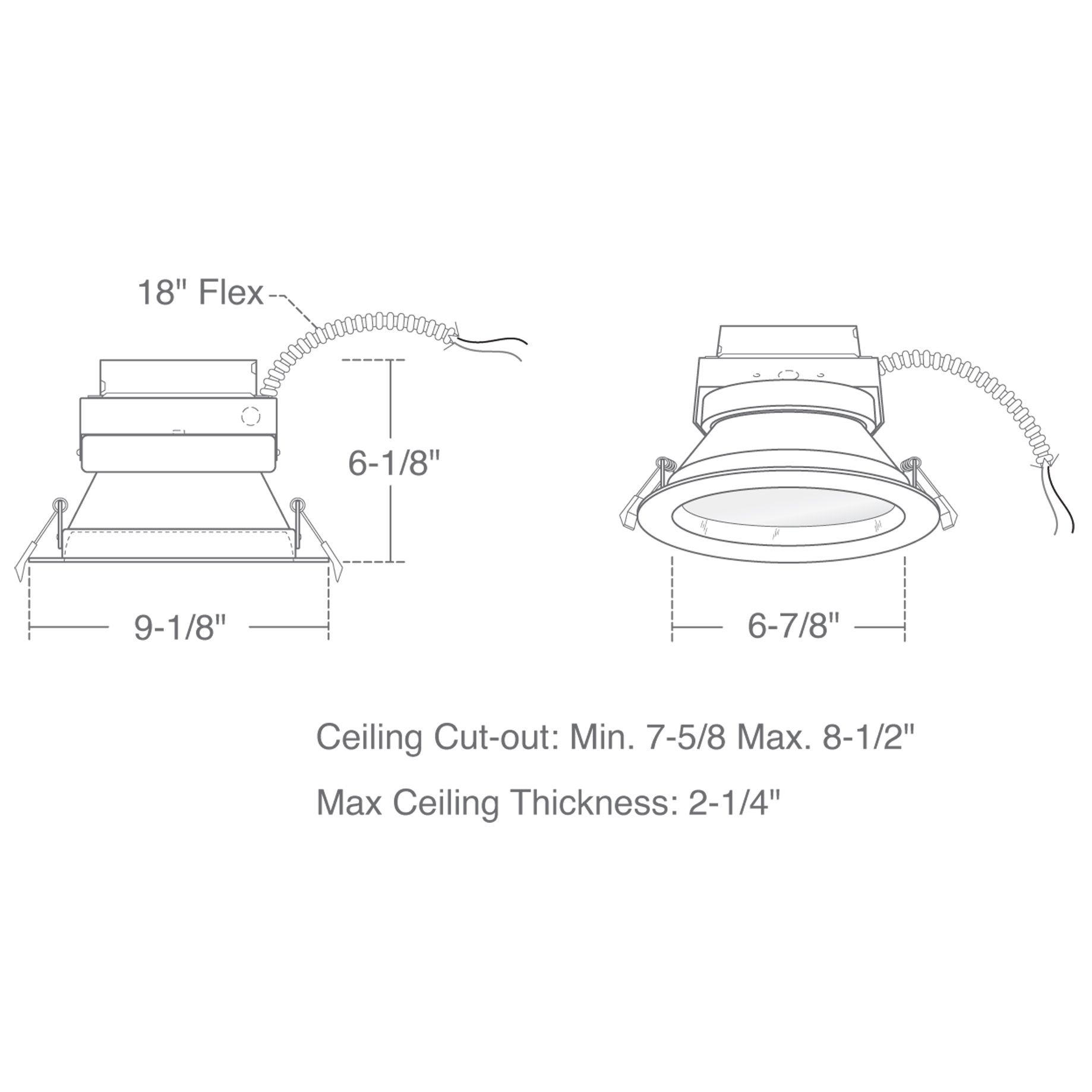

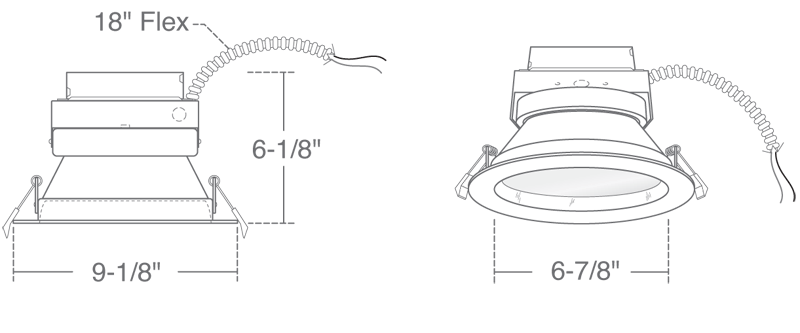

 Application Dimensions

Ceiling Cut-out Min: 7.625" (194mm)

Ceiling Cut-out Max: 8.5" (216mm)

Flange Diameter: 9.125" (232mm)

Benefits

  • Easy to install
  • Pre-mounted steel spring clips secure trim to virtually all 8" frame-in housings
  • Fits up to 2 1/4" Ceiling Thickness
  • Exclusive UniDimTM Universal LED Dimming Option works with 0-10V, ELV and Incandescent Control Systems
  • Standard 4,000K
  • Multiple Wireless Control Options

Available Features
?

  • Damp Location
  • ETL Listed
  • US Assembled
  • Title 24
  • Wet Location
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 Not Available for 12W Option.
2 Special Order.
3 (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications.

4000K Color Temperature is the only available option.

347V Input with 0-10V Dimming available. Consult factory for lead times.

Dimming Diagrams
