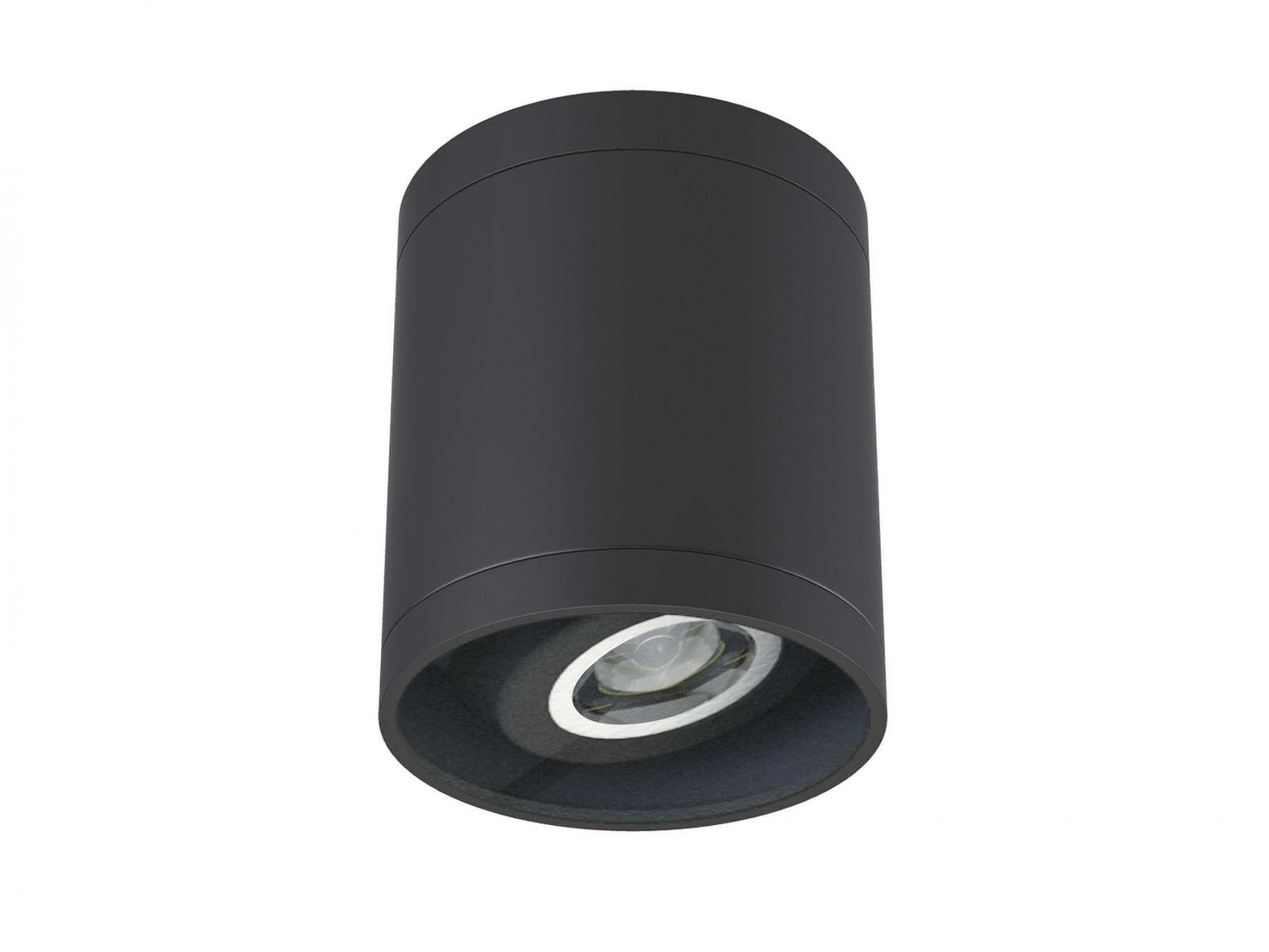

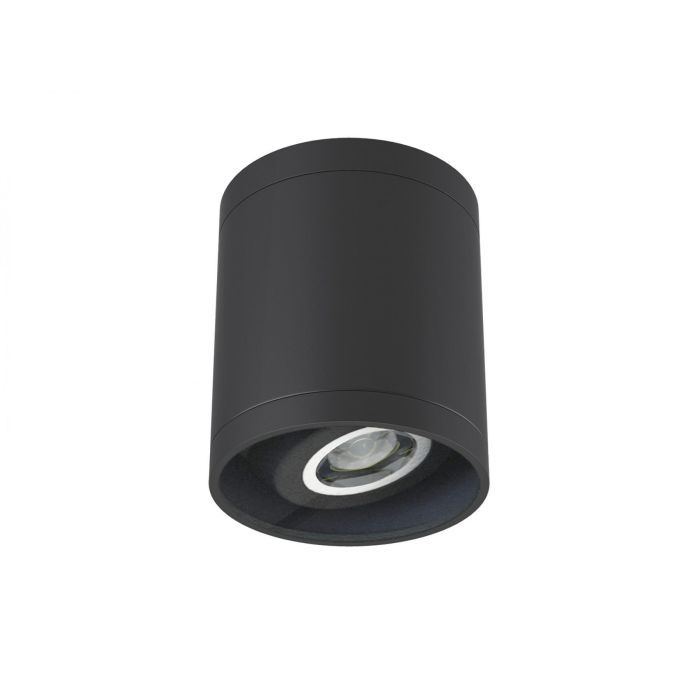

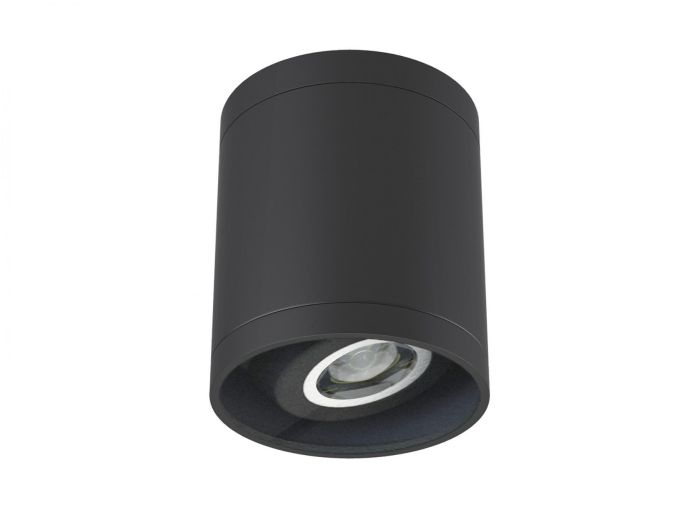

DL340J : 4" Round Adjustable Ceiling Downlight (IP65) 700lm (9W)

4" Round Adjustable Ceiling Downlight (IP65) 700lm (9W)
4" Round Adjustable Ceiling Downlight (IP65) 700lm (9W) 4" Round Adjustable Ceiling Downlight (IP65) 700lm (9W) 4" Round Adjustable Ceiling Downlight (IP65) 700lm (9W) 4" Round Adjustable Ceiling Downlight (IP65) 700lm (9W) 4" Round Adjustable Ceiling Downlight (IP65) 700lm (9W) 4" Round Adjustable Ceiling Downlight (IP65) 700lm (9W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

This DL Series covered adjustable ceiling mount downlight can be used for surface ceiling or pendant mount in both interior and outdoor settings. Typical locations are in commercial and retail spaces that require lighting from above. Dark Sky compliant.

Benefits

  • Energy efficient, low glare LED Chip-On-Board light engine
  • Durable, corrosion resistant finish
  • Emergency back up available
  • Singular COB Light Source
  • 5-Year limited warranty
  • Multiple Wireless Control Options

"Now with Integral Emergency Option!"

Available Features
?

  • Cold Weather
  • Dark Sky Compliant
  • Emergency
  • ETL Listed
  • Marine Grade
  • Outdoor
  • US Assembled
  • Tamper Resistant
  • Wet Location
  • Dedicated LED
  • Adjustable
  • Downlight
  • Wall Wash
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 -EMA & -EMA/PM for 15W max.
2 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult factory.
3 Must be ordered with Pendant mount accessory (LPCMDL4).
4 347V Input with 0-10V Dimming available. Consult factory for lead times.
5 See specification sheet for breakdown of -JB option.
6 Standard option only available for Black (B), and White (W) finish. For alternate finishes; contact factory for pricing. Extended lead time may apply.
7 (-EMA), (-EMA/PM), and (-JB) are not compatible with (-CW) option.
8 Must be ordered with (-JB).
9 Special Order. (-EMA), (-EMA/PM), and (-JB) are not compatible with (-DBNT) option.
10 Special Order. Sent with surface mount JBOX to allow for direct-conduit entry.

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Combined Spec Sheets

Dimming Diagrams
