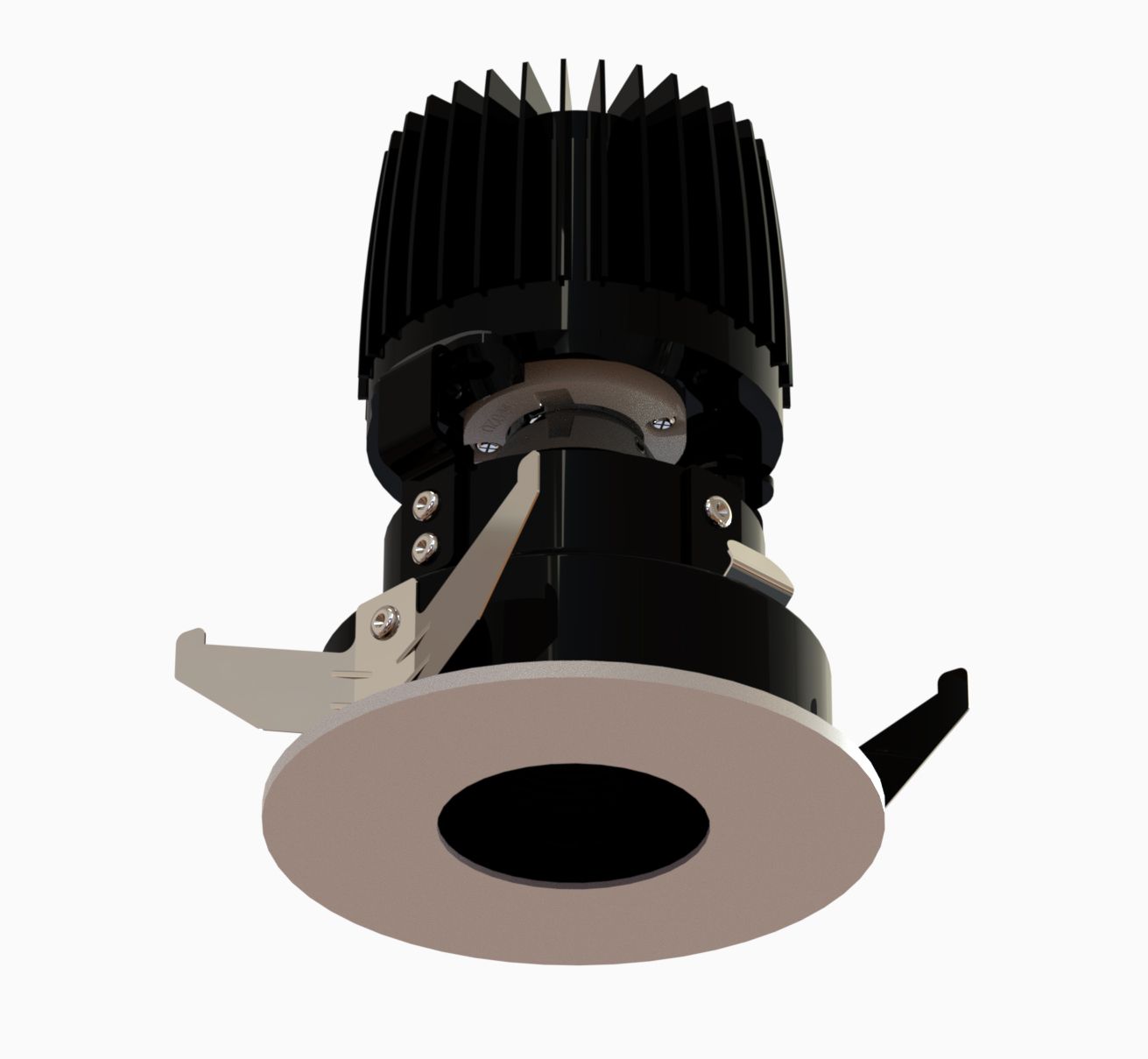

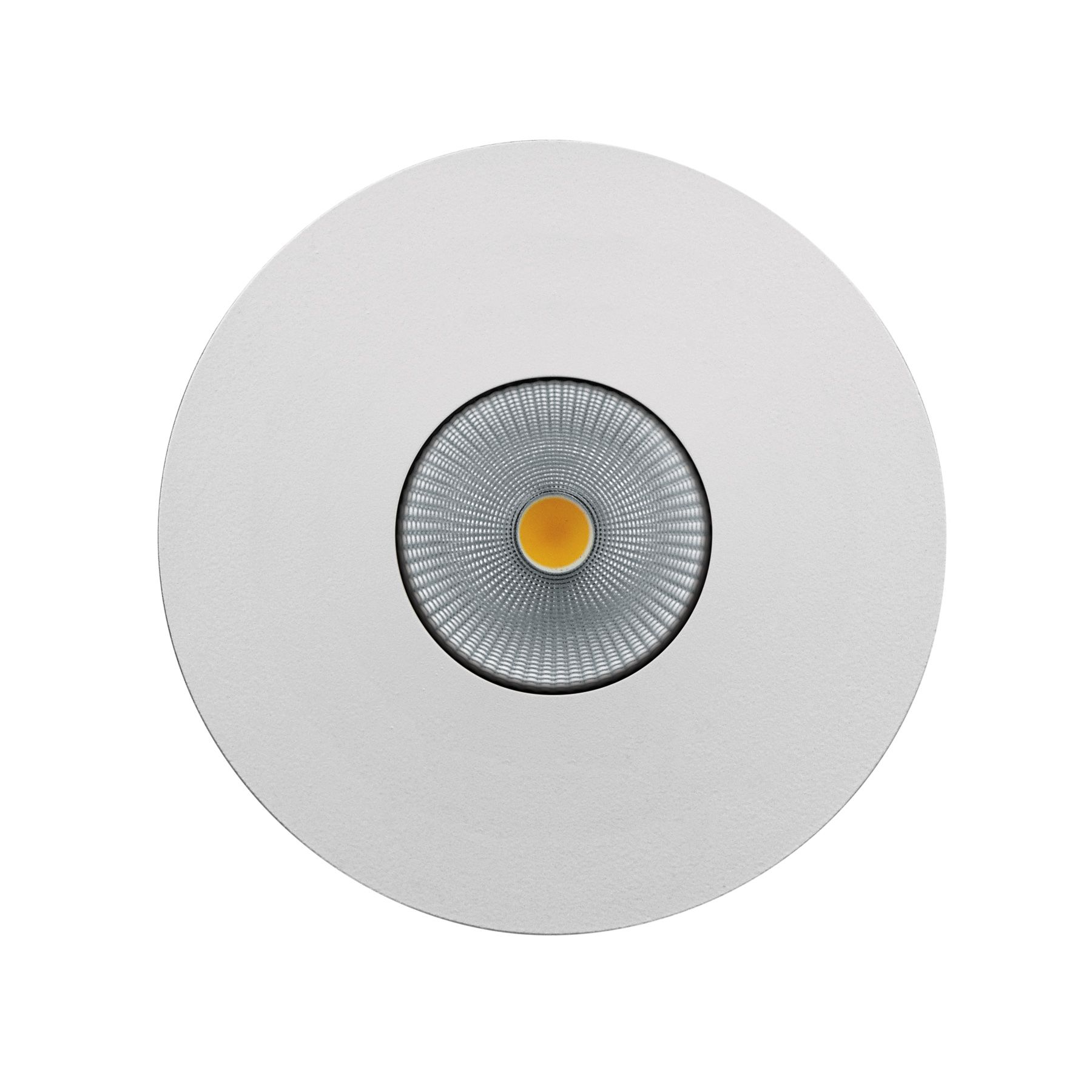

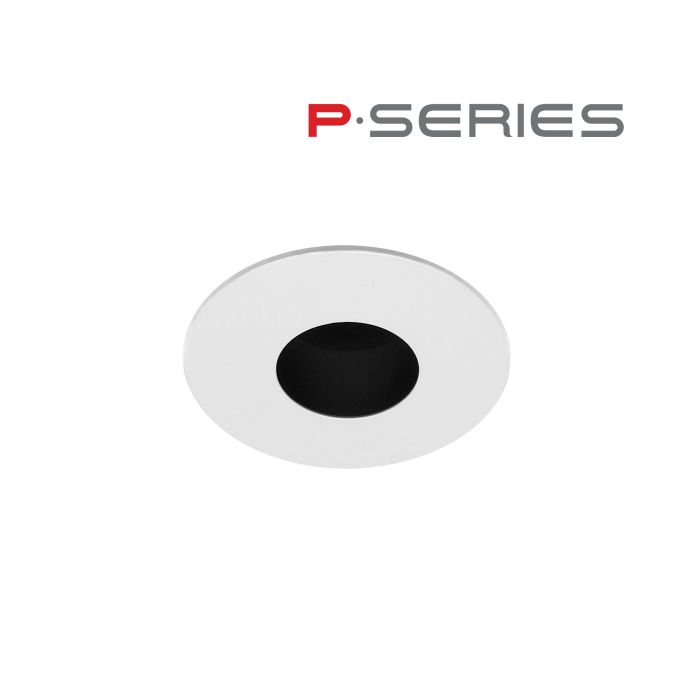

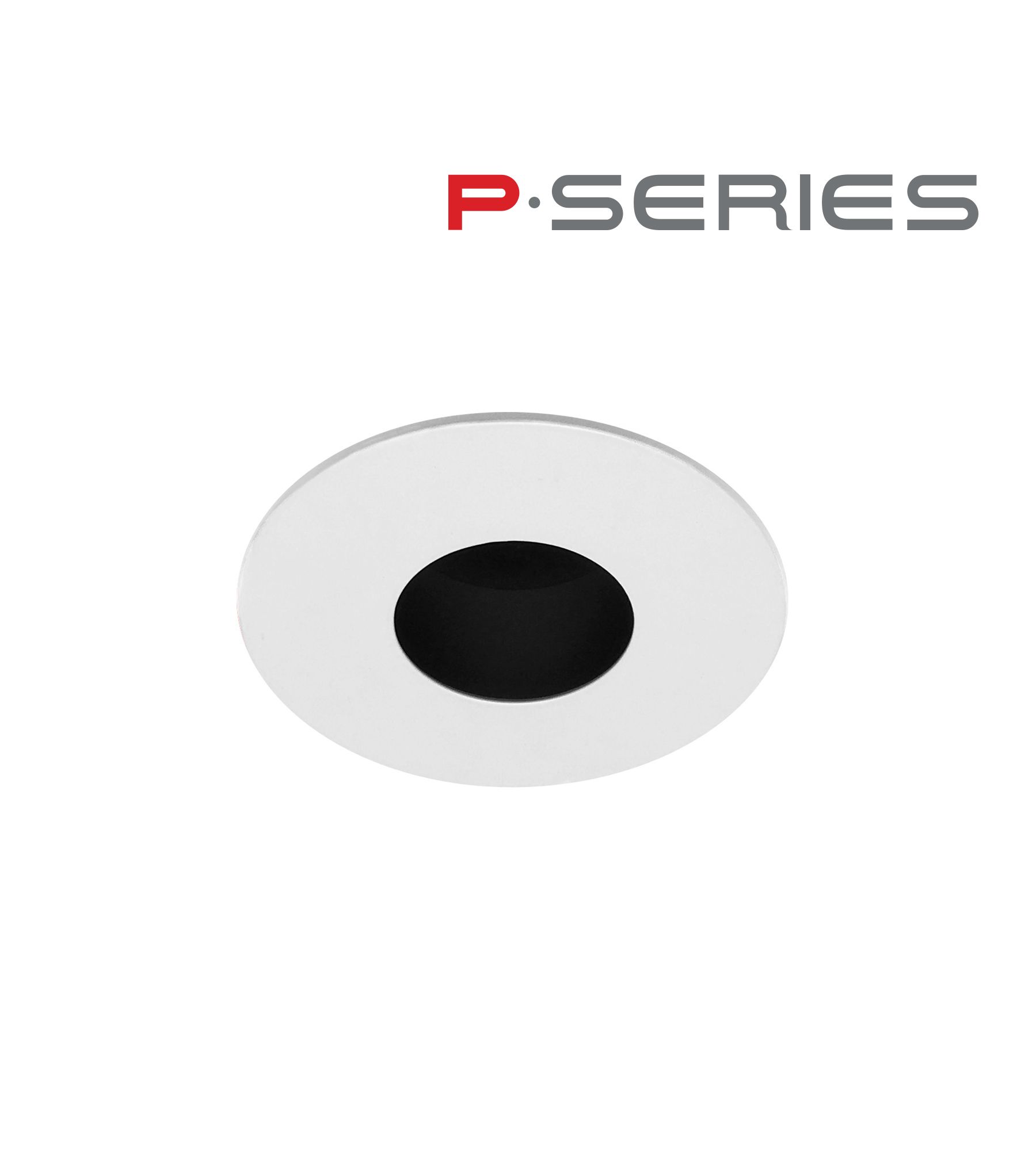

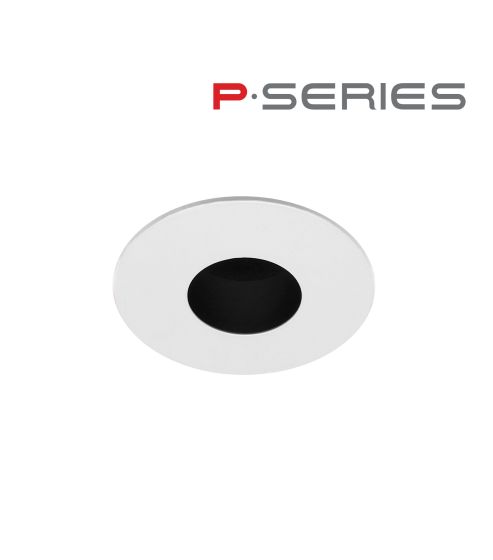

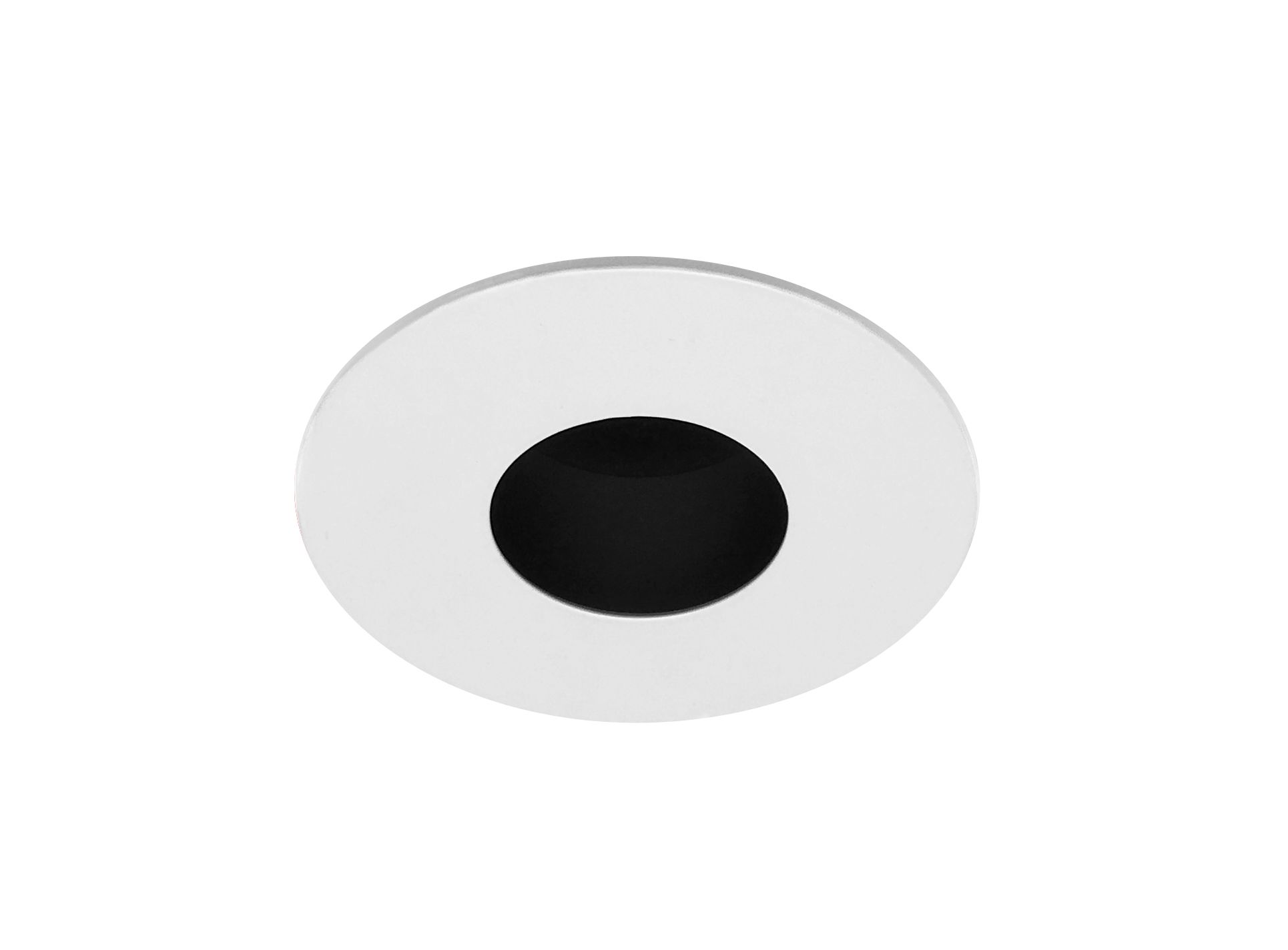

LRLD2519 : 2.5" Recessed LED Round Pinhole, 600LM/980LM/1400LM

2.5" Recessed LED Round Pinhole, 600LM/980LM/1400LM
2.5" Recessed LED Round Pinhole, 600LM/980LM/1400LM 2.5" Recessed LED Round Pinhole, 600LM/980LM/1400LM 2.5" Recessed LED Round Pinhole, 600LM/980LM/1400LM 2.5" Recessed LED Round Pinhole, 600LM/980LM/1400LM 2.5" Recessed LED Round Pinhole, 600LM/980LM/1400LM
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

This high-output, miniature pinhole LED trim has a narrow aperture that greatly reduces glare. Perfect for commercial* and high-end residential applications. Great for isolating objects and restricting the beam to a desired location without leaking into other areas.

*NOTE: For commercial applications with 1/2" Pipe or Flex-Conduit (LITON # PCT031) Fitting Adapter should be used. Consult Factory.

Benefits

  • 600lm (15W), 980lm (22W), and 1400lm (30W) lumen packages
  • Equivalent to 75W MR16 Output
  • Ideal where space is limited and energy savings is important
  • Available Wet Location Option
  • 0.5% dimming for 600lm (-L09), 5% dimming for 980lm (-L14), and 1400lm (-L24).
  • Multiple Wireless Control Options

Available Features
?

  • Chicago Plenum
  • Damp Location
  • ETL Listed
  • US Assembled
  • Wet Location
  • Dedicated LED
  • Downlight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 Special Order.
2 (-TWD) Warm Dimming only available for (-L09) lumen package.
3 (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications.
4 (-TWD) Warm Dimming, (-L14) 1400lm and (-L24) 2400lm are not available for both LHLD25IC-FRM (IC) or LHFRLD25 (Fire-Rated)
6 (-T17) 1700K color temperature, (-DEC) Lutron EcoSystem, and (-TWD) Warm Dimming options are not available for 2400lm (-L24) lumen package.

* Special order, minimum order. Lead times apply. Consult factory for emergency battery options.

LRLD2519 and LHLD25-FRM for (-L14) 1200lm is available with LFB2012 for Fire-Rated Application.

NOTE: For commercial applications with 1/2" Pipe or Flex-Conduit (LITON# PCT031) Fitting Adaptor should be used. Consult Factory.

Dimming Diagrams
