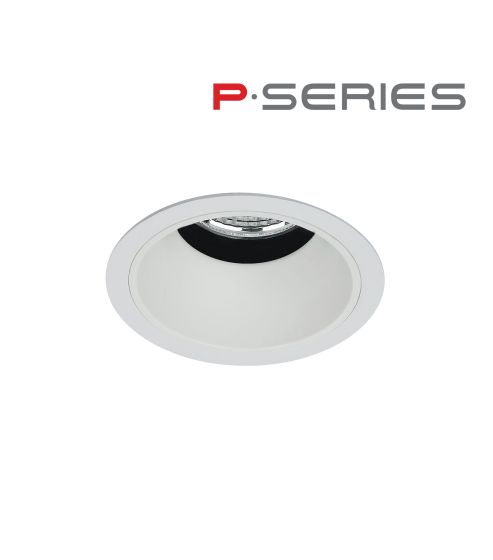

LRLD2521 : 2.5" Recessed LED Round Flanged Downlight, 1000LM - 2400LM (15W-30W)

2.5" Recessed LED Round Flanged Downlight, 1000LM - 2400LM (15W-30W)
2.5" Recessed LED Round Flanged Downlight, 1000LM - 2400LM (15W-30W) 2.5" Recessed LED Round Flanged Downlight, 1000LM - 2400LM (15W-30W) 2.5" Recessed LED Round Flanged Downlight, 1000LM - 2400LM (15W-30W) 2.5" Recessed LED Round Flanged Downlight, 1000LM - 2400LM (15W-30W) 2.5" Recessed LED Round Flanged Downlight, 1000LM - 2400LM (15W-30W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

Perfect for ambient and task downlighting in low to medium height ceilings and high-end residential and commercial applications.

NOTE: For commercial applications with 1/2" Pipe or Flex-Conduit (LITON # PCT031) Fitting Adapter should be used. Consult Factory.

Benefits

  • 1000lm (15W), 1400lm (22W) and 2400lm (30W) lumen packages
  • Equivalent to 75W MR16 Output
  • Ideal where space is limited and energy savings is important
  • Field Replaceable Beam Spread Optics
  • Lockable Tilt
  • 0.5% for 1000lm (-L09), 5% dimming for 1400lm (-L14) and 2400lm (-L24)
  • Multiple Wireless Control Options

Available Features
?

Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 Not field changeable.
2 Warm Dimming (-TWD) only available for 1000lm (-L09) lumen package.
3 Airtight Lensed (Wet Location) (-WL) not available for LRLD2571.
4 (-TWD)Warming Dimming, (-L14) 1400lm and (-L24) 2400lm are not available for both LHLD25IC-FRM (IC) or LHFRLD25 (Fire-Rated).
5 Achieved through a filter at 600 aperture level.
6 (-B10) Beam Spread, (-T17) 1700K color temperature, (-DEC) Lutron EcoSystem, and (-TWD) Warm Dimming options are not available for 2400lm (-L24) lumen package.
7 (-L09), and (-L14) lumen packages with 120V/277V UniDim™ (UE-DUN) driver option are Energy Star Certified.
8 Special order, minimum order. Lead times apply. Consult factory for emergency battery options.
9 DC: Diecast (Paint applied finish), PC: Polycarbonate (Vacuum metalized finish).
10 (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications.

LRLD2521, LRLD2521J, LRLD2571 and LHQLD25-FRM for (-L14) 1200lm is available with LFB2012 for Fire-Rated Application.
NOTE: For commercial applications with 1/2" Pipe or Flex-Conduit (LITON# PCT031) Fitting Adaptor should be used. Consult Factory.

Dimming Diagrams

Energy Star Qualified Items

(-L09), and (-L14) lumen packages with 120V/277V UniDim™ (UE-DUN) driver option are Energy Star Certified.



Title 24/JA8 Compliant Items

LRLD2521_-L09-B_
LRLD2521_-L09-B_-T27
LRLD2521_-L09-B_-T35
LRLD2521_-L09-B_-T40
LRLD2521_-L14-B_-T27UE-DUN
LRLD2521_-L14-B_-T35UE-DUN
LRLD2521_-L14-B_-T40UE-DUN
LRLD2521_-L14-B_UE-DUN
