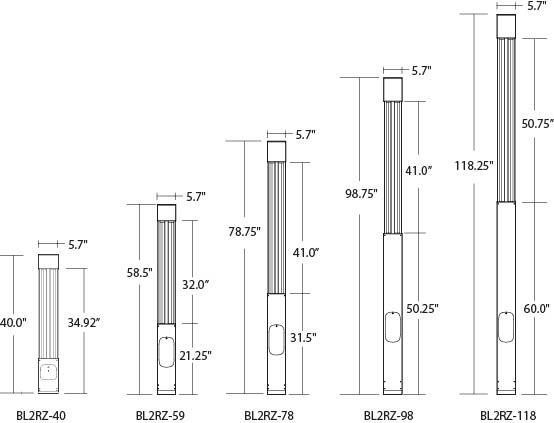

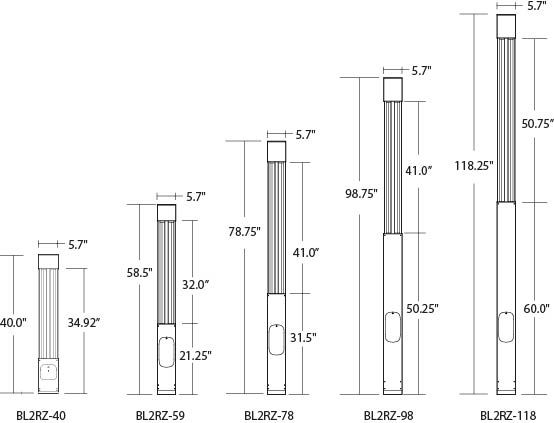

BL2RZ : LumenPole Round Bollard & Column 6" Open Frame - 40", 59", 78", 98", and 118" Height, 1000LM - 2600LM (20W - 50W)

LumenPole Round Bollard & Column 6" Open Frame - 40", 59", 78", 98", and 118" Height, 1000LM - 2600LM (20W - 50W) LumenPole Round Bollard & Column 6" Open Frame - 40", 59", 78", 98", and 118" Height, 1000LM - 2600LM (20W - 50W)
LumenPole Round Bollard & Column 6" Open Frame - 40", 59", 78", 98", and 118" Height, 1000LM - 2600LM (20W - 50W)
LumenPole Round Bollard & Column 6" Open Frame - 40", 59", 78", 98", and 118" Height, 1000LM - 2600LM (20W - 50W) LumenPole Round Bollard & Column 6" Open Frame - 40", 59", 78", 98", and 118" Height, 1000LM - 2600LM (20W - 50W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

6" diameter high-performance line of bollards and column lights designed for decorative lighting, way-marking, public areas, driveways, and access roads.

Benefits

  • Up to 50W, 2600lm delivered
  • Dark Sky Compliant
  • U.S. Assembled
  • Tamper Resistant Hardware
  • IK08 Impact Rating
  • Integral Emergency Option
  • Optional Photocell Sensor
  • Quick Ship Options Available
  • 90 CRI Standard, 80 CRI on 5000K
  • Multiple Wireless Control Options

Available Features
?

  • Cold Weather
  • Dark Sky Compliant
  • Emergency
  • ETL Listed
  • Marine Grade
  • Outdoor
  • US Assembled
  • Tamper Resistant
  • Turtle Safe
  • Wet Location
  • Dedicated LED
  • Pathway Lighting
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 Special order. Minimum order quantity, extended lead time, and setup fee may apply. Consult factory.
2 Not rated for cold weather. Minimum fixture outdoor temperature 0°C/32°F.
3 Starting Temperature -30°C/-22°F.
4 (-L34) and (-L30) Lumen only available with heights: (-144), (-118), and (-98).
5 (-347-D10) is the only Driver option that is (-CW) compatible for Lumens (-L34).
6 (-TAM-LVR) option only available with Lumens -L18 and -L24.
7 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult Factory.
8 (-40) Height only available with (-SYM-W) optic.
9 Special Order. Sent with surface mount JBOX to allow for direct-conduit entry.

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.
Consult factory for possible additional options including: USB, AC outlet, speaker hubs, wireless, node mounting, PC/Motion sensor, 7-pin photocell receptacle (C136.41 compliant) only w/shorting cap, accepts standard twist-lock photocell or PC/Control Node for wireless dimming control.

Video

Dimming Diagrams
