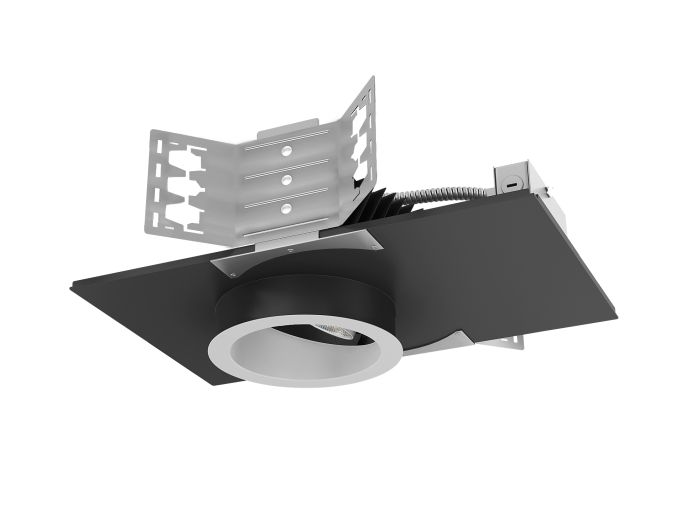

LHAJLD6 : 6" Round LED Adjustable Downlight - 1500lm - 10000lm

6" Round LED Adjustable Downlight - 1500lm - 10000lm 6" Round LED Adjustable Downlight - 1500lm - 10000lm
6" Round LED Adjustable Downlight - 1500lm - 10000lm
6" Round LED Adjustable Downlight - 1500lm - 10000lm 6" Round LED Adjustable Downlight - 1500lm - 10000lm 6" Round LED Adjustable Downlight - 1500lm - 10000lm 6" Round LED Adjustable Downlight - 1500lm - 10000lm 6" Round LED Adjustable Downlight - 1500lm - 10000lm
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

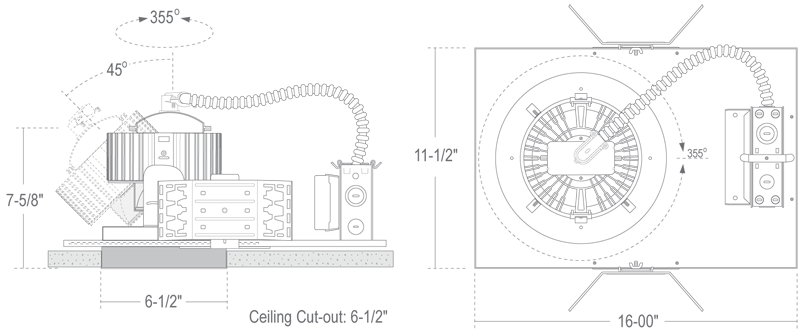

Architectural 6" Adjustable Round LED Housings are designed for medium to high ceiling heights in retail, hospitality, commercial and architectural applications. An advanced ‘hot-aiming’ mechanism allows precise and lockable positioning of the square trim prior to finishing the ceiling. Post-installation adjustment of the beam tilt is possible from below the fixture. Collar bracket provides 30º of rotation, marked in 5º increments, for positioning before drywall installation. Lamp holder assembly allows 35º tilt.

Benefits

  • Features Cree TrueWhite® Technology
  • Functions as a Downlight, Wall Wash or Accent Light
  • Internal adjustments allow precise aiming of the beam
  • Round trim collar rotates to allow exact alignment prior to ceiling finish
  • Multiple Wireless Control Options

Available Features
?

  • Damp Location
  • Emergency
  • ETL Listed
  • US Assembled
  • Sloped Ceiling
  • Dedicated LED
  • Adjustable
  • Ambient Lighting
  • Downlight
  • Wall Wash
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 4000lm, 8000lm and 10,000lm not available with Lutron (HiLume) driver.
2 All drivers are 120V/277V unless otherwise noted.
3 97 CRI available for lumen packages of 5000lm and above.
4 Warm Dimming only available for 1500lm, 2000lm & 2500lm options.
5 Tunable White only available with 0-10V signal via UE-D10P1 option or DMX signal via UE-DMX option for 1500lm, 2000lm, 2500lm, 3000lm & 5000lm option only.
6 Check Wiring Diagrams.
7 DINP1 only available for 1500lm, 2000lm & 2500lm options.
8 Special order. Extended lead time may apply. Consult factory.
9 (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications.
10 Not available for 10,000lm

Dimming Diagrams
