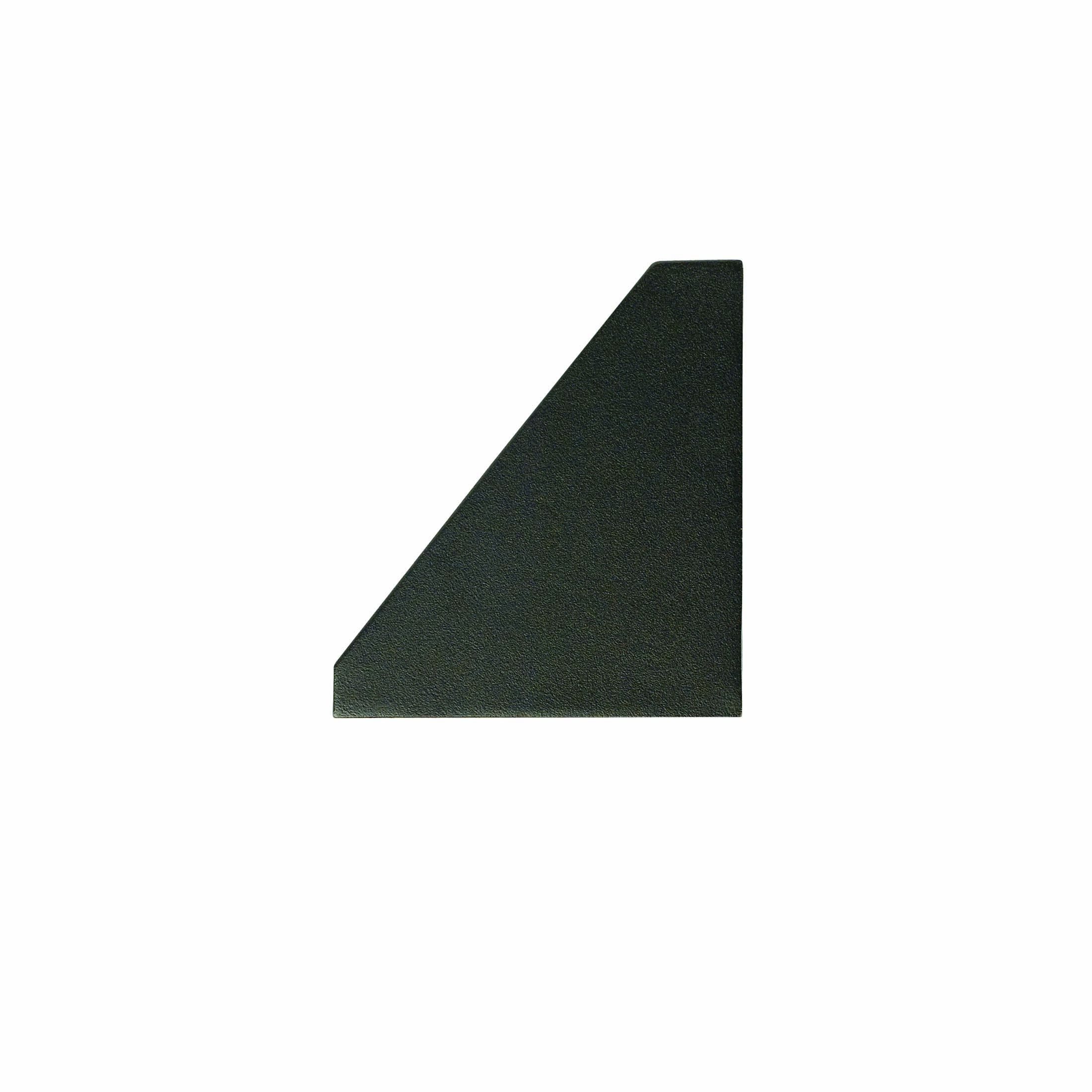

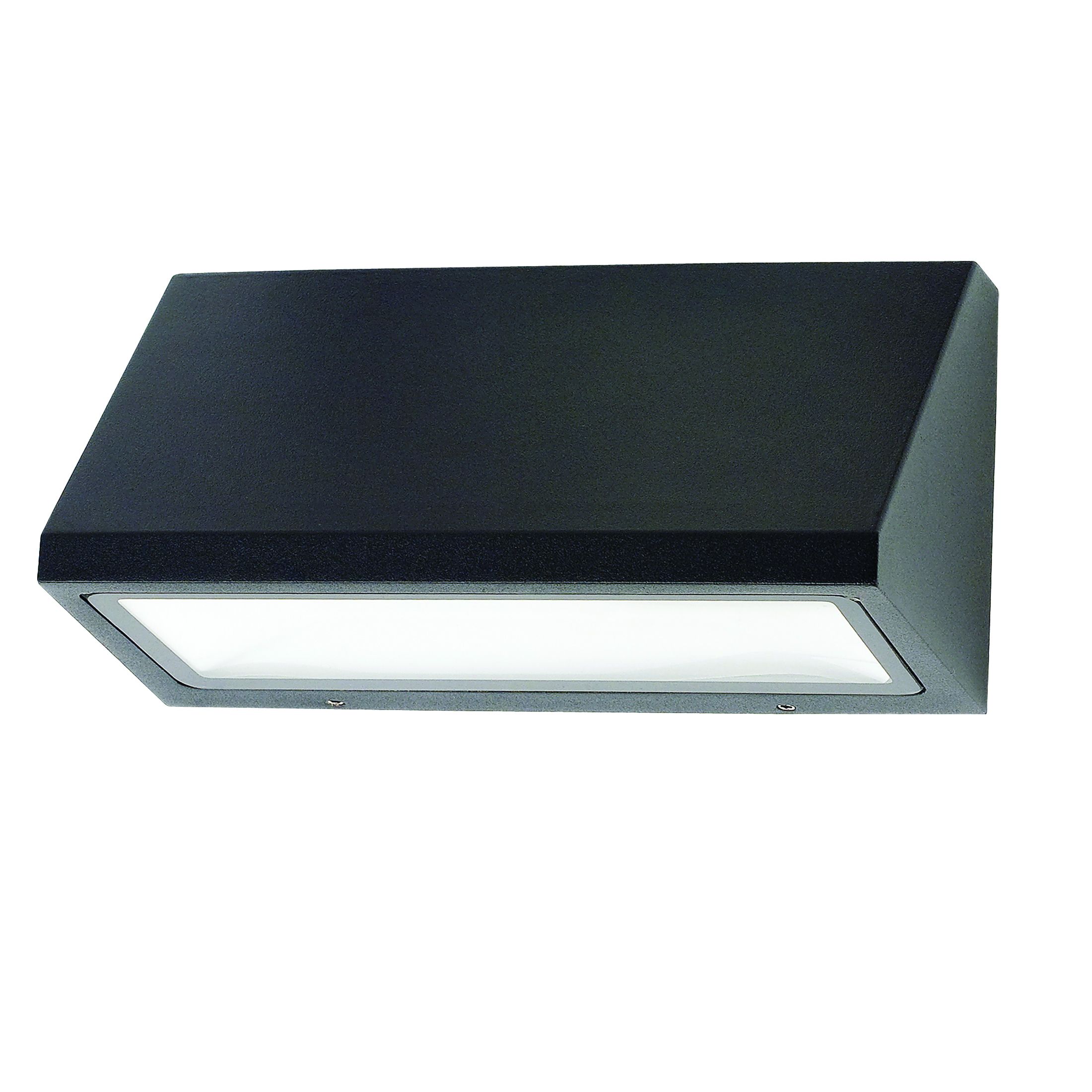

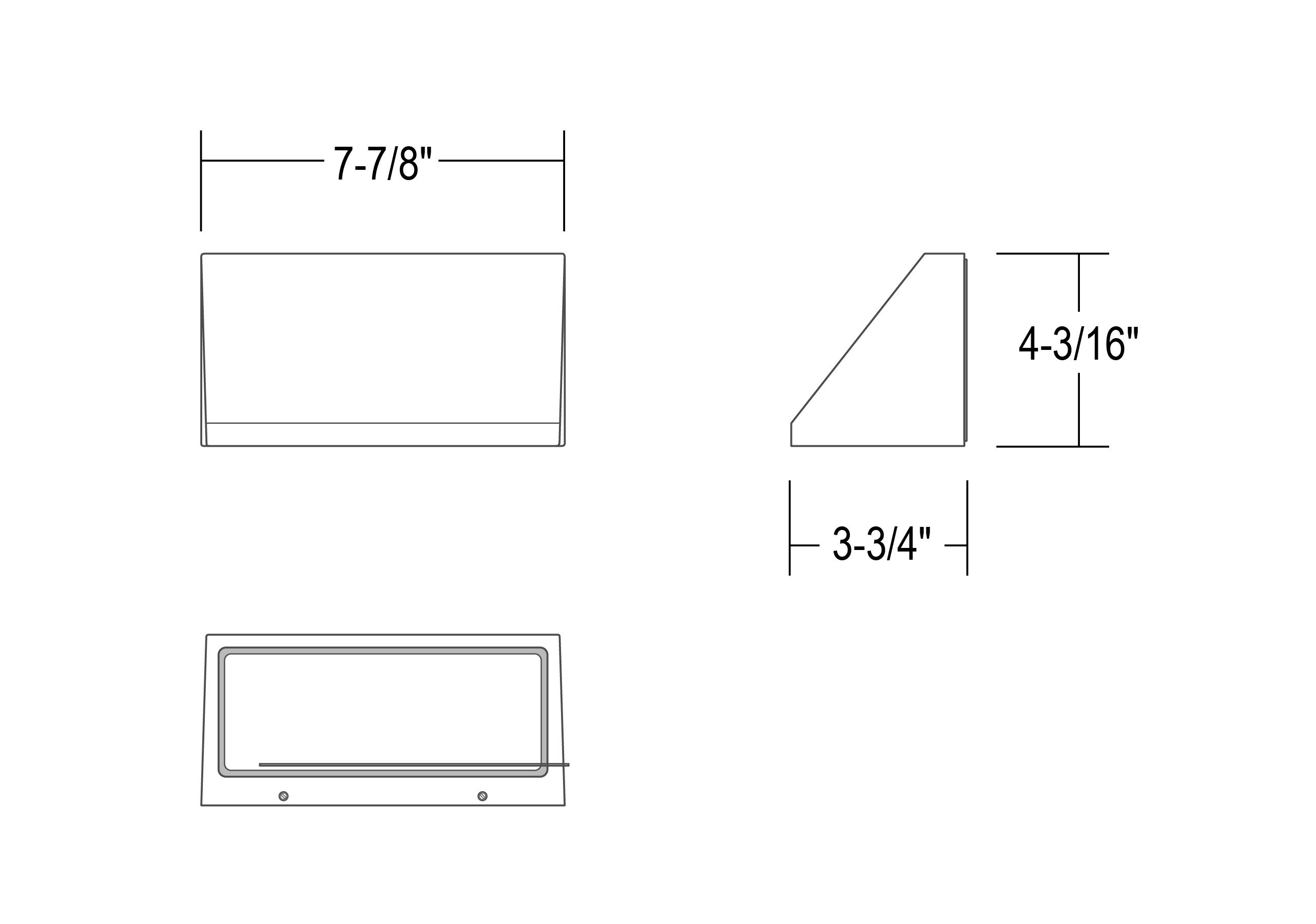

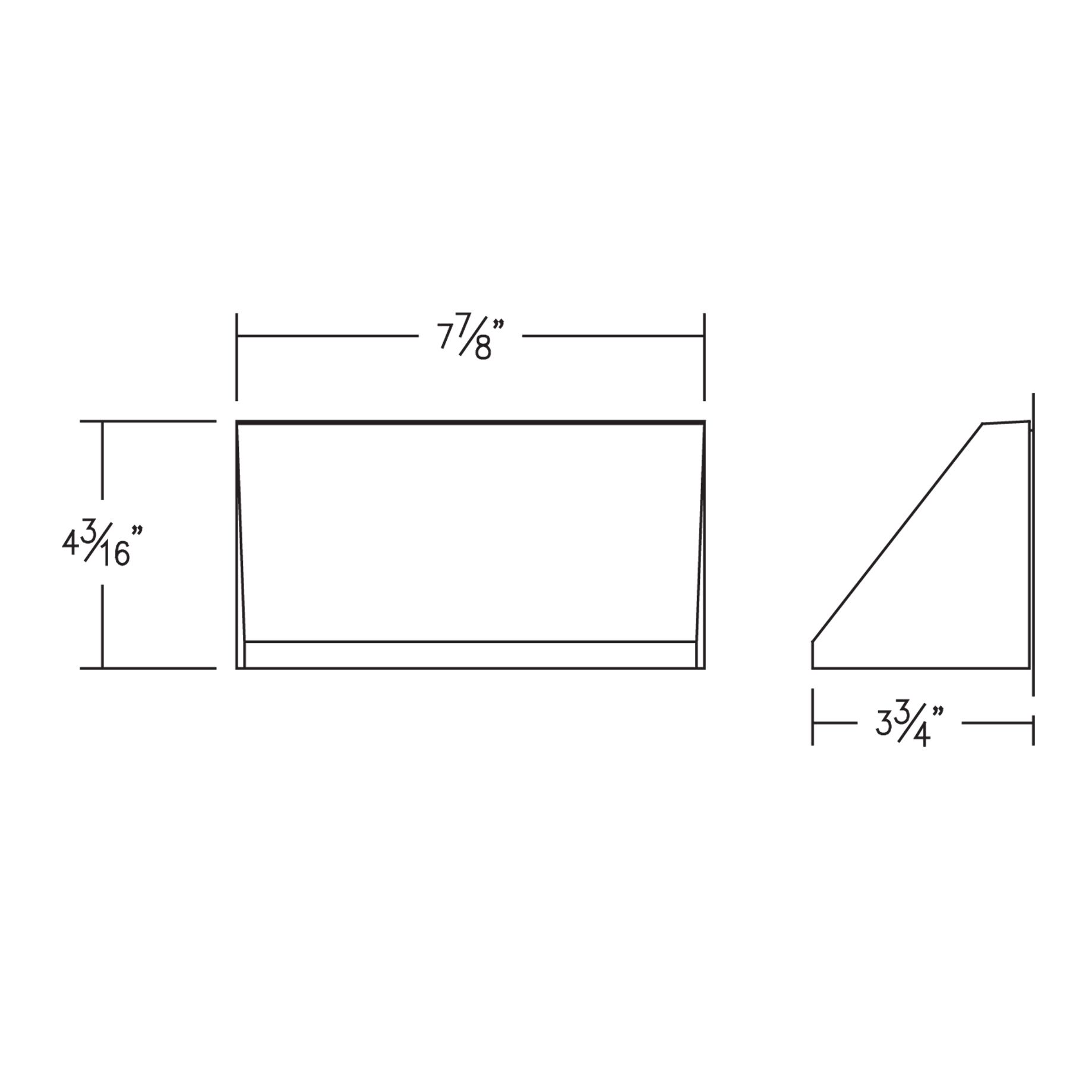

WD1473 : 8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W)

8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W) 8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W)
8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W)
8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W) 8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W) 8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W) 8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W) 8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W) 8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W) 8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W) 8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W) 8" x 4" Trapezoid1-Directional Wall Mount (IP65) 850LM (15W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

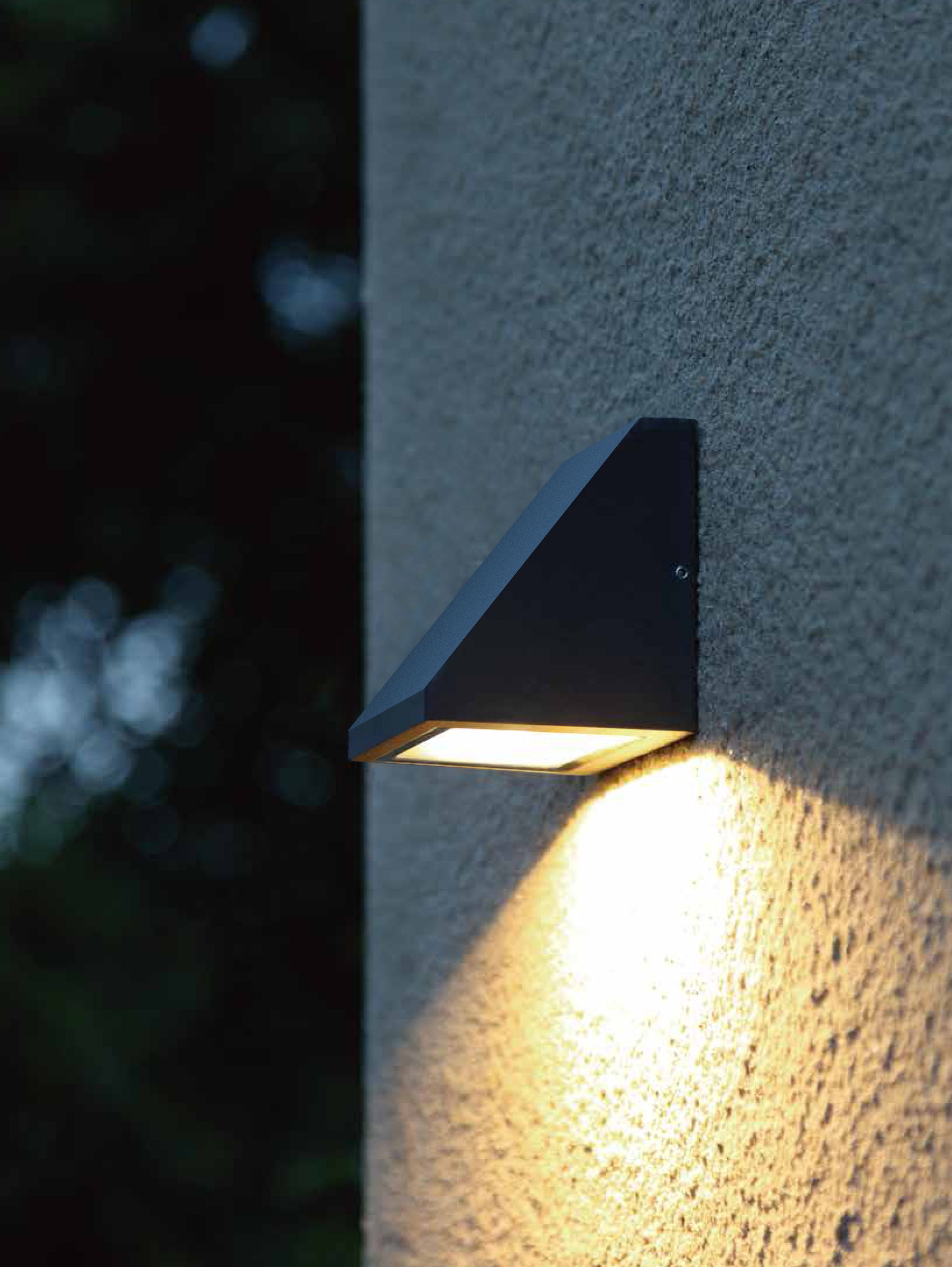

This Miniature Dark Sky Wall Mount is super sleek and architectural in design and can be used in any indoor and outdoor settings.

Benefits

  • Sleek architectural design
  • Durable, corrosion-resistant finish
  • Emergency back-up available
  • 5-year limited warranty
  • Multiple Wireless Control Options

"Now with Integral Emergency Option!"

Available Features
?

  • ADA Compliant
  • Cold Weather
  • Dark Sky Compliant
  • Emergency
  • ETL Listed
  • Marine Grade
  • Outdoor
  • US Assembled
  • Wet Location
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • Pathway Lighting
  • Uplight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 Special Order. Minimum order, extended lead time may apply, and setup fee may apply. Consult factory.
2 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult Factory.
3 Blank EM enclosure available for Non-EM units to provide a seamless design aesthetic when EM enabled products are installed.
4 (-T35) 3500K is not available with (UE-D10P1) or (UE-DUN) dimming options.

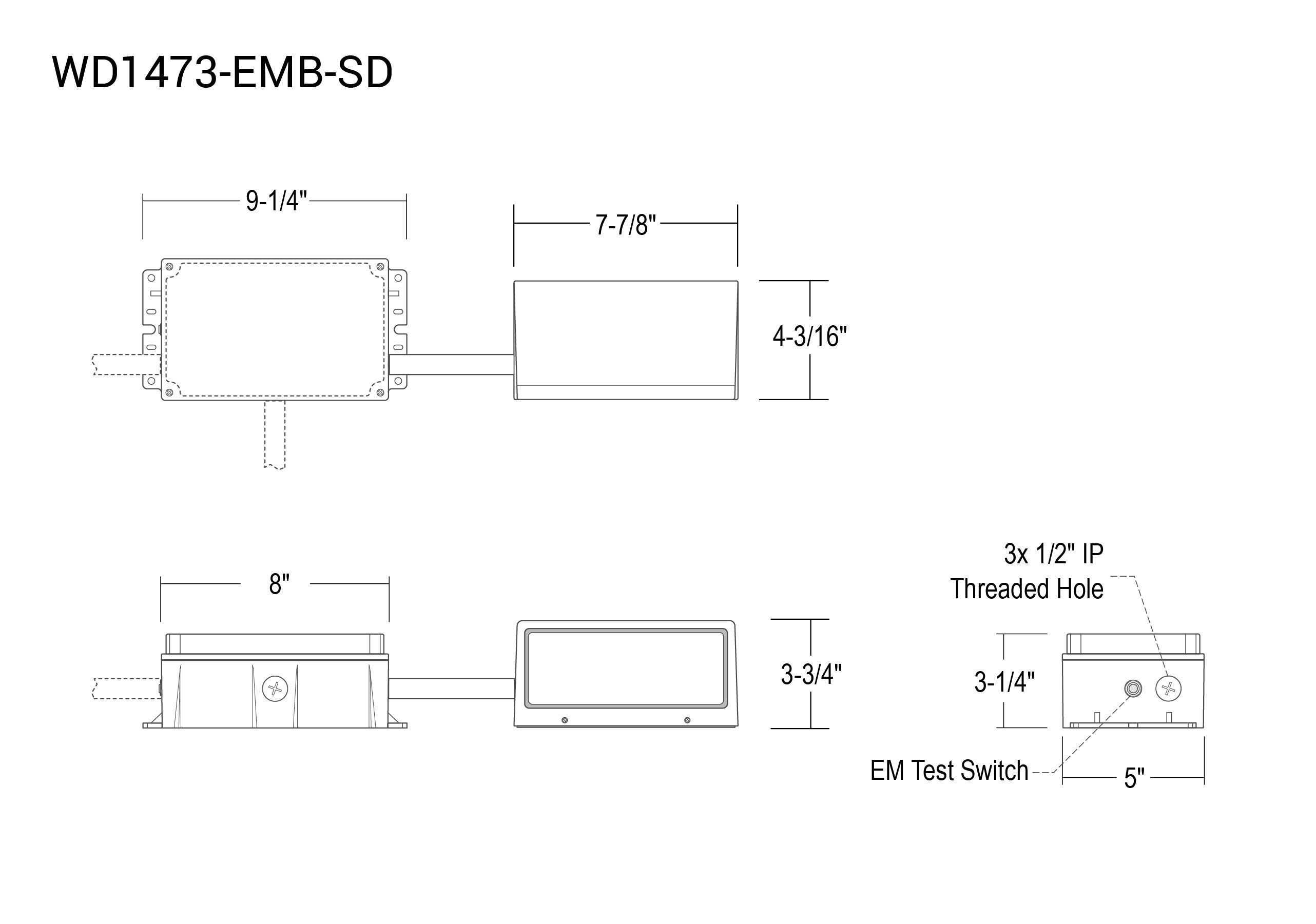

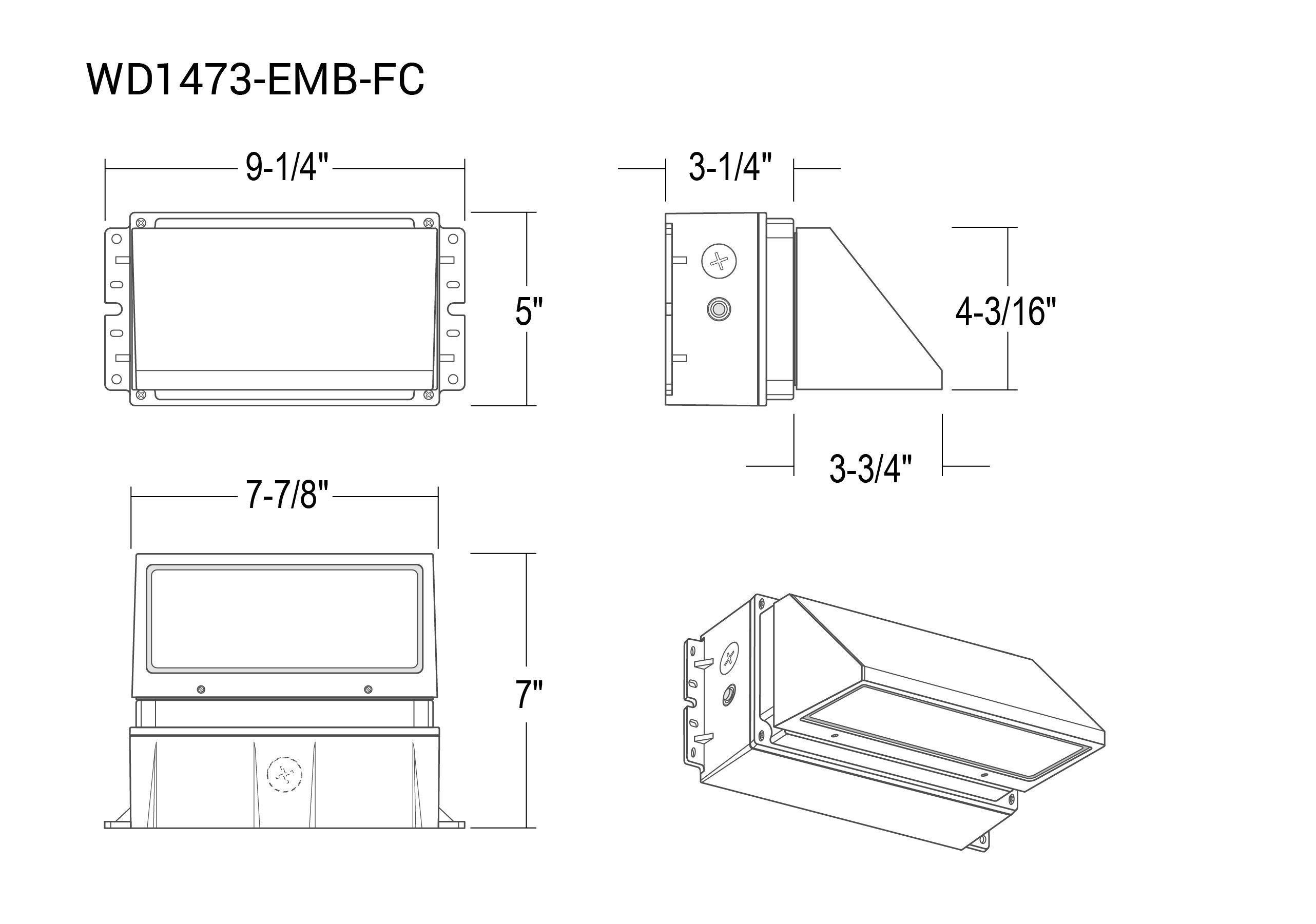

5 (-CW) is not compatible with (-EMB-SD), (-EMB-FC), (UE-D10P1) for 3000K and 4000K, and (UE-D10) for 3500K.
6 (-SUN-INT) sensor integrated into the reflector. Consult Factory for layout assistance or alternate sensor mounting.
7 Special Order. Must be ordered with -EMB-BLANK.

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply.
Consult Factory.

Dimming Diagrams
