CRTR8SHL : 8" C • Series Super Low Glare, Shallow LED Retrofit/Remodel 1100lm - 3000lm (10W-30W)

8" C • Series Super Low Glare, Shallow LED Retrofit/Remodel 1100lm - 3000lm (10W-30W) 8" C • Series Super Low Glare, Shallow LED Retrofit/Remodel 1100lm - 3000lm (10W-30W)

Description

Architectural/Commercial-grade super-low glare, shallow recessed lensed LED luminaire is for retrofit/remodel projects where there is minimal plenum air-space in ceiling. Deeply recessed lens provides reduced glare and visual comfort.

Benefits

  • Deeply recessed lens and 25° visual cutoff for reduced glare

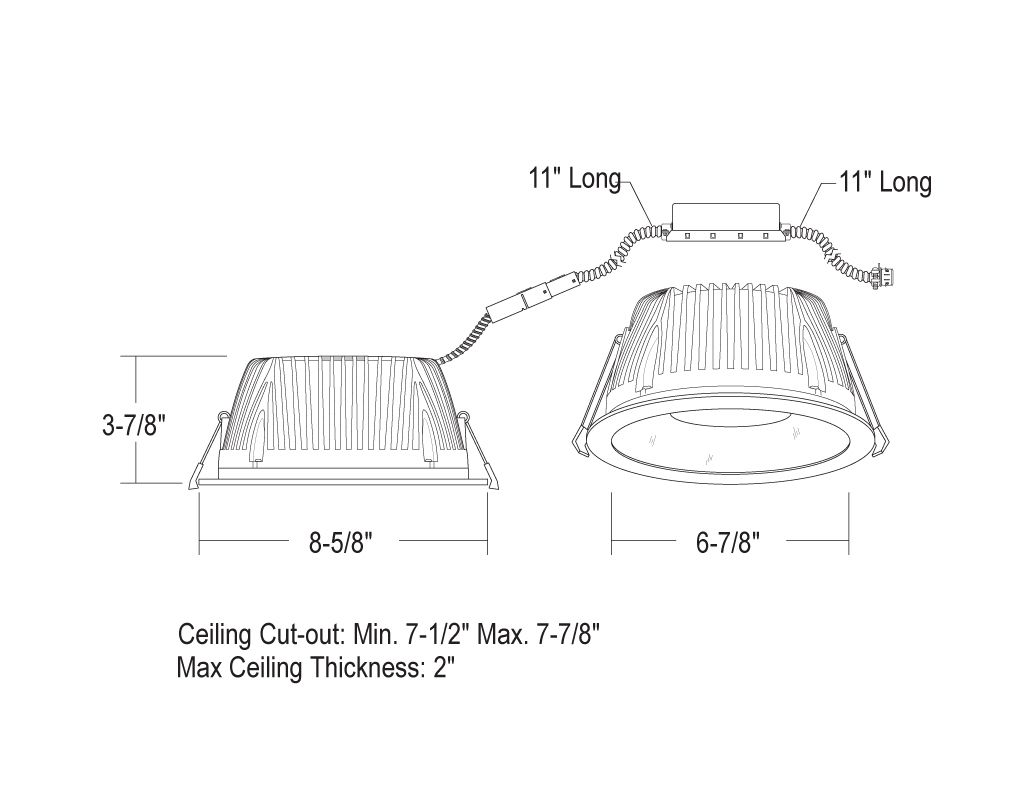

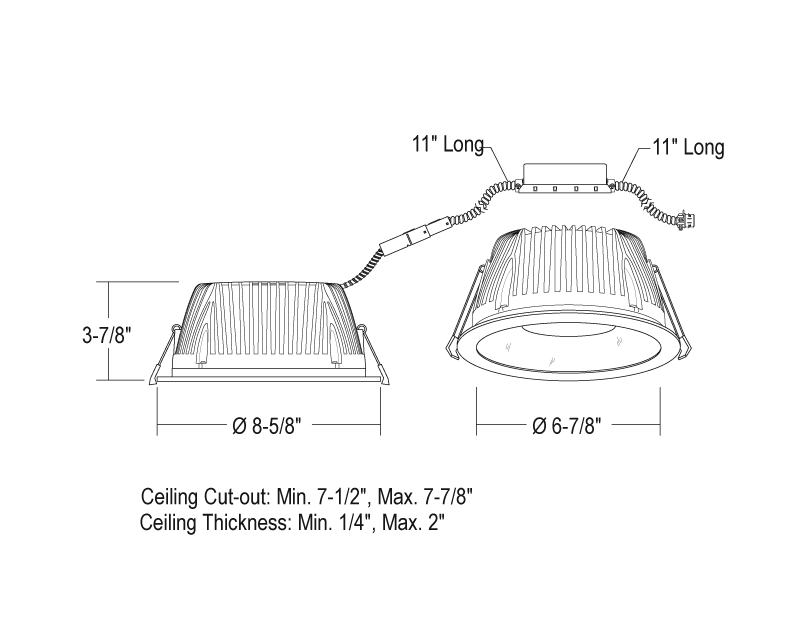

  • Shallow 3-7/8" depth for ceilings with minimal plenum air-space
  • New junction box option for remodels without frames
  • Non-conductive dead-front flanged option (-LENS) for wet locations
  • 83 CRI
  • Multiple Wireless Control Options

Available Features
?

  • Chicago Plenum
  • Damp Location
  • Emergency
  • ETL Listed
  • US Assembled
  • Wet Location
  • Ambient Lighting
  • Downlight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
  • 347V

Order Configurator

1 All drivers are 120V/277V unless otherwise noted.
2 Extended Lead Time. Consult Factory.
3 (ICA) is only available for CRTR68SHL10, CRTR8SHL12, and CRTR8SHL17. (CRTR8SHL24 are Non-IC rated.)
4 UE-D10-EM is not compatible with -EM or -EMAC or -EMAC347 or -GTD
5 Check Wiring Diagrams.
6 Special Order.
7 (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications.
