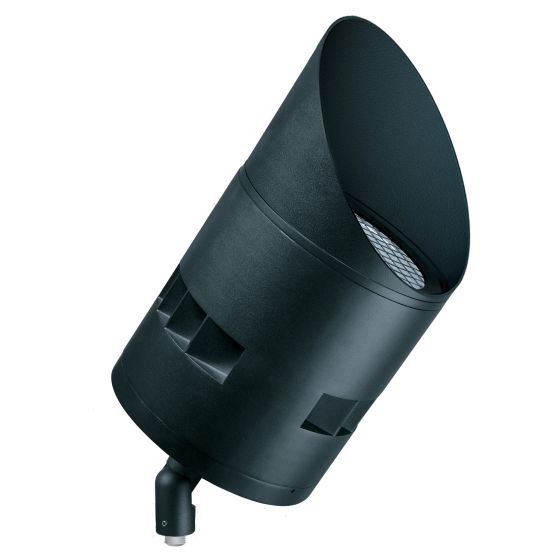

AG2380 : 8" Round Spot/Flood Light 2900lm-16,000lm (28W-160W)

8" Round Spot/Flood Light 2900lm-16,000lm (28W-160W) 8" Round Spot/Flood Light 2900lm-16,000lm (28W-160W)
8" Round Spot/Flood Light 2900lm-16,000lm (28W-160W)
8" Round Spot/Flood Light 2900lm-16,000lm (28W-160W) 8" Round Spot/Flood Light 2900lm-16,000lm (28W-160W) 8" Round Spot/Flood Light 2900lm-16,000lm (28W-160W) 8" Round Spot/Flood Light 2900lm-16,000lm (28W-160W)

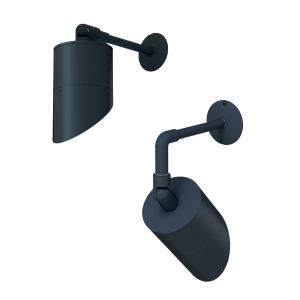

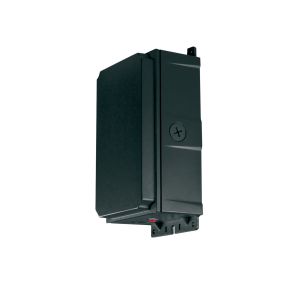

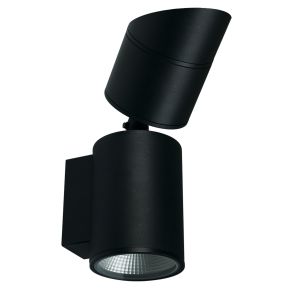

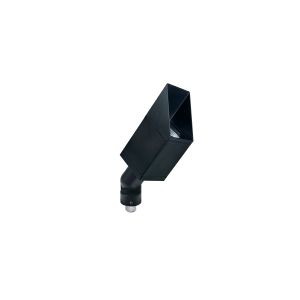

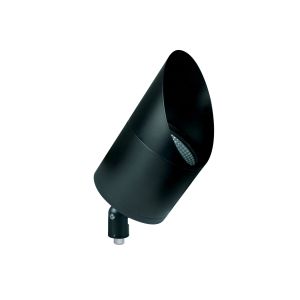

Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

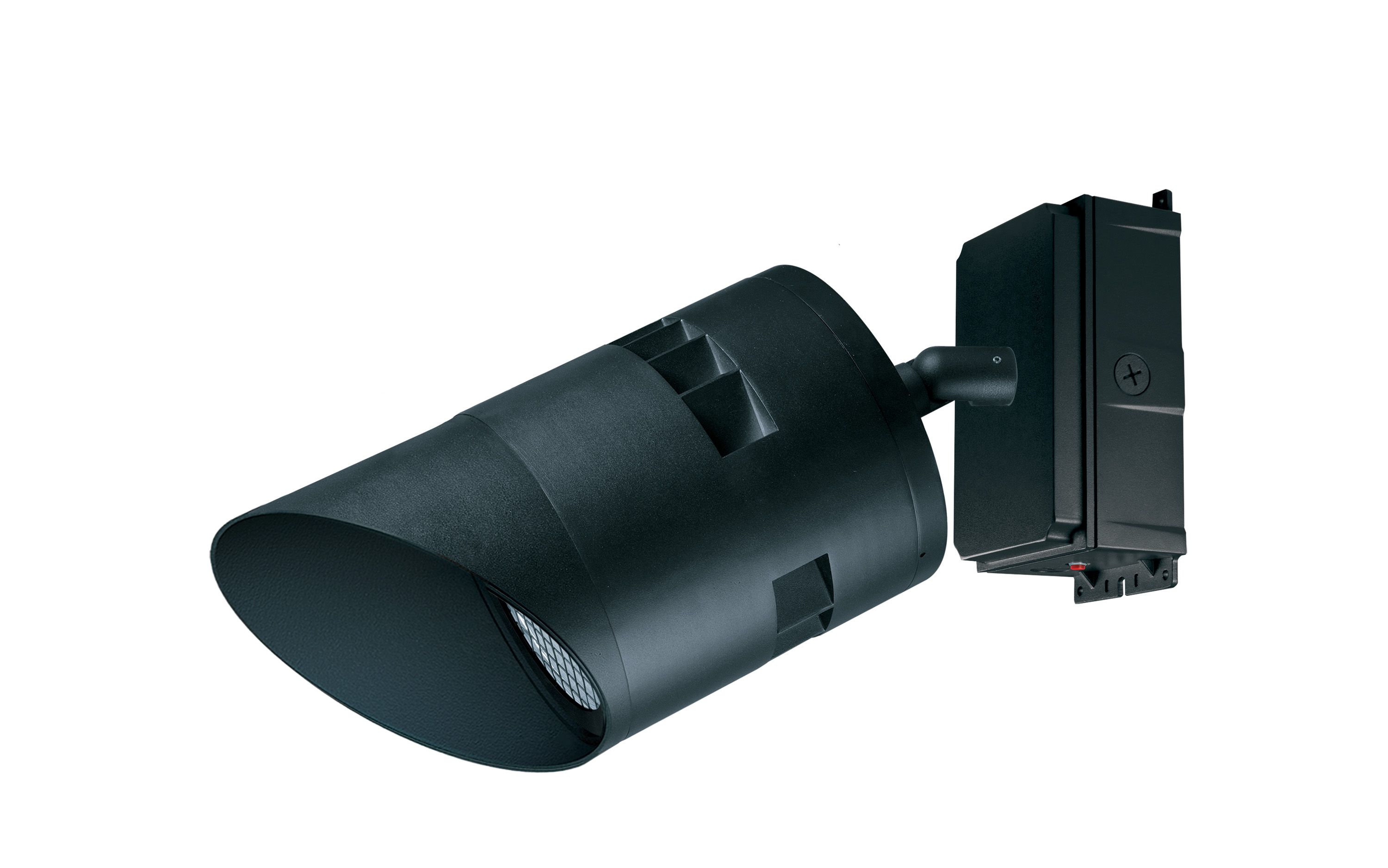

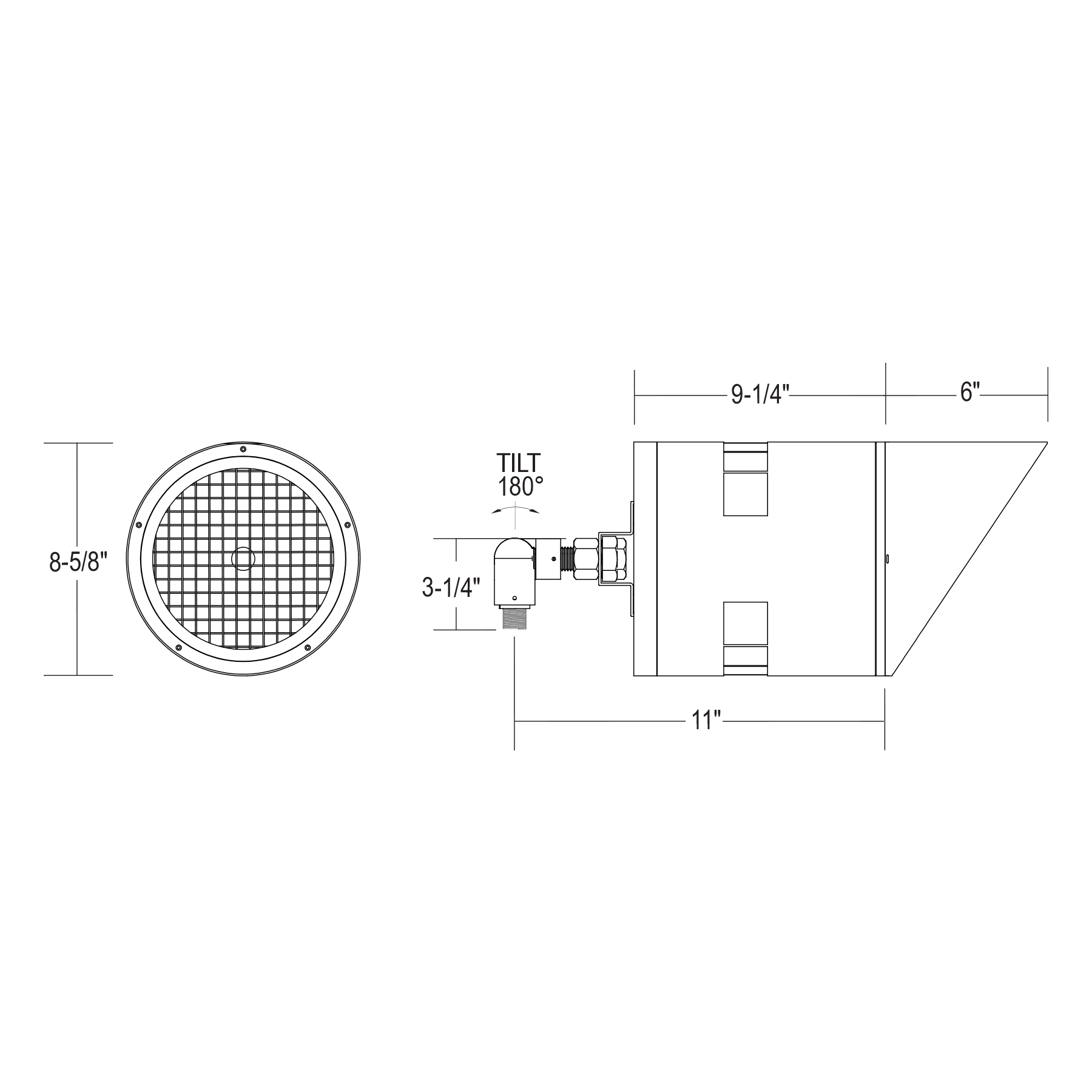

The AG series above-grade floodlight is suitable for surface ceiling, surface wall, or pendant stem mounts in both interior and outdoor settings. The die-cast joint allows for 180° tilt and 360° swivel adjustability to create several configurations.

Benefits

  • Expansive lumen range of 2,900lm (28W) to 16,000lm (160W)
  • Multiple Dimming Options with custom capabilities
  • Matching wall and ceiling mount profiles
  • 120V/277V Input options
  • Multiple Beam Spreads and Color Temperature
  • Weighs 12 lb
  • 90 CRI Standard
  • IP65
  • Multiple Wireless Control Options

Available Features
?

  • ETL Listed
  • Outdoor
  • US Assembled
  • Wet Location
  • Dedicated LED
  • Adjustable
  • Downlight
  • Uplight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 (UE-DUN) and (-DIN) not available with (-L050), (-L060), (-L090), (-L120), or (-L160).
2 Stem mounts can be adjusted in the field. See instructions.
3 (-TTW) Tunable White via two 0-10V dimming controls. 10-14 week lead time.
4 UE-DMX dimming via 0-10V to DMX converter.
5 5000K Color Temperature only available in 80 CRI.
6 (UE-D10P1) not available with (-L160) 16000lm (160W).
7 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult Factory.
8 (-B15) & (-B25) only available with (-L030), (-L040), (-L050), (-L060), and (-L070) Lumen packages.
9 Special Order. Minimum order quantity (MOQ), extended lead time may apply. Consult Factory.
10 Special Order. Must be ordered with -EMB-BLANK.

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.
