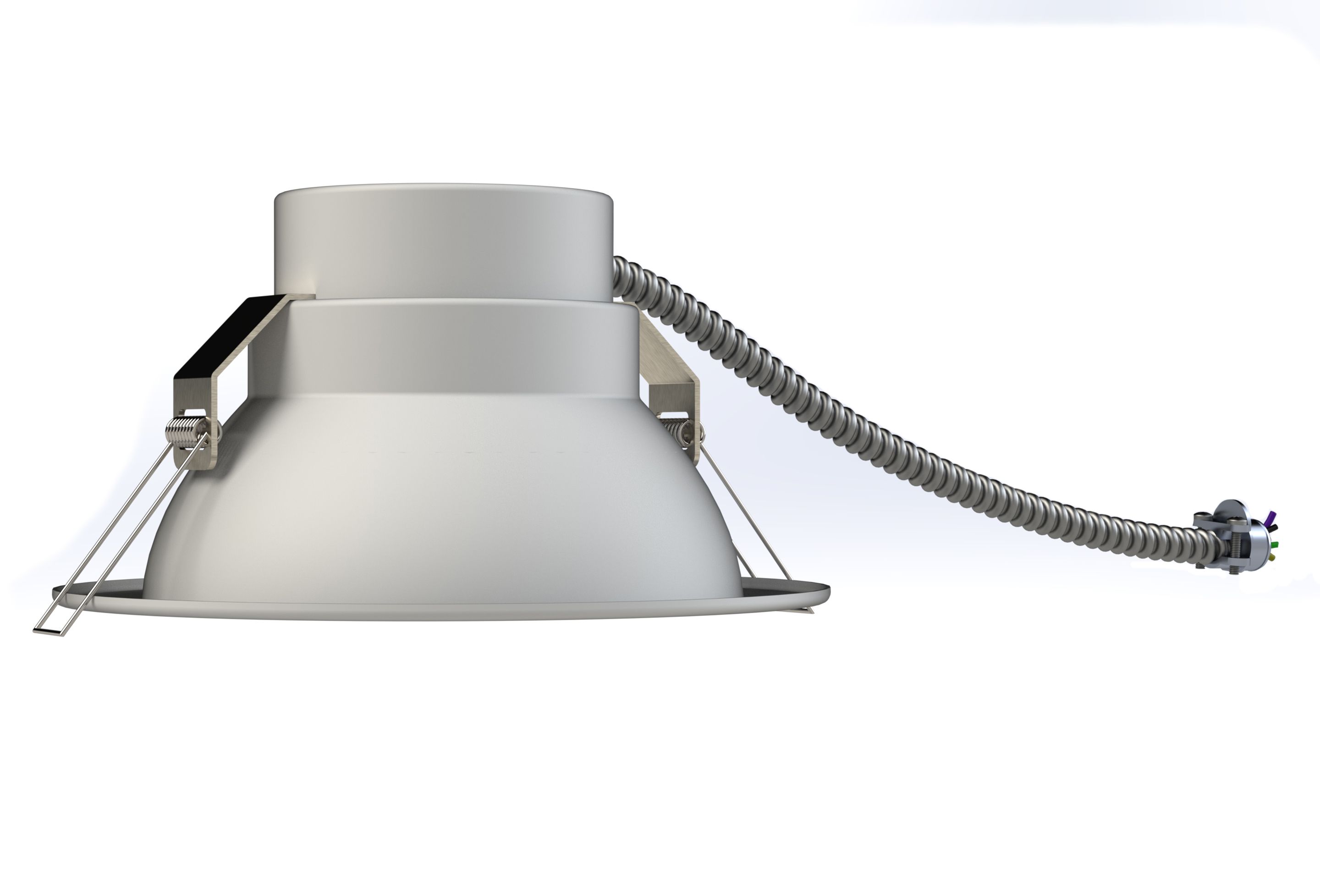

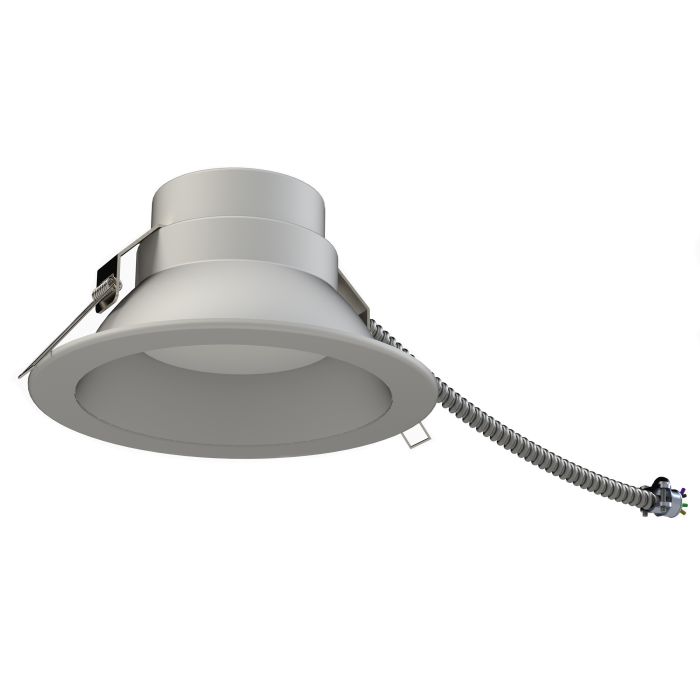

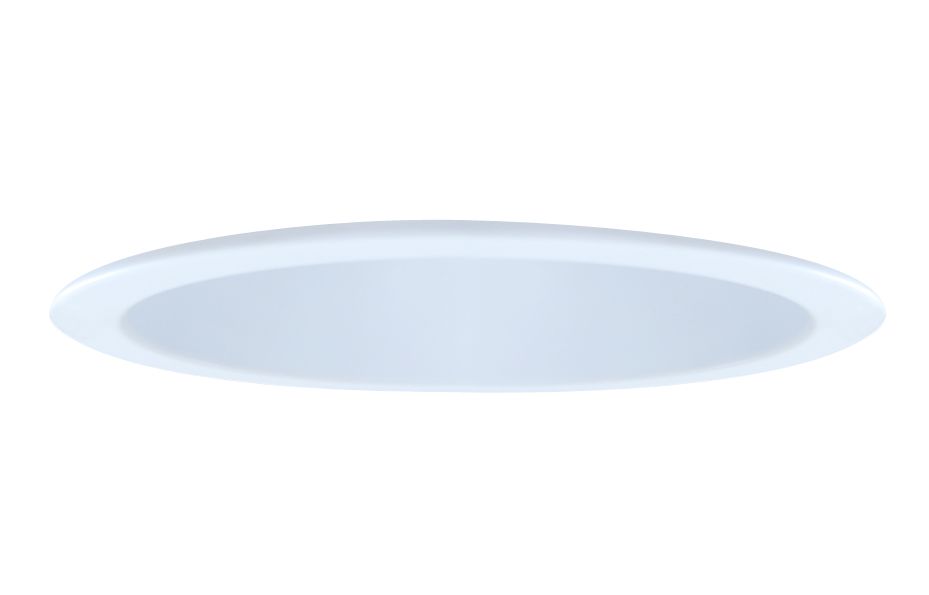

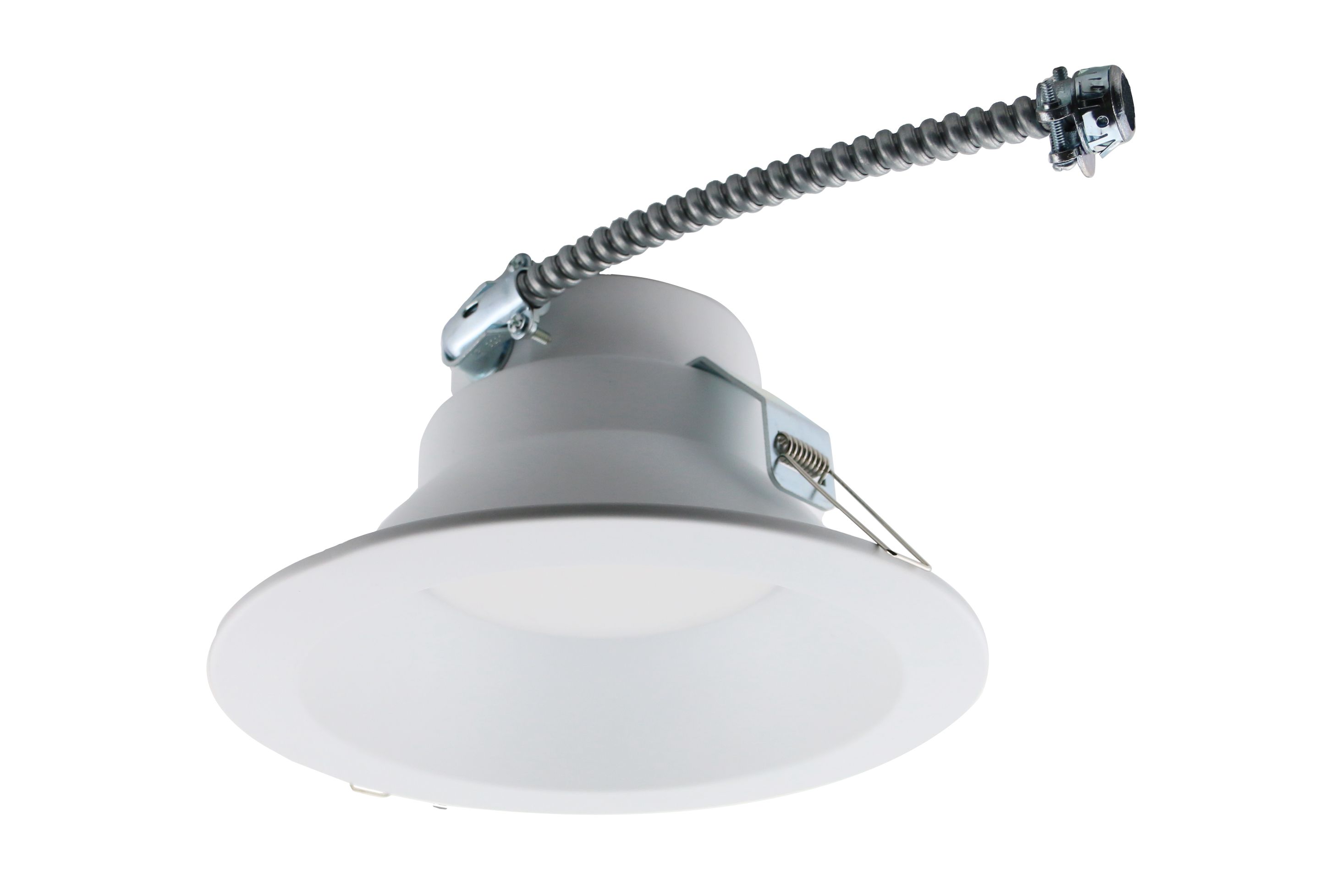

LRCLD9WWF340-R40UE-D10 : 8"/9" C • Series Shallow LED Retrofit (3800 Lumen)

8"/9" C • Series Shallow LED Retrofit (3800 Lumen)
8"/9" C • Series Shallow LED Retrofit (3800 Lumen) 8"/9" C • Series Shallow LED Retrofit (3800 Lumen) 8"/9" C • Series Shallow LED Retrofit (3800 Lumen) 8"/9" C • Series Shallow LED Retrofit (3800 Lumen) 8"/9" C • Series Shallow LED Retrofit (3800 Lumen) 8"/9" C • Series Shallow LED Retrofit (3800 Lumen) 8"/9" C • Series Shallow LED Retrofit (3800 Lumen) 8"/9" C • Series Shallow LED Retrofit (3800 Lumen)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

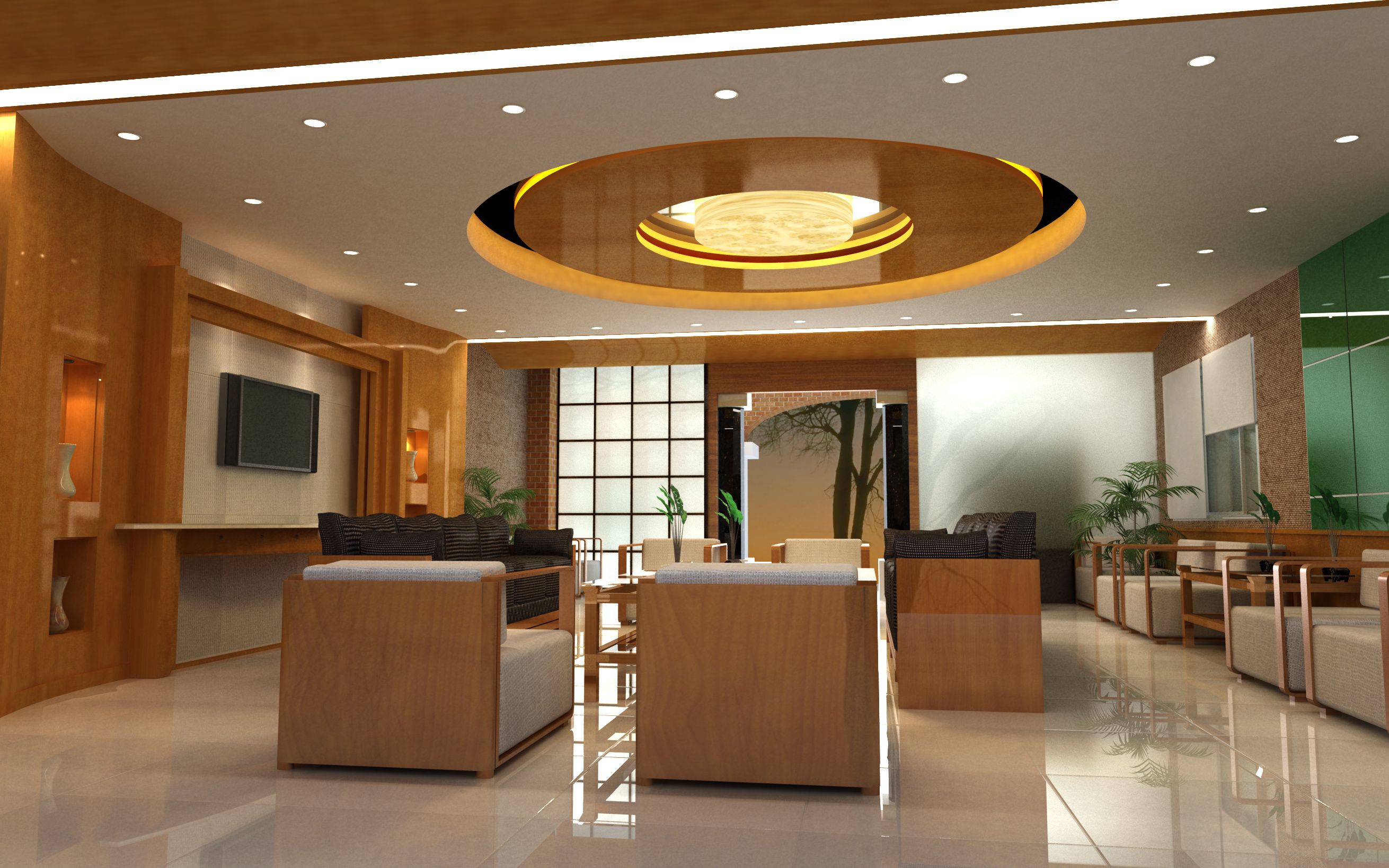

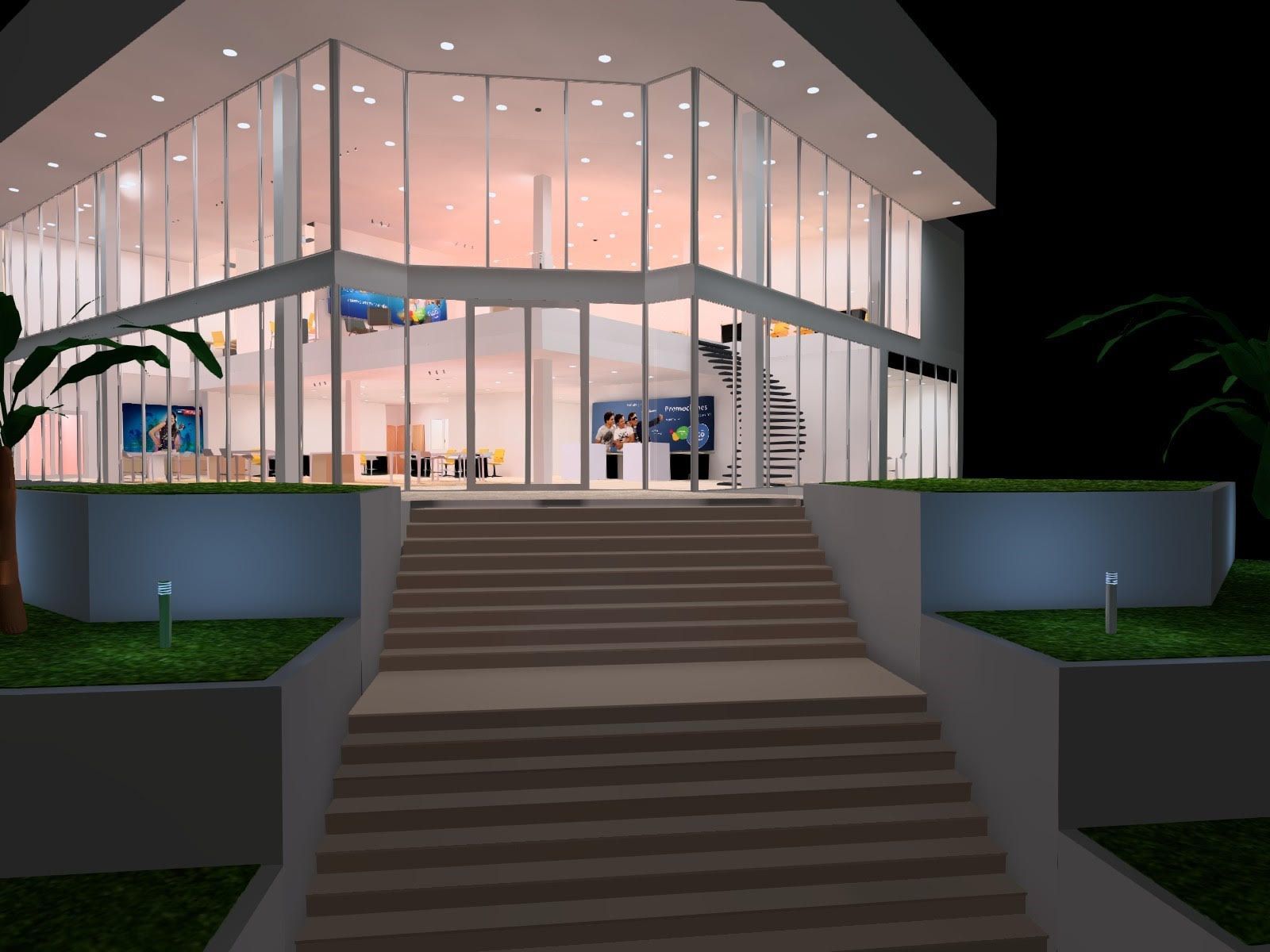

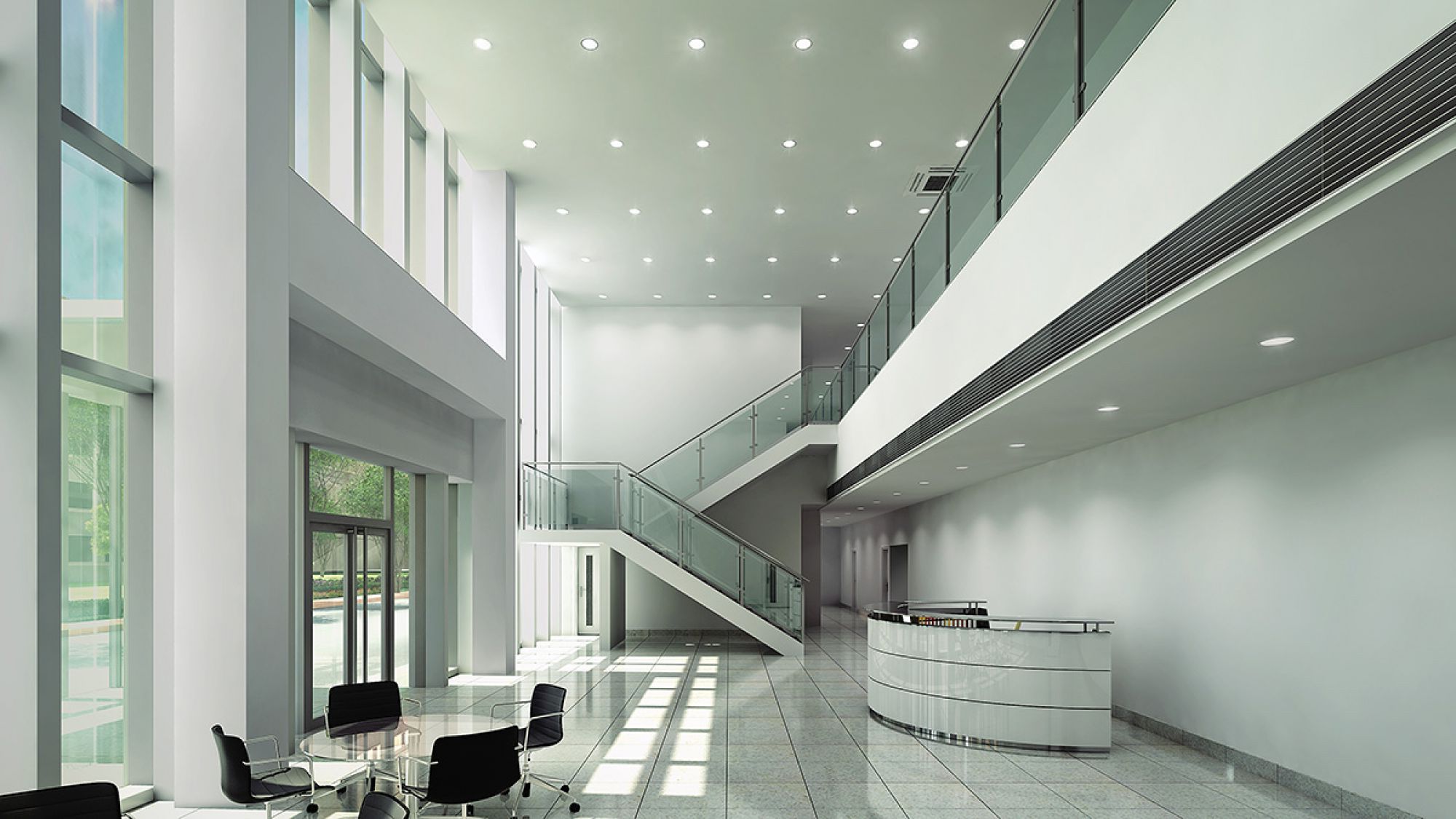

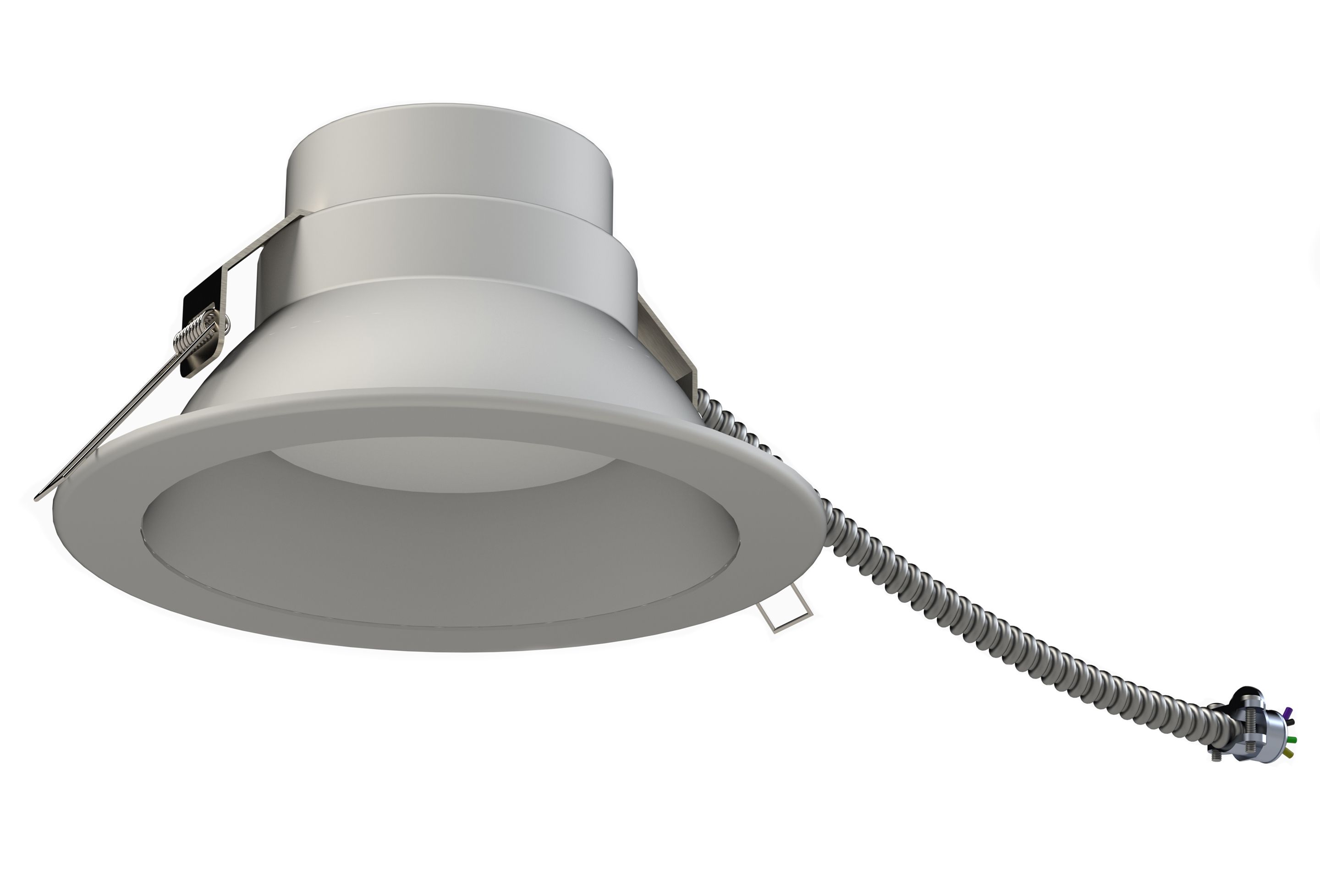

Architectural-grade shallow LED recessed downlight retrofit with omnidirectional lumen output similar to CFL downlights. Ideal for low to high ceiling heights in commercial applications that require smooth ambient lighting without sacrificing footcandles.

Trim is compatible with the following housings from others:
•Halo PD8V142E
•Lithonia 8HF 1/26-42TRP
•Lithonia CJ00265

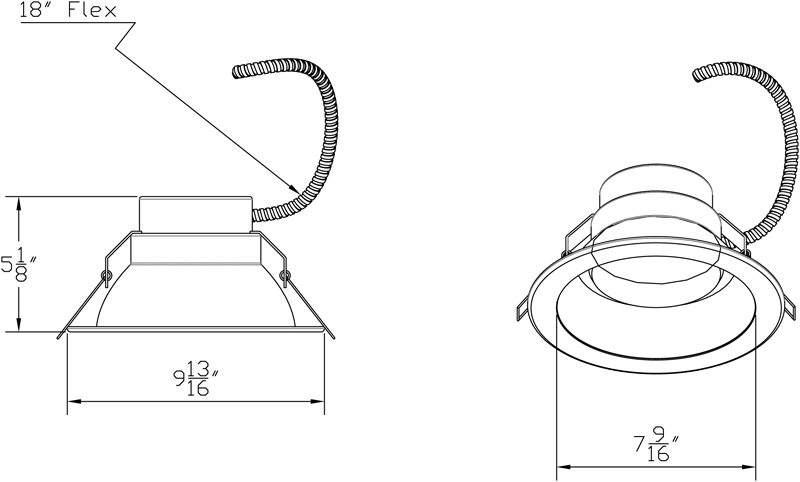

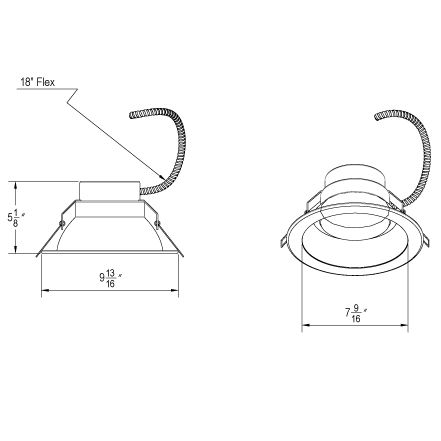

Ceiling Cut-Out Min: 7.625" (194mm)
Ceiling Cut-Out Max: 9.25" (235mm)
Ceiling Thickness Max: 2.125" (54mm)
Flange Diameter: 9.803" (249mm)

Benefits

  • Easy to install
  • 120V-277V Input
  • Fits Multiple Housing Sizes
  • Deep Regressed  LENS
  • Unified Light Output (No Visible LED's)
  • Conduit Knockout Fittings and Wiring Nuts Included
  • Pre-mounted steel spring clips secure trim to virtually all 8" frame-in housings
  • Fits up to 2.125" Ceiling Thickness

Available Features
?

Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Combined Spec Sheets

Dimming Diagrams

Ready2Ship Items

  • LRCLD9WWF340-R40UE-D10
