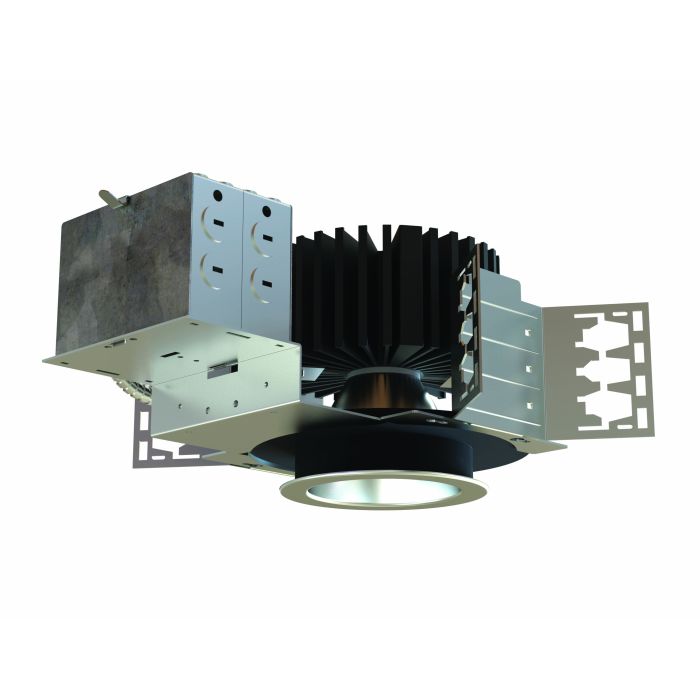

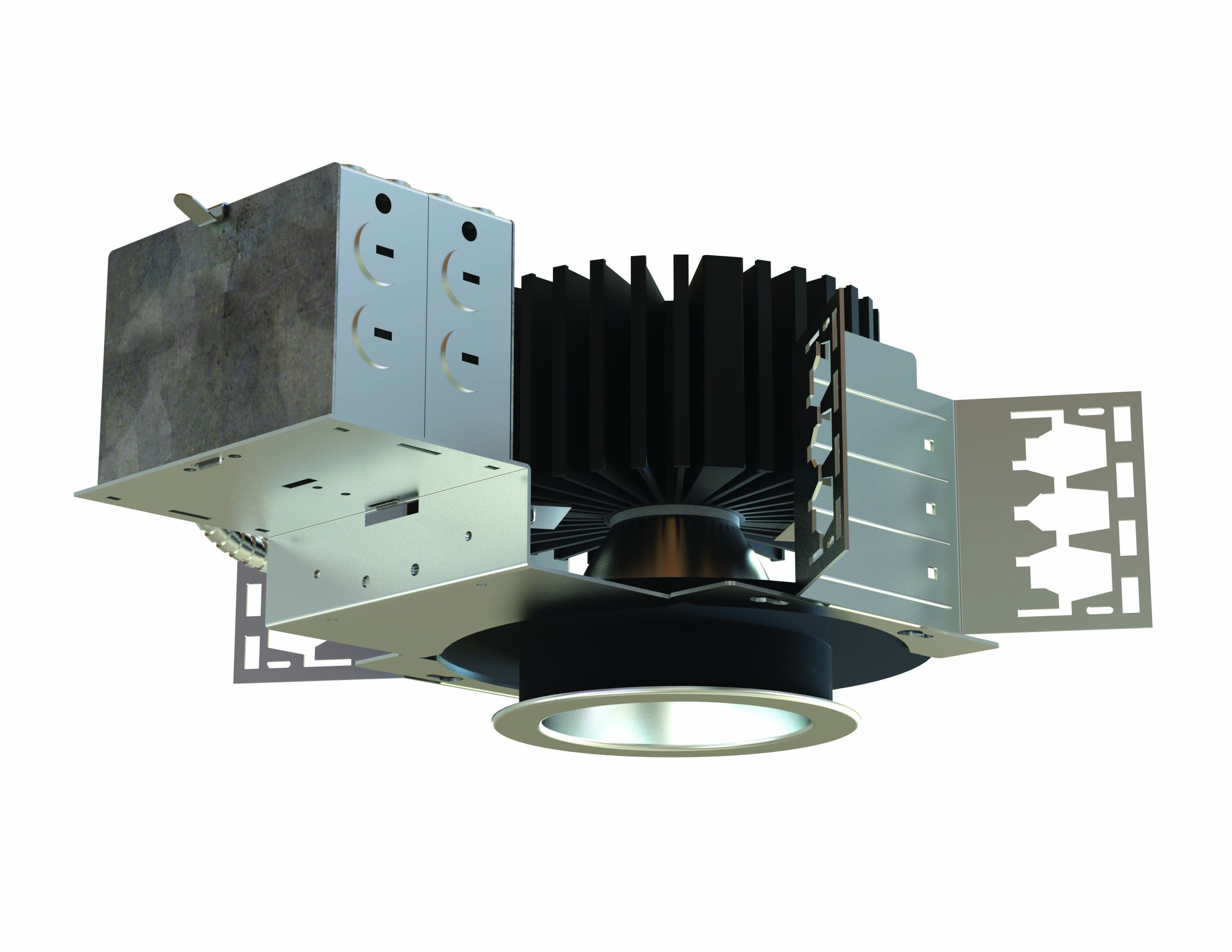

LHABLD4 : 4" Round LED Downlight - 1000lm - 7000lm

4" Round LED Downlight - 1000lm - 7000lm 4" Round LED Downlight - 1000lm - 7000lm
4" Round LED Downlight - 1000lm - 7000lm
4" Round LED Downlight - 1000lm - 7000lm 4" Round LED Downlight - 1000lm - 7000lm 4" Round LED Downlight - 1000lm - 7000lm
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

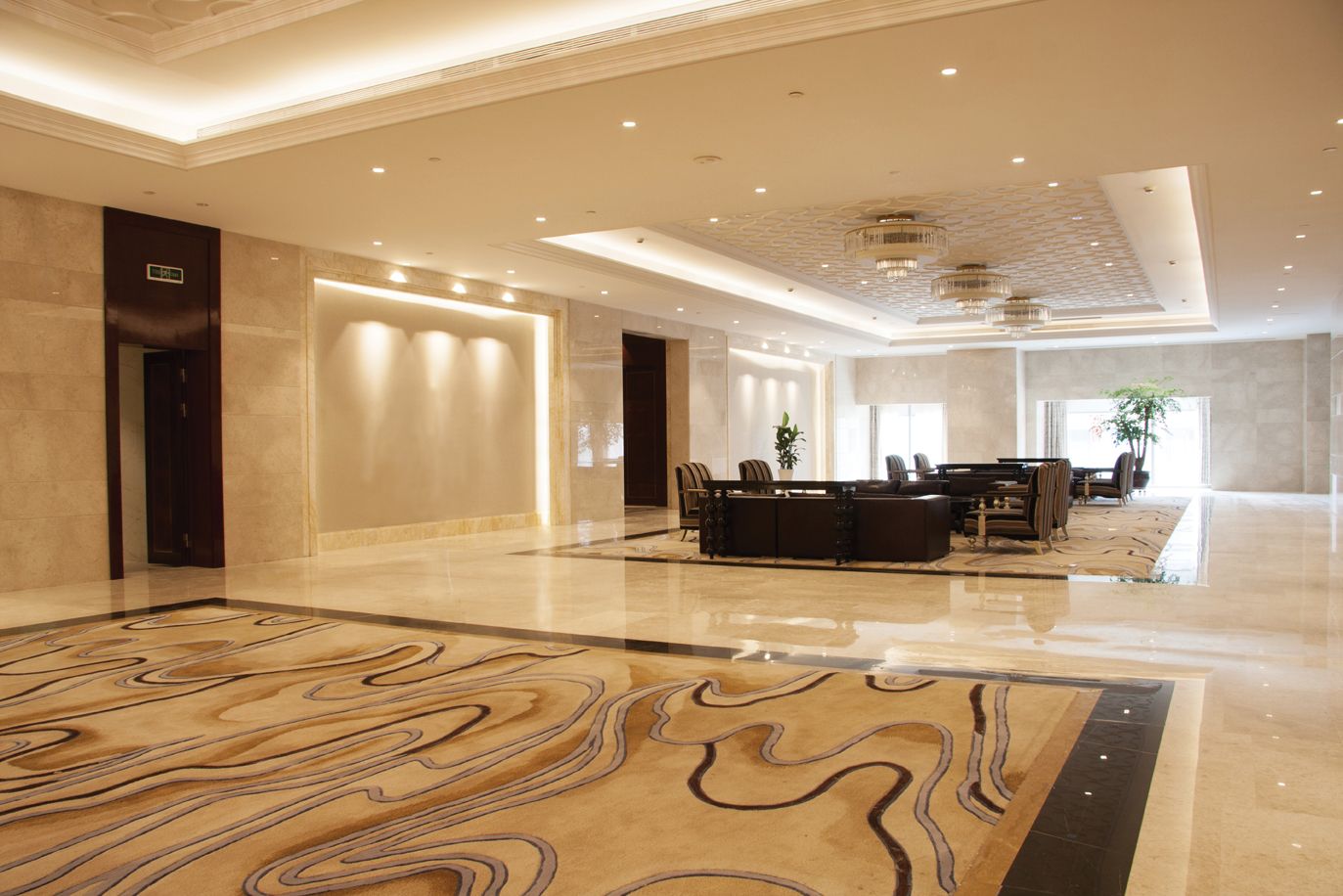

The 4" LumenBlast housing is designed for medium to high ceiling heights and is available as a fixed downlight. With four trim options and four trim finishes, the luminaire offers the versatility and high lumen output that is ideal for classrooms, office lobbies and retail applications.

Benefits

  • Illuminate up to 70' ceilings
  • Four trim Finishes
  • Low glare design
  • Highly efficient COB (Chip on Board) LED
  • Multiple Wireless Control Options

Available Features
?

  • Emergency
  • ETL Listed
  • US Assembled
  • Dedicated LED
  • Downlight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 All drivers are 120V/277V unless otherwise noted.
2 Not available for 1000lm - 3500lm.
3 Warm Dimming Only available for 1000lm & 1500lm options.
4 Tunable White only available with 0-10V signal via “UE-D10P1” option or DMX signal via “UE-DMX” option for 1500lm & 3500lm option only.
5 Check wiring diagrams.
6 Not compatible to UE-DUN Driver.
7 Special Order.
8 (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications.

Dimming Diagrams
