LHAJLD4 : 4" Round LED Adjustable Downlight - 1500lm - 5000lm

4" Round LED Adjustable Downlight - 1500lm - 5000lm 4" Round LED Adjustable Downlight - 1500lm - 5000lm

Description

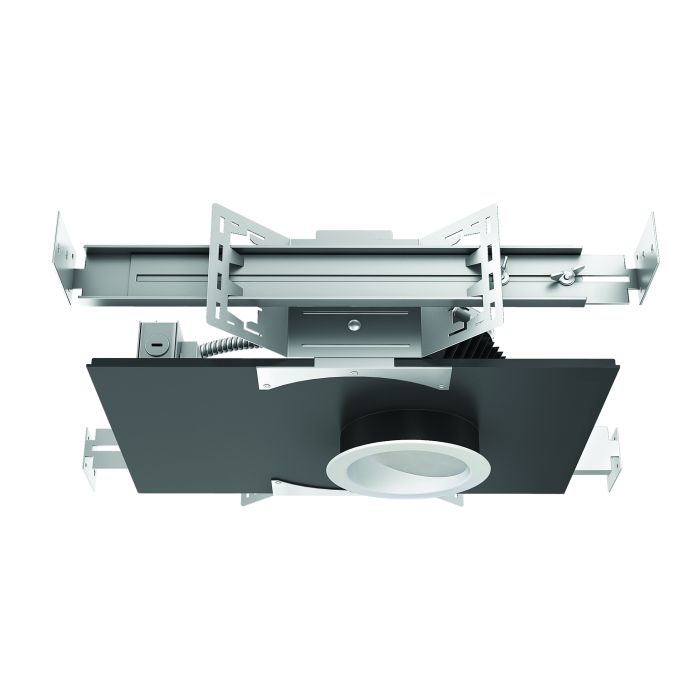

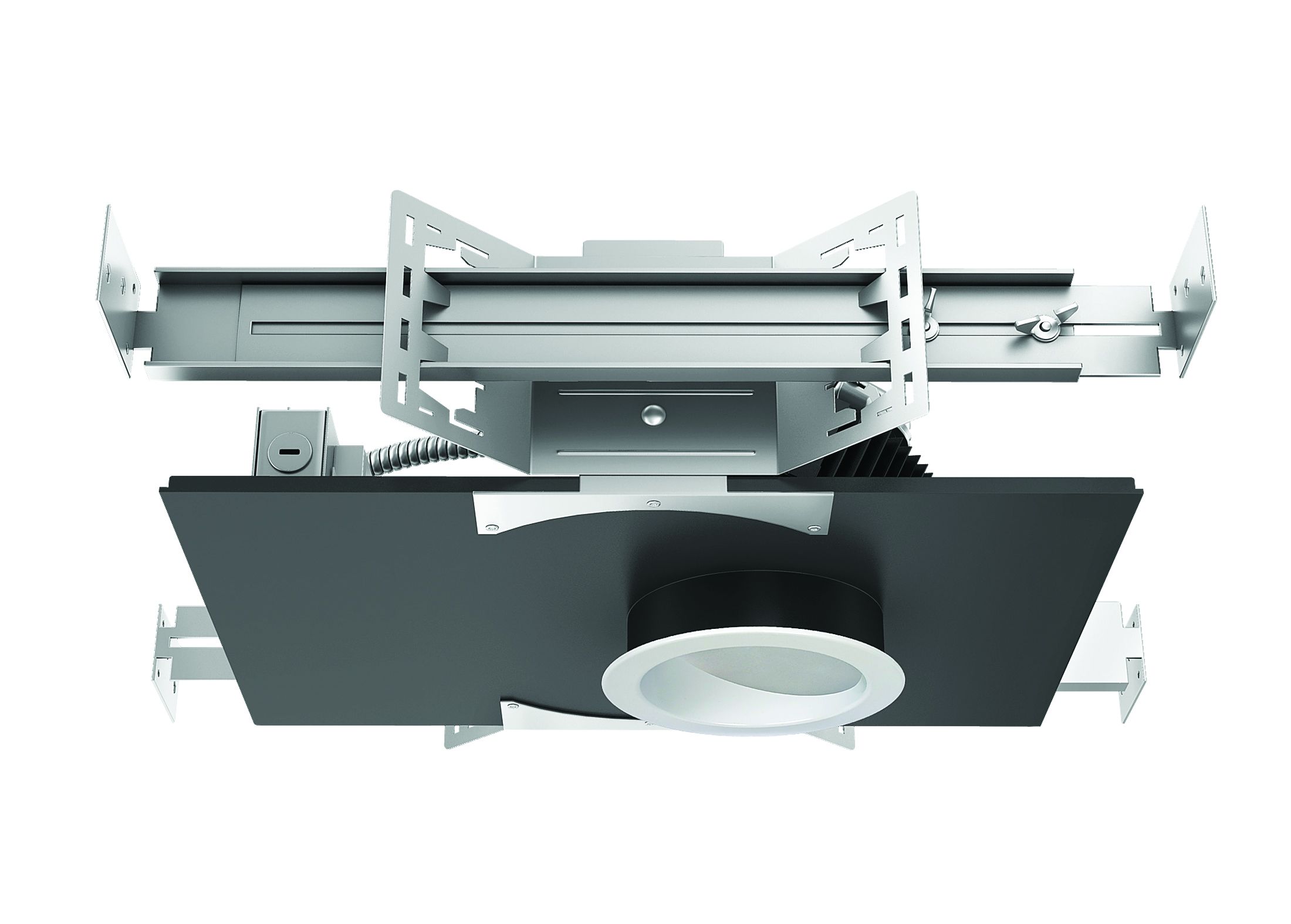

Architectural 4" Adjustable Round LED Housings are designed for medium to high ceiling heights in retail, hospitality, commercial and architectural applications. An advanced ‘hot-aiming’ mechanism allows precise and lockable positioning of the square trim prior to finishing the ceiling. Post-installation adjustment of the beam tilt is possible from below the fixture.

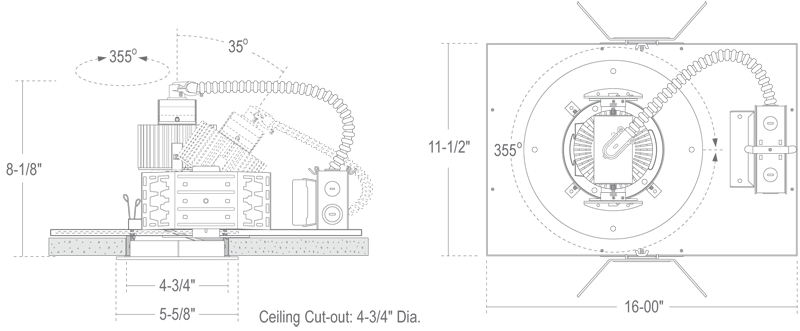

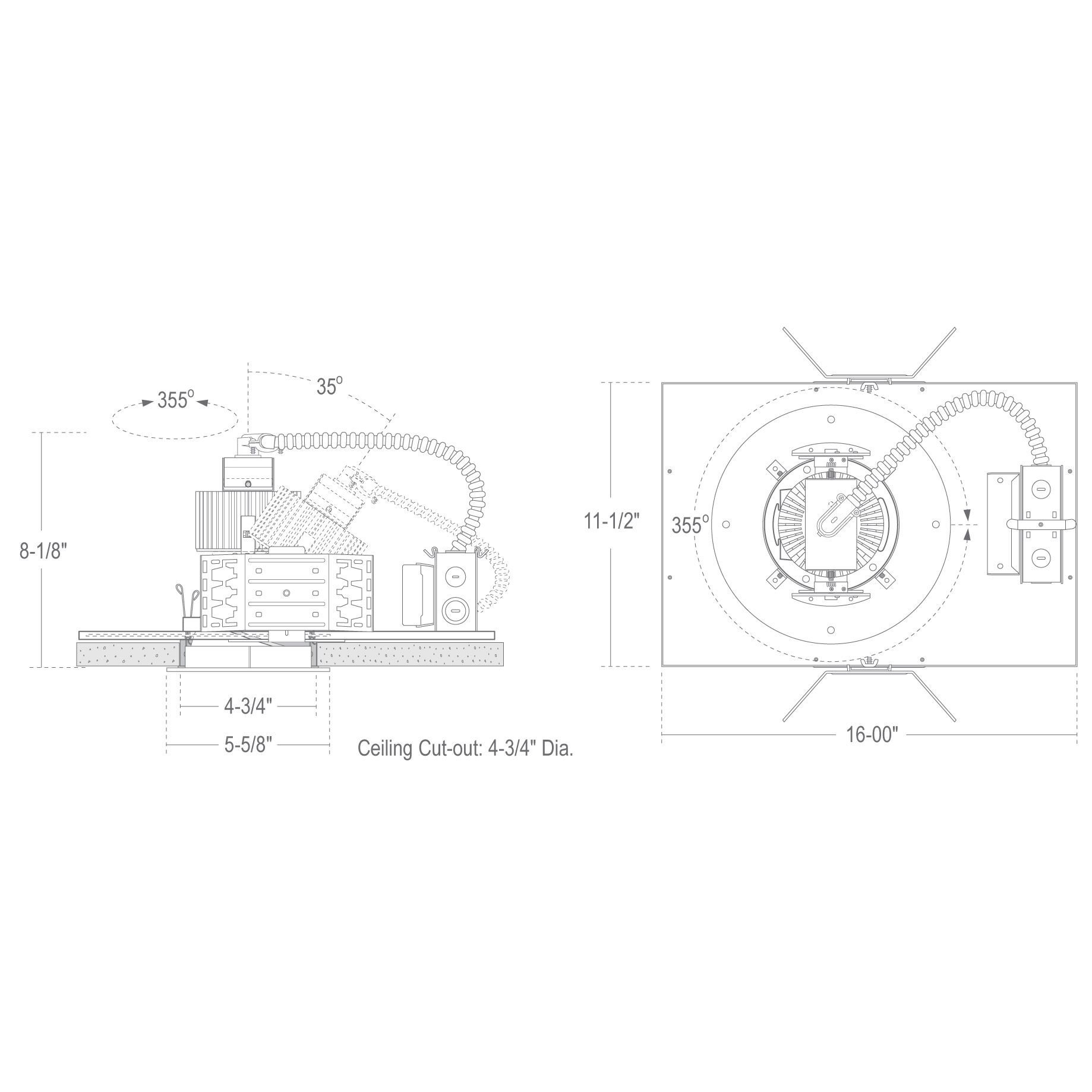

Collar bracket provides 30º of rotation, marked in 5º increments, for positioning before drywall installation. Lamp holder assembly allows 35º tilt.

Benefits

  • Features Cree TrueWhite® Technology
  • Functions as a Downlight, Wall Wash or Accent Light
  • Internal adjustments allow precise aiming of the beam
  • Round trim collar rotates to allow exact alignment prior to ceiling finish
  • Available with DMX Dimming. Consult Factory
  • Multiple Wireless Control Options

Available Features
?

  • Damp Location
  • Emergency
  • ETL Listed
  • US Assembled
  • Sloped Ceiling
  • Dedicated LED
  • Adjustable
  • Ambient Lighting
  • Downlight
  • Wall Wash
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
  • 347V

Order Configurator

1 All drivers are 120V/277V unless otherwise noted.
2 Warm Dimming only available for 1500lm, 2000lm & 2500lm options.
3 Tunable White only available with 0-10V signal via “UE-D10P1” option or DMX signal via “UE-DMX” option for 2000lm, 3000lm & 3500lm option only.
4 Check wiring diagrams.
5 Special Order.
6 (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications.
