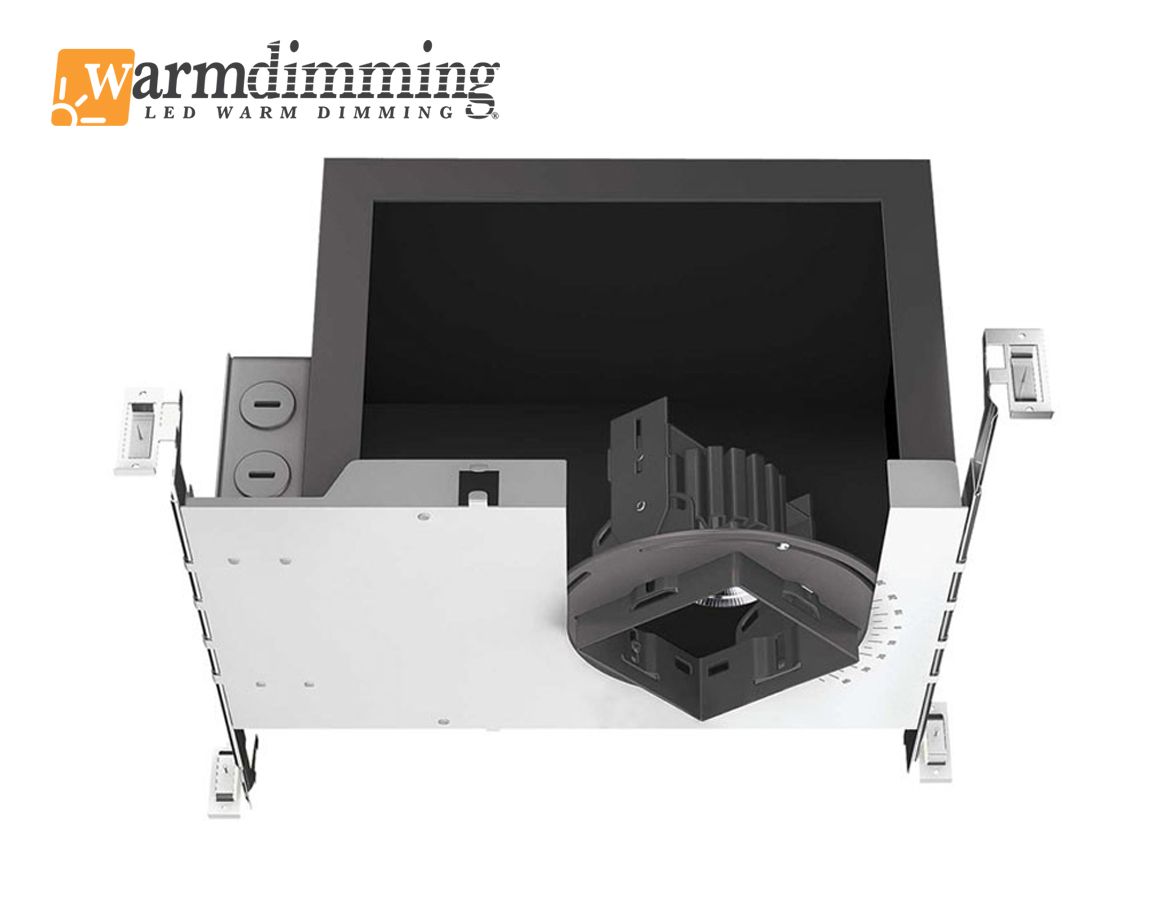

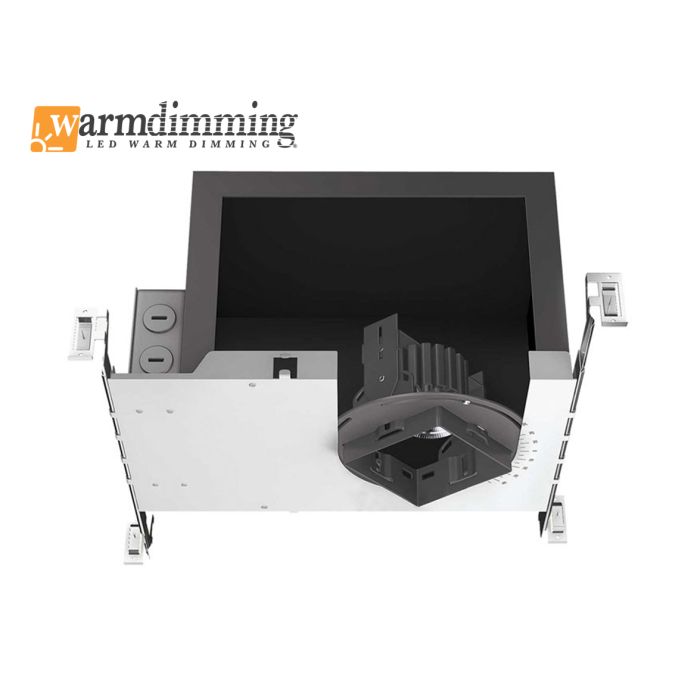

LHQLD3 : 3" 12W IC Rated/600Lm & 19W Non-IC Rated /1,200Lm Mini-Arc Square LED Housing (Dimmable)

3" 12W IC Rated/600Lm & 19W Non-IC Rated /1,200Lm Mini-Arc Square LED Housing (Dimmable)
3" 12W IC Rated/600Lm & 19W Non-IC Rated /1,200Lm Mini-Arc Square LED Housing (Dimmable) 3" 12W IC Rated/600Lm & 19W Non-IC Rated /1,200Lm Mini-Arc Square LED Housing (Dimmable) 3" 12W IC Rated/600Lm & 19W Non-IC Rated /1,200Lm Mini-Arc Square LED Housing (Dimmable)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Description

High Efficacy Luminaire Certified by the California Energy Commission (CEC) as Title 24 / JA8 Compliant.

Benefits

  • New Highly Adjustable 3" Square LED housing works with LRQ3 and LRXQ3 Phantom Trims
  • 12W delivers 600 lumens, 19W delivers 1200 lumens
  • 120V/277V Option
  • Incandescent/ELV Dimming Option
  • 0-10V Dimming Option
  • Lutron® HiLume 1% Dimming Option
  • Remote emergency battery back-up option
  • Housing includes LED and aiming mechanism
  • Available with DMX Dimming. Consult Factory
  • Available with an Integral Emergency Switch. Consult Factory.
  • Multiple Wireless Control Options

Available Features
?

  • Damp Location
  • Emergency
  • ETL Listed
  • IC Rated
  • US Assembled
  • Title 24
  • Dedicated LED
  • Adjustable
  • Downlight
  • Wall Wash
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

1 Special Order.
2  (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications
* Extended lead time may apply. Consult factory.
** Only for 12W.
^ Not rated for Insulation Contact.
+ Above ceiling access required for EM option.
++ Extended lead may apply for quantities over 100.

Title 24/JA8 Compliant Items

  • LHQLD3_-T27
  • LHQLD3_-T30
  • LHQLD3_-T40

Combined Spec Sheets

Dimming Diagrams
